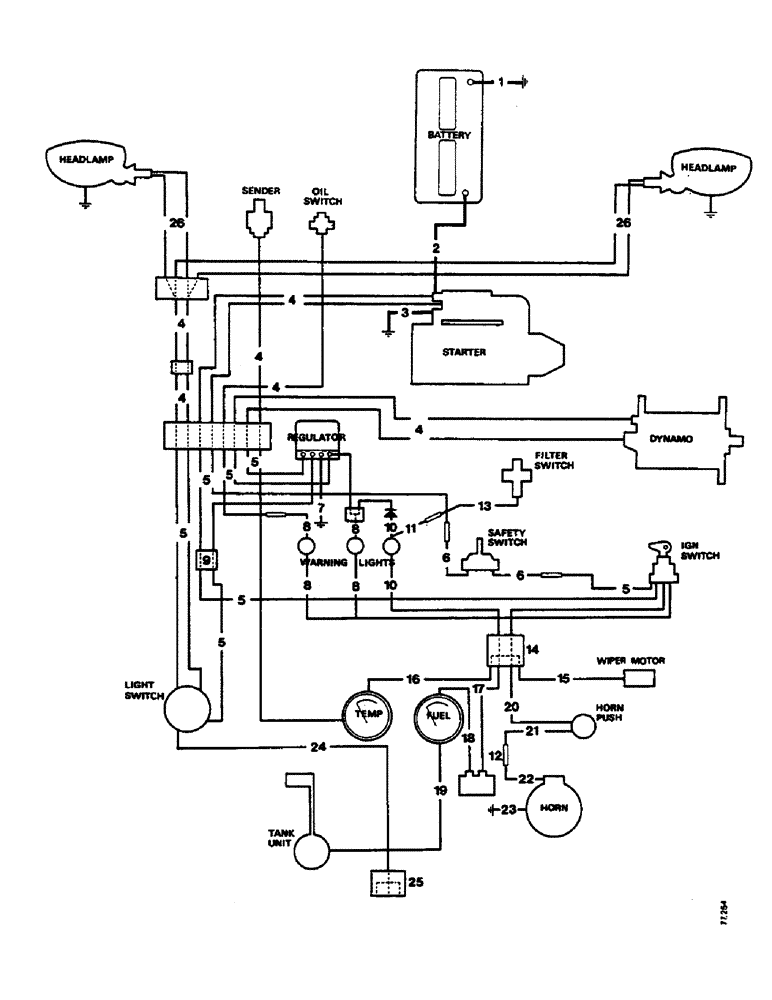

Запчасти Case IH 885 (M22) - ELECTRICAL EQUIPMENT, ELECTRICAL WIRING, STARTING AND HEADLAMPS 885 TRACTORS, UP TO S/N 633680 (06) - ELECTRICAL SYSTEMS

1

K913945

CABLE

, Serial Range: battery-earth

1шт.

K602840

SCREW

set, 5/16 UNC x 1/2 in

1шт.

K11517

WASHER

spring, 5/16 in

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 in

1шт.

2

K947406

CABLE

, Serial Range: battery-starter

1шт.

K15518

CLAMP

CLIP

1шт.

K87560

CONTACT HOUSING

COVER rubber, starter terminal

1шт.

3

K918762

CABLE

, Serial Range: starter-earth

1шт.

4

K920911

HARNESS

wiring, with half 8-way connector

1шт.

K921276

CONDUIT

1шт.

K89523

BRACKET

CLIP

1шт.

K602738

SCREW

set, 1/4 UNC x 7/16 in

1шт.

K19480

SPRING WASHER

spring, 1/4 in

1шт.

K82317

GROMMET

11/16 in

2шт.

5

K920912

HARNESS

wiring, with half 8-way connector

1шт.

K19929

BUCKLE

CLIP buckle, harness to tank support.

1шт.

K11109

NUT

2 BA, harness to tank support.

1шт.

K626340

RING

WASHER spring, 3/16 in, harness to tank support.

1шт.

6a

K945210

WIRE HARNESS

HARNESS, starter to safety switch, 43 in (TB55 Electrical)

1шт.

6b

K940413

HARNESS

starter safety switch, 48 in

1шт.

K940411

CONDUIT, switch harness

1шт.

K945209

COVER

PLATE cover, switch harness

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW set, 1/4 UNC x 1/2 in, plate to gearbox cover.

4шт.

K626341

SPRING WASHER

WASHER spring, 1/4 in, plate to gearbox cover.

4шт.

7

K924142

CABLE

LEAD, Serial Range: regulator-earth

1шт.

K925268

BLADE

connector, earth lead

1шт.

8

K945366

HARNESS

wiring, instrument panel

1шт.

9

K86230

CONNECTOR, ELEC

CONNECTOR double

2шт.

10

K921439

HARNESS

wiring, filter warning lamp

1шт.

11

K923724

ELECTRICAL WIRE

LEAD, warning, Serial Range: lamp-connector

1шт.

12

K67916

ELEC CONNECTOR

CONNECTOR single

1шт.

13

K923723

NO LONGER SERVICED

LEAD, connector to filter switch

1шт.

K621665

CLIP

lead to PTO case

2шт.

14

K925309

CONNECTOR, ELEC

CONNECTOR four-way

1шт.

15

K945369

LEAD, 4-way connector to wiper motor connector

1шт.

16

K921128

ELECTRICAL WIRE

LEAD, connector to temperature gauge

1шт.

17

K945841

ELECTRICAL WIRE

LEAD, connector to voltage stabilizer

1шт.

18

K920915

NO LONGER SERVICED

LEAD, voltage stabiliser to fuel gauge

1шт.

19a

K946161

NO LONGER SERVICED

LEAD, fuel gauge to tank unit, topmounted tank unit (TB134 Engine)

1шт.

19b

K920914

ELECTRICAL WIRE

LEAD, fuel gauge to tank unit, sidemounted tank unit

1шт.

20

K921128

ELECTRICAL WIRE

LEAD, connector to horn push

1шт.

21a

K946074

ELECTRICAL WIRE

LEAD, horn push to connector (TB134 Engine)

1шт.

22

K946075

NO LONGER SERVICED

LEAD, connector to horn (TB134 Engine)

1шт.

K621672

HOSE CLAMP

CLIP buckle, lead to throttle control (TB134 Engine)

3шт.

K621702

CLIP

buckle, lead to choke cable (TB134 Engine)

2шт.

21b

K920916

SPARE PART

LEAD, horn, Serial Range: push-horn

1шт.

23

K908902

WIRE

LEAD, Serial Range: horn-earth

1шт.

24

K923775

ELECTRICAL WIRE

LEAD, switch to rear lamps

1шт.

25

K908905

CONNECTOR, ELEC

CONNECTOR three-way, side/rear lamps

1шт.

26a

K921072

HARNESS

LEAD, connector to headlamps (outboard headlamps)

1шт.

K903822

WASHER

CLIP, leads to bonnet (outboard headlamps)

4шт.

26b

K921073

ELECTRICAL WIRE

LEAD, connector to headlamps (inboard headlamps)

1шт.

K919114

CLIP

leads to bonnet (inboard headlamps)

6шт.
