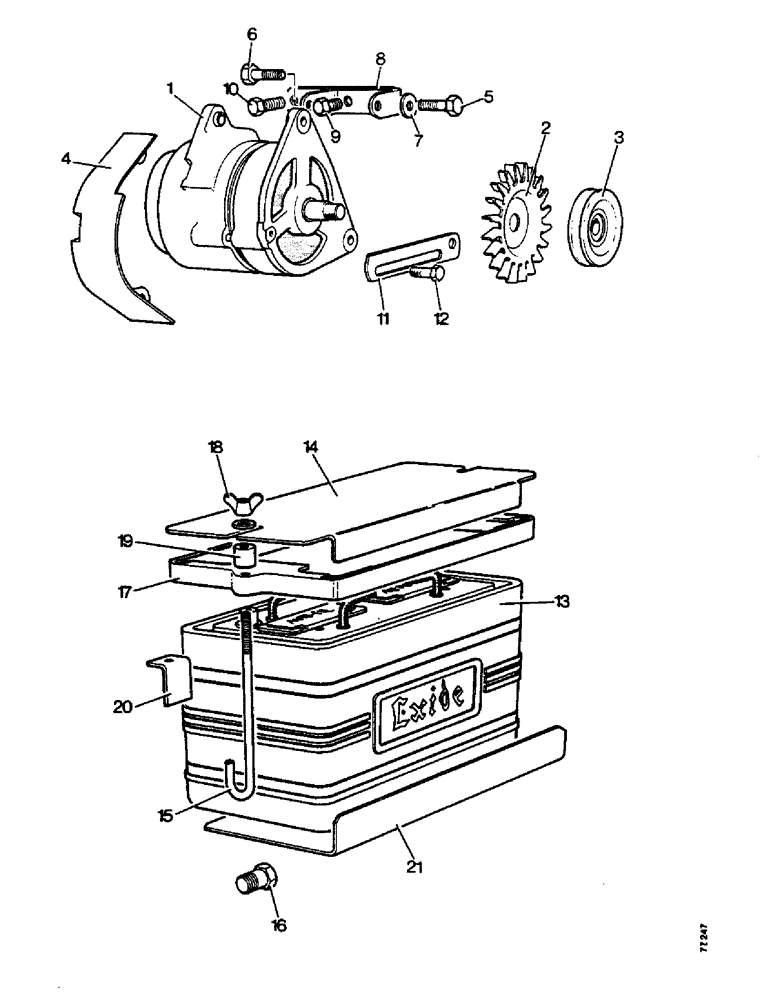

Запчасти Case IH 885 (M06) - ELECTRICAL EQUIPMENT, ALTERNATOR AND BATTERY, 885 TRACTORS, S/N 633680 AND AFTER (06) - ELECTRICAL SYSTEMS

1

K925009

ALTERNATOR

ALTERNATOR, (Lucas 23623)

1шт.

1

K956426

ALTERNATOR

Alternator

1шт.

1

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

1

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

2

K942129

FAN

FAN, alternator

1шт.

3

K942045

PULLEY

PULLEY, alternator

1шт.

4

K942117

GUARD

GUARD, fan

1шт.

5

K600359

BOLT

BOLT, 5/16 UNC x 1-1/4 in

1шт.

6

K600365

BOLT

BOLT, 5/16 UNC x 1-1/4 in

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16 UNC, alternator to bracket

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.

7

K626916

WASHER

WASHER, special 5/16 in

1шт.

8

K947375

SUPPORT

SUPPORT BRACKET

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Bracket to cylinder block Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, bracket to cylinder block

2шт.

10

K602902

SCREW

SETSCREW, 3/8 UNC x 3/4 in, bracket to cylinder block

1шт.

11

K950495

ADJUSTER

ADJUSTER STRAP, replaces K942044

1шт.

12

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in

1шт.

K626916

WASHER

WASHER, 5/16 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

13a

K907789

BATTERY

BATTERY, 12 volt, (Exide 6/TXMZ15L) (diesel)

1шт.

14a

K947398

COVER

COVER, battery

1шт.

13b

K923878

BATTERY, 12 volt, (Exide 6/TXAZ11L) (gasoline)

1шт.

14b

K947398

COVER

COVER, battery

1шт.

15a

K948870

STUD

CLAMPING STUD, 1/4 UNC x 6-1/2 in, battery

2шт.

16

K948933

STUD

BOLT SPECIAL, 5/8 UNC battery clamp

2шт.

17a

K947080

FRAME

CLAMP, cover (diesel)

1шт.

17b

K948934

CLIP

CLAMP, cover (gasoline)

1шт.

K19470

WASHER

WASHER, 1/4 in

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

18

K607200

NUT

WING NUT, 1/4 UNC

2шт.

13c

K929951

SPARE PART

BATTERY, 12 volt, heavy duty (Exide 6/RHAZ17R)

1шт.

14c

K948699

COVER

COVER, battery, heavy duty

1шт.

15b

K948941

STUD

CLAMPING STUD, 1/4 UNC x 9-5/8 in, heavy duty

2шт.

19

K948524

BUSHING

DISTANCE PIECE, heavy duty

2шт.

K607043

NUT

NUT, 1/4 UNC, heavy duty battery to frame (diesel)

2шт.

20

K923772

PACKING

PACKING PIECE

2шт.

K628100

PLUG

PLASTICK PLUG, 7/16 UNC

2шт.

21

K908394

BUSHING

SPARE PART SEATING PAD

1шт.
