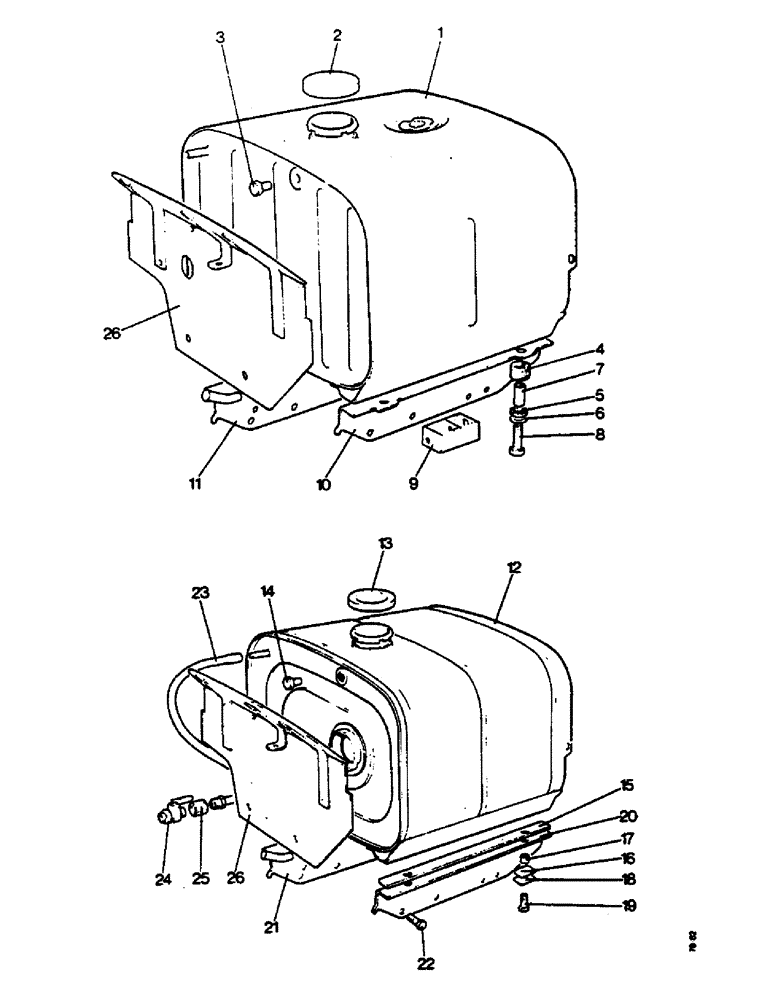

Запчасти Case IH 885 (A72) - ENGINE, FUEL TANK, PIPES AND FITTINGS, 885 TRACTORS (01) - ENGINE

1

K946006

TANK

FUEL TANK (part kit K963616)

1шт.

2

K901983

CAP

FILLER CAP (part kit K963616)

1шт.

K19591

PLUG

DRAIN PLUG, 1/8 BSP (part kit K963616)

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER, 3/8 in. (part kit K963616)

1шт.

3

K619524

PLUG

3/8 UNF, leak-off aperture (gasoline) (part kit K963616)

1шт.

K16732

WASHER

COPPER WASHER, leak-off aperture (gasoline) (part kit K963616)

1шт.

4

K626462

DAMPER

RUBBER BUSH, fuel tank to support brackets (part kit K963616)

4шт.

5

K915725

WASHER

RUBBER WASHER, fuel tank to support brackets (part kit K963616)

4шт.

6

K915726

PLATE

CLAMPING PLATE, fuel tank to support brackets (part kit K963616)

4шт.

7

K627006

TUBE

DISTANCE TUBE, fuel tank to support brackets (part kit K963616)

4шт.

8

K600150

BOLT

1/4 UNC x 1-1/2 in., fuel tank to support brackets (part kit K963616)

4шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in., fuel tank to support brackets (part kit K963616)

4шт.

9

K943270

BRACKET

engine stop control (part kit K963616)

1шт.

K607040

NUT

No. 8 UNC, stop bracket to tank support (part kit K963616)

2шт.

K626340

RING

SPRING WASHER, 3/16 in., stop bracket to tank support (part kit K963616)

2шт.

10

K945965

SUPPORT

BRACKET, left-hand (part kit K963616)

1шт.

11

K945994

TANK

SUPPORT BRACKET, right-hand (part kit K963616)

1шт.

12

K963616

TANK

FUEL TANK KIT, to service K943309 with side mounted fuel gauge, Kit comprises of Ref. 1 - 11 above

1шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

13

K901983

CAP

FILLER CAP

1шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

K19591

PLUG

DRAIN PLUG, 1/8 BSP

1шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER, 3/8 in.

1шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

14

K619524

PLUG

3/8 UNF, leak-off aperture (gasoline)

1шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

K16732

WASHER

COPPER WASHER, 3/8 in., leak-off aperture (gasoline)

1шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

15

K943348

STRIP

SEATING STRIP, fuel tank to support bracket

2шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

16

K915725

WASHER

RUBBER WASHER, fuel tank to support bracket

4шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

17

K915727

TUBE

DISTANCE TUBE, fuel tank to support bracket

4шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

18

K915726

PLATE

CLAMPING PLATE, fuel tank to support bracket

4шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

19

K602704

SCREW

SETSCREW, 1/2 UNC x 7/8 in., fuel tank to support bracket

4шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

20

K943267

SUPPORT

BRACKET, left-hand

1шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

21

K943316

SUPPORT

BRACKET, right-hand

1шт.

Used on model 885, up to S/N 626877

1шт.

Used on model 885G, up to S/N 651280

1шт.

22

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW, 3/8 UNC x 3-1/4 in., brackets to clutch housing, pipes and fittings

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., brackets to clutch housing, pipes and fittings

4шт.

23a

K943320

HOSE,0.312" OD x 22" L

FUEL PIPE, tank to feed pump (diesel), fittings

1шт.

24

K622061

VALVE

FUEL TAP (diesel), pipes and fittings

1шт.

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

'O' RING, 5/16 in. internal dia., optional equipment (diesel), pipes and fittings

1шт.

25

K626024

FITTING

UNION, 1/2 UNF x 1/2 UNF, optional equipment (diesel), pipes and fittings

1шт.

K626950

WASHER

FIBRE WASHER, 7/16 in. internal dia., optional equipment (diesel), pipes and fittings

1шт.

23b

K943356

PIPE

FUEL PIPE, tank to feed pump (gasoline), fittings

1шт.

K621697

CLIP

pipe to heat shield (gasoline), fittings

1шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in., pipe to heat shield (gasoline), fittings

1шт.

K617080

NUT

No. 10 UNF, pipe to heat shield (gasoline), fittings

1шт.

K626340

RING

SPRING WASHER, 3/16 in., pipe to heat shield (gasoline), fittings

1шт.

26a

K947910

GUARD

HEAT SHIELD (gasoline), pipes and fittings

1шт.

Used on model 885, S/N E2039 and after

1шт.

26b

K943391

SHIELD

HEAT SHIELD, fuel tank, pipes and fittings

1шт.

Used on model 885, up to S/N E2039

1шт.

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW, 3/8 UNC x 3/4 in., shield to cylinder block (gasoline), pipes and fittings

2шт.

K19472

WASHER

3/8 in., shield to cylinder block (gasoline), pipes and fittings

2шт.

K613140

SCREW

SETSCREW, 1/2 UNF x 5/8 in., shield to lifting nut (gasoline), pipes and fittings

1шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in., shield to lifting nut (gasoline), pipes and fittings

1шт.

K617581

NUT

1/2 UNF, pipes and fittings

1шт.

See Figure M21 for Sending Units.

1шт.
