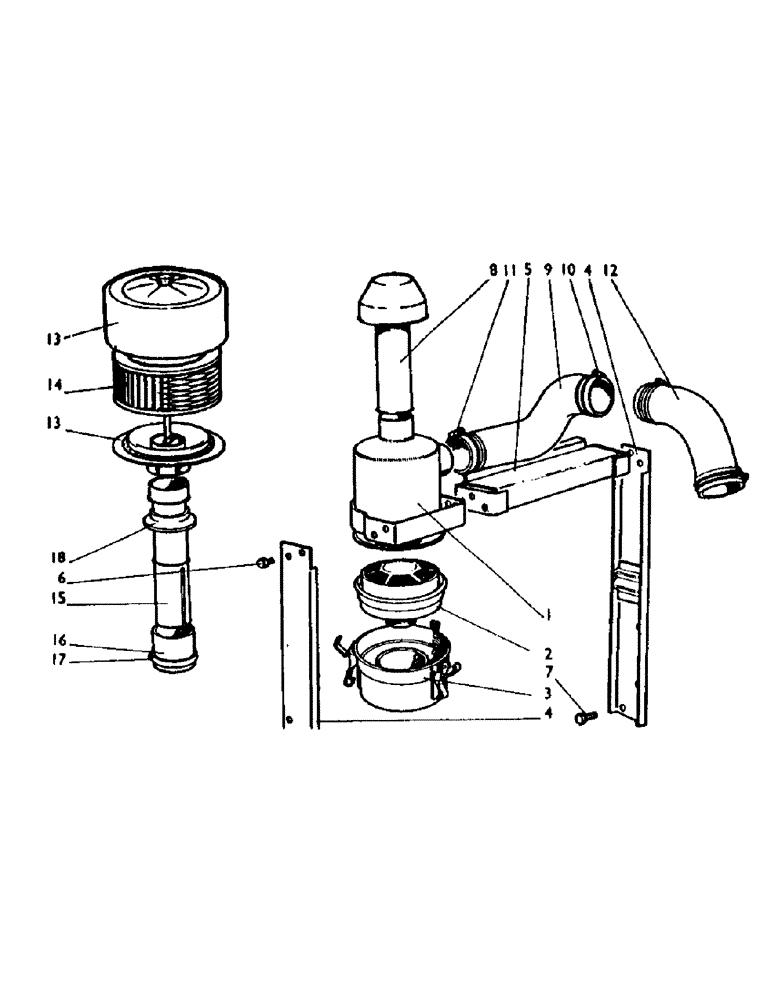

Запчасти Case IH 885 (A64) - ENGINE, AIR CLEANER, 885 TRACTORS (01) - ENGINE

1a

K921492

HOUSING

AIR CLEANER, 6 in. complete, Burgess (diesel), Includes: Ref. 2A - 3B

1шт.

1b

K920809

CLEANER

AIR CLEANER, 6 in. complete, Burgess (gasoline), Includes: Ref. 2A - 3B

1шт.

2a

K920813

SCREEN

LOWER ELEMENT, Burgess

1шт.

3a

K920810

NO LONGER SERVICED

BOWL, with toggle clips, Burgess

1шт.

1c

AIR CLEANER, AC-Delco, original equipment (not supplied by Parts)

1шт.

2b

K900218

FILTER, ELEMENT

LOWER ELEMENT, AC-Delco

1шт.

3b

K920518

BOWL

with toggle clips, AC-Delco

1шт.

3c

K944351

BOWL

for K921492 early models only (not interchangeable with K920810)

1шт.

K944350

CLAMP

bowl to cleaner, for K921492 early models only (not interchangeable with K920810)

1шт.

4

K917117

STRAP

SUPPORT BRACKET, air cleaner

2шт.

5

K917969

BRACKET

TIE BRACKET

1шт.

6

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW, 5/16 UNC x 5/8 in., bracket to air cleaner

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., bracket to air cleaner

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, bracket to air cleaner

2шт.

K604477

SCREW

Posidriv, 5/16 UNC, support bracket to tie bracket and air cleaner

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, support bracket to tie bracket and air cleaner

2шт.

K604575

SCREW

Posidriv, 5/16 UNC, support bracket to tie bracket and air cleaner

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 UNC, support bracket to tie bracket and air cleaner

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, support bracket to tie bracket and air cleaner

2шт.

7

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in., bracket to front extension

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., bracket to front extension

4шт.

8a

K920811

NO LONGER SERVICED

PRE-CLEANER (diesel)

1шт.

8b

K917143

CLEANER

PRE-CLEANER (gasoline)

1шт.

9

K917972

INTAKE AIR HOSE,2.00" ID, 2.25" ID, SAE J14 Class SC

Air Cleaner to Radiator 2.00" ID, 2.25" ID, SAE J14 Class SC

1шт.

10

K622031

CLAMP

HOSE CLIP, 2-3/4 in. internal dia.

4шт.

12a

K912041

HOSE

PIPE, radiator to manifold (diesel)

1шт.

12b

K924315

PIPE

radiator to carburettor (gasoline)

1шт.

13

K924272

PRECLEANER

PRE-CLEANER, paper element type, (Purolator) (U1159) (918597) (paper element pre-cleaner)

1шт.

14

K922630

AIR FILTER

PAPER ELEMENT (paper element pre-cleaner)

1шт.

15a

K920068

PIPE

EXTENSION PIPE, 9-1/2 in. (paper element pre-cleaner)

1шт.

16

K917048

SLEEVE

RUBBER SLEEVE (air cleaner extension)

1шт.

17a

K12755

CLIP

HOSE CLIP, 2-3/8 in. dia. (air cleaner extension)

2шт.

18

K917010

FLANGE

DUST FLANGE (air cleaner extension)

1шт.

15b

K915275

INLET MANIFOLD

EXTENSION PIPE, 32 in. (U825) (911809) (air cleaner extension)

1шт.

16

K917048

SLEEVE

RUBBER SLEEVE

1шт.

17b

K621933

CLIP

HOSE CLIP, air cleaner (air cleaner extension)

1шт.

K12755

CLIP

HOSE CLIP, extension (air cleaner extension) (replaces K621940)

1шт.

18

K917010

FLANGE

DUST FLANGE (air cleaner extension)

1шт.

K924577

FITTING

CONNECTION, engine breather (gasoline)

1шт.

K622071

CLIP

HOSE CLIP, 3/4 in. dia. (gasoline)

1шт.

Air Restrictor Indicator is not standard eq on this unit. one could be put on as an add on.

1шт.
