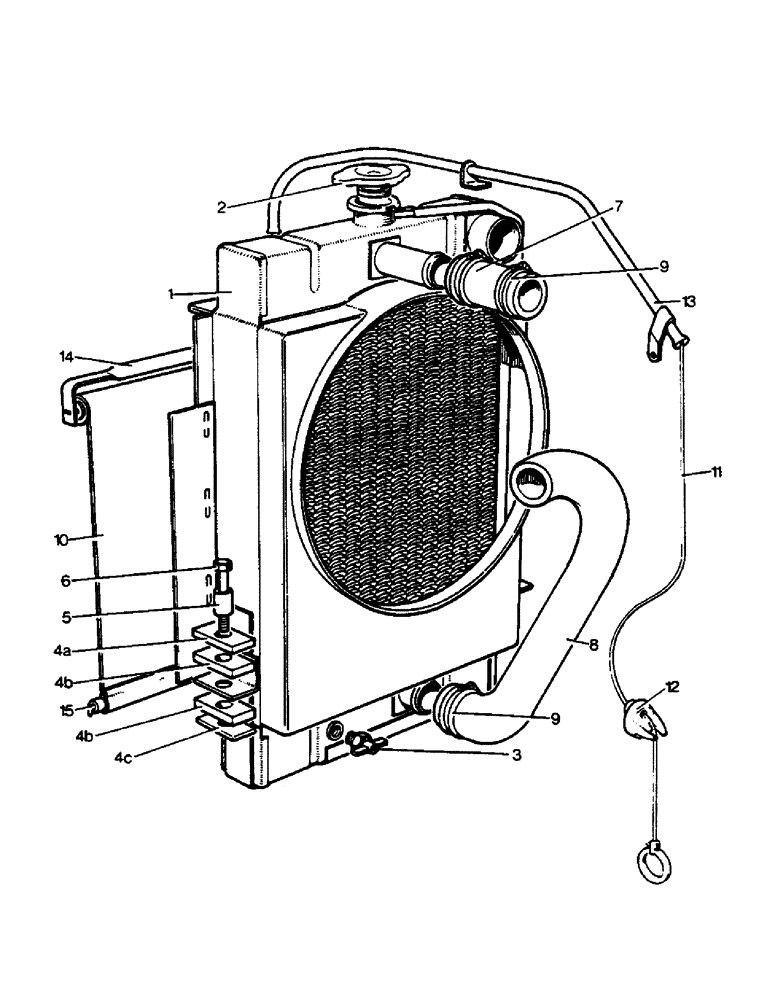

Запчасти Case IH 885 (A62) - ENGINE, RADIATOR AND BLIND, 885 TRACTORS (01) - ENGINE

1a

K922737

RADIATOR

2-1/4 in. block, 7 gills/in., standard (diesel)

1шт.

2a

K945363

CAP

FILLER CAP, 4 lb/in. square for 922737 (diesel)

1шт.

1b

K922736

RADIATOR

2-1/4 in. block, 8 gills/in., tropical (diesel)

1шт.

2b

K945362

CAP

FILLER CAP, 7 lb/in. square for 922736 (diesel)

1шт.

1c

K922739

RADIATOR

2-1/4 in. block, 8 gills/in., standard (gasoline)

1шт.

2c

K945363

CAP

FILLER CAP, 4lb/in. square, for 922739 (gasoline)

1шт.

3

K622060

PLUG, DRAIN

DRAIN TAP, 1/4 BSP

1шт.

K19501

WASHER

FIBRE WASHER, 1/2 in.

1шт.

4a

K921837

SHIM

CLAMPING PLATE

2шт.

4b

K921836

WEDGE

FOOT PACKING

4шт.

4c

K926609

SUPPORT

PLATE

2шт.

5

K908823

TUBE,0.562" OD x 0.875" L

DISTANCE TUBE

2шт.

6

K600406

BOLT

3/8 UNC x 1-3/4 in.

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

2шт.

7

K37575

HOSE

radiator inlet

1шт.

8

K915206

HOSE

radiator outlet

1шт.

9

K622029

CLAMP

HOSE CLIP, 2-1/8 in. dia.

4шт.

10

K912318

RADIATOR

BLIND (U1213) (922269)

1шт.

11

K924668

SPARE PART

CONTROL CORD, 48 in. (922269)

1шт.

Not Available.

1шт.

K952646

KEY

RING, control cord (922269)

1шт.

12

K952633

ROD

ANCHOR, control cord

1шт.

13

K912910

TUBE

control cord (922269)

1шт.

14

K912319

ROD

PULL ROD (922269)

1шт.

15

K921739

ROD

ANCHOR (922269)

1шт.

K19520

PIN

SPLIT PIN, 1/16 x 3/8 in. (922269)

2шт.
