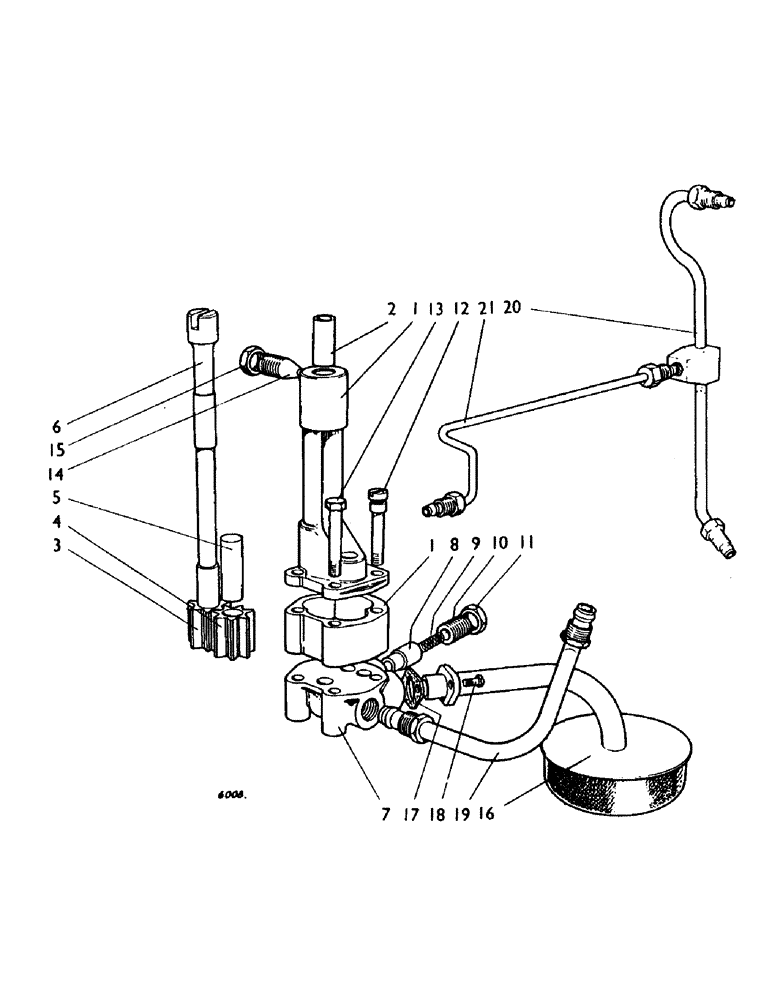

Запчасти Case IH 885 (A58) - ENGINE, OIL PUMP AND PIPES, 885 TRACTORS (01) - ENGINE

K911963

PUMP

OIL PUMP, complete (diesel)

1шт.

For K911963, K954069 is an improved Oil Pump PB15-79.

1шт.

K923688

PUMP

OIL PUMP, complete (gasoline)

1шт.

1

K961737

BRACKET

AND GEAR HOUSING

1шт.

2

K30016

BUSHING

BUSH, bracket

1шт.

3

K902058

PINION

DRIVING ROTOR

1шт.

Ref #3 - Has key for Shaft

1шт.

4

K949997

ROTOR

DRIVEN ROTOR, replaces 902059, Includes: Ref. 5

1шт.

5

K902060

SPINDLE

SHAFT, driven rotor

1шт.

6a

K907918

SPINDLE

SHAFT, driving rotor (diesel)

1шт.

Ref #6a - Splines Top, Keyed on Gear.

1шт.

6b

K922611

SPINDLE

SHAFT, driving rotor (gasoline)

1шт.

Ref #6b - Slot on Top, Keyed on Gear.

1шт.

K19604

KEY

Woodruff No. 405

1шт.

K907921

VALVE

RELIEF VALVE ASSEMBLY, Includes: Ref. 7 - 11

1шт.

7

K907589

VALVE

COVER

1шт.

8

K907590

PLUNGER

1шт.

9

K625148

SPRING

1шт.

10

K912301

SCREW

ADJUSTING SCREW

1шт.

11

K19438

LOCK NUT

LOCKNUT, 3/8 BSP

1шт.

12

K604544

FITTING

SCREW, 1/4 UNC x 3 in., special fitting

2шт.

13

K600018

BOLT

1/4 UNC x 3 in.

2шт.

K607000

NUT

1/4 UNC

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

4шт.

14a

K928254

SCREW,7/16" - 14 x 1 5/16"

LOCATING SCREW, 7/16 UNC

1шт.

Used on model 885, S/N 633680 and after

1шт.

Used on model 885G, S/N 651624 and after

1шт.

14b

K900748

SCREW

LOCATING SCREW

1шт.

Used on model 885, up to S/N 633680

1шт.

Used on model 885G, up to S/N 651624

1шт.

15

K607516

NUT

CAPPED NUT, 7/16 UNC

1шт.

K14674

WASHER

COPPER WASHER, 7/16 in.

1шт.

16

K907929

FILTER

oil pump inlet

1шт.

17

K908048

GASKET,0.76mm Thk

1шт.

18

K602702

SCREW

SETSCREW, 1/4 UNC x 5/8 in.

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

2шт.

19

K908050

PIPE

OIL PIPE, pump to cylinder block

1шт.

20a

K928267

PIPE

OIL PIPE, cylinder block to head (diesel)

1шт.

Used on model 885, S/N 633680 and after

1шт.

Used on model 885G, S/N 651624 and after

1шт.

20b

K902765

PIPE

OIL PIPE, cylinder block to head (diesel)

1шт.

Used on model 885, up to S/N 633680

1шт.

Used on model 885G, up to S/N 651624

1шт.

20c

K946695

PIPE

OIL PIPE, cylinder block to head (gasoline)

1шт.

Used on model 885, S/N 633680 and after

1шт.

Used on model 885G, S/N 651624 and after

1шт.

20d

K923920

PIPE

OIL PIPE, cylinder block to head (gasoline)

1шт.

Used on model 885, up to S/N 633680

1шт.

Used on model 885G, up to S/N 651624

1шт.

21

K923773

PIPE

OIL PIPE, gear housing (gasoline)

1шт.
