Запчасти Case IH 885 (A56) - ENGINE, WATER PUMP, 885G GASOLINE TRACTOR, 885 DIESEL TRACTOR, UP TO E29639 (01) - ENGINE

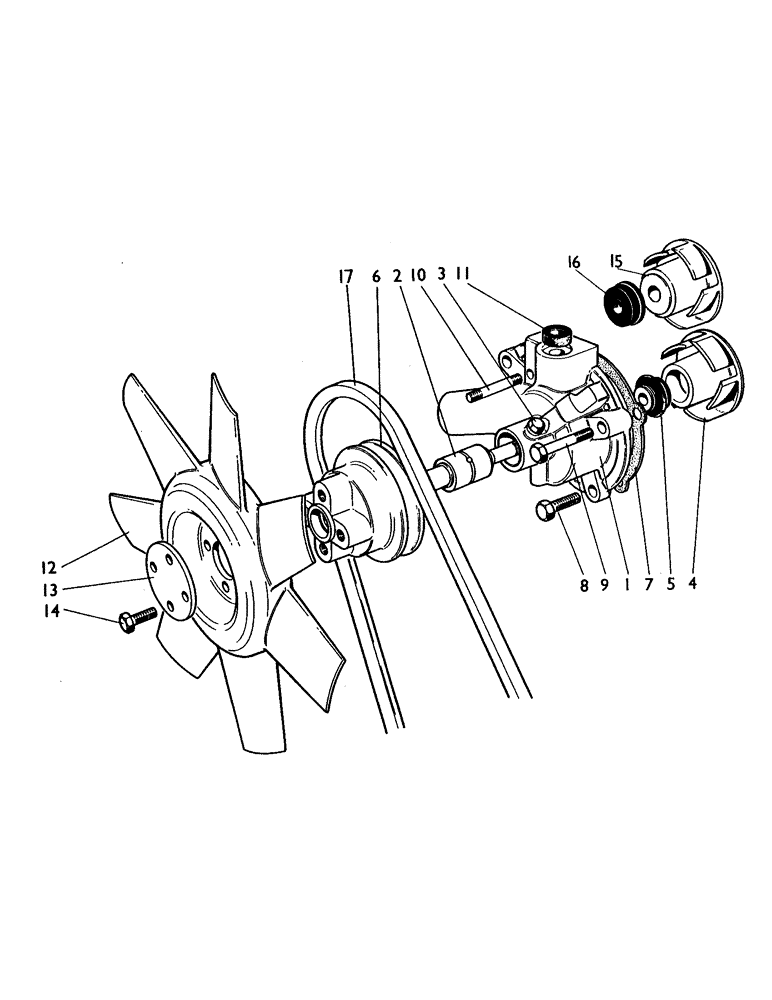

Схема запчастей Case IH 885 - (A56) - ENGINE, WATER PUMP, 885G GASOLINE TRACTOR, 885 DIESEL TRACTOR, UP TO E29639 (01) - ENGINE
6
1
3
16
13
5
2
14
17
8
9
7
10
12
4
15
11

Артикул

Название

Примечание

Количество

K925067

PUMP

WATER PUMP ASSEMBLY (diesel), Includes: Ref. 1A - 5

1шт.

K923689

PUMP

WATER PUMP ASSEMBLY (gasoline), see below, Includes: Ref. 1A - 5

1шт.

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Use with K923689 for hole in pump Hex Soc, 3/4"-16 ORB

1шт.

1a

K925066

BODY

PUMP BODY (diesel)

1шт.

1b

K922610

HOUSING

PUMP BODY (gasoline)

1шт.

2

K11651

BEARING

SHAFT AND BEARING

1шт.

3

K903810

SCREW,Locating, 5/16" - 18 x 21/32"

LOCATING SCREW, pumps without greaser

1шт.

3a

K903810

SCREW,Locating, 5/16" - 18 x 21/32"

LOCATING SCREW, pumps with greaser

1шт.

K11673

WASHER

TABWASHER

1шт.

4

K907924

IMPELLER

15шт.

5

K260133

SEAL

gland

1шт.

6a

K942475

PULLEY

fan (diesel)

1шт.

6b

K942475

PULLEY

fan (gasoline)

1шт.

7

K907925

GASKET

, Serial Range: pump-block

1шт.

8

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in., water pump to block

3шт.

9

K600207

BOLT

5/16 UNC x 1-3/4 in., water, Serial Range: pump-block

1шт.

10

K608140

STUD

5/16 UNC x 2-1/4 in., water, Serial Range: pump-block

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, water pump to block

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., water, Serial Range: pump-block

5шт.

11

K915330

SEALING RING

RUBBER SEAL, pump to cylinder head

1шт.

12

K921852

FAN

(seven blade), 14 in dia.

1шт.

13

K921361

SHIM

RETAINING PLATE

1шт.

14

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

K626723

BELLEVILLE WASHER

SPRING WASHER, 3/8 in.

4шт.

17a

K912196

V-BELT

Driving, Fan and dynamo (Diesel)

1шт.

17b

K942053

V-BELT

DRIVING BELT, fan and alternator (diesel)

1шт.

17c

K901111

BELT

V-BELT, Driving, Fan and dynamo (Gasoline)

1шт.

17d

K912196

V-BELT

Driving, Fan and alternator (Gasoline)

1шт.

K961770

KIT

REPAIR KIT, seal, bearing, gasket, etc.

1шт.

K952713

PUMP, WATER

WATER PUMP ASSEMBLY, replaces K949547, 885 deisel tractors, Includes: Ref. 1 - 16

1шт.

Used on model 885, S/N E29639 and after

1шт.

1

K952426

HOUSING

PUMP BODY, replaces K949548, water - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

2

K11651

BEARING

SHAFT AND BEARING, water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

3

K946260

SCREW

LOCATING SCREW, water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

K11673

WASHER

TABWASHER, water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

15

K949549

IMPELLER

water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

16

K949550

SEAL

gland, water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

6

K942475

PULLEY

fan, water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

7

K907925

GASKET

pump to block, water - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

8

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in., water pump to block, 885 deisel tractors

4шт.

Used on model 885, S/N E29639 and after

1шт.

9

K600207

BOLT

5/16 UNC x 1-3/4 in., water pump to block, 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

10

K608140

STUD

5/16 UNC x 2-1/4 in., water pump to block (early tractors only), 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, water pump to block (early tractors only), 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

K19481

SPRING WASHER

SPRING WASHER, water pump to block, 885 deisel tractors

5шт.

Used on model 885, S/N E29639 and after

1шт.

11

K915330

SEALING RING

RUBBER SEAL, pump to cylinder head, water - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

12

K921852

FAN

(seven blade), 14 in dia., water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

13

K921361

SHIM

RETAINING PLATE, water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

14

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Water pump - 885 diesel tractors Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

Used on model 885, S/N E29639 and after

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., water pump - 885 deisel tractors

4шт.

Used on model 885, S/N E29639 and after

1шт.

K912196

V-BELT

Driving, Fan and alternator, Water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

K961770

KIT

REPAIR KIT, (seal, bearing, gasket, etc.), water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

K623829

PLUG

3/8 BSP, water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

K19500

GASKET

WASHER, 5/8 in., water pump - 885 deisel tractors

1шт.

Used on model 885, S/N E29639 and after

1шт.

Выбрано товаров: 75
