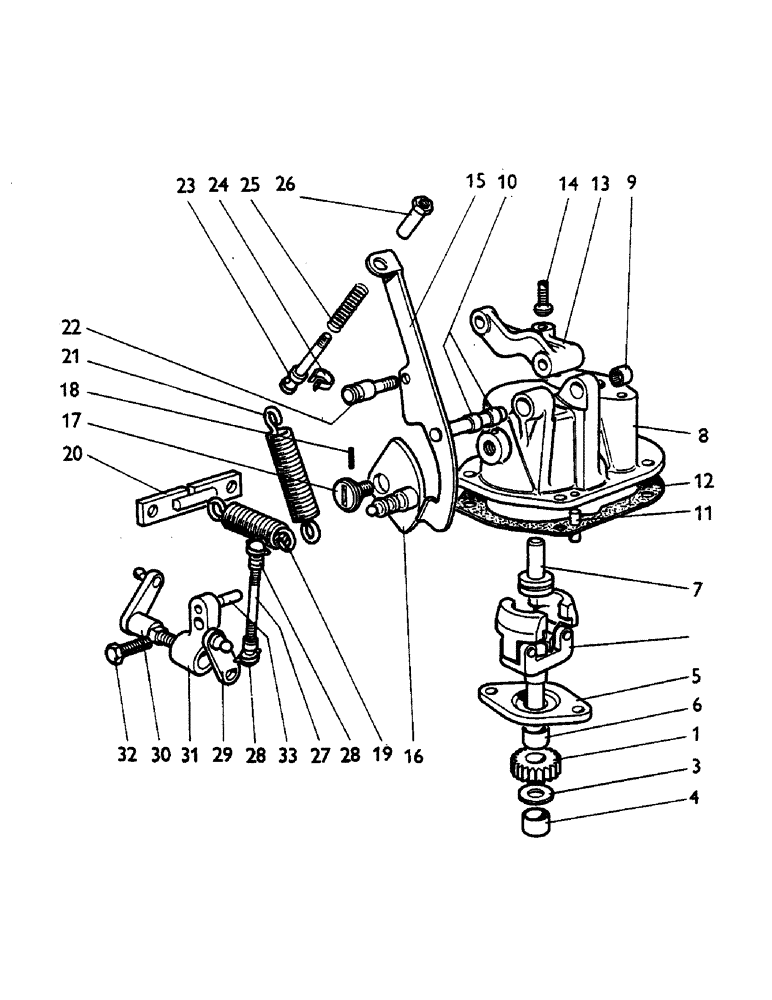

Запчасти Case IH 885 (A54) - ENGINE, GOVERNOR, 885 GASOLINE TRACTORS (01) - ENGINE

1

K923479

GEAR

DRIVEN GEAR

1шт.

2

K923467

CARRIER

AND WEIGHTS

1шт.

3

K922575

WASHER

THRUST WASHER

1шт.

4

K621398

BUSHING

BUSH, gear housing

1шт.

5

K919487

BEARING

HOUSING

1шт.

6

K15524

BUSH

1шт.

7a

K946132

BEARING LINER

THRUST BEARING AND PUSH ROD

1шт.

Used on model 885, S/N E2197 and after

1шт.

7b

K924829

ROD

THRUST BEARING AND PUSH ROD

1шт.

Used on model 885, up to S/N E2197

1шт.

8

K929424

COVER

gear housing, Includes: Ref. 9 & 10 and bush, adjusting screw, and locknut

1шт.

9

K620271

NEEDLE

ROLLER BEARING

1шт.

10

K620272

BEARING, NEEDLE,Needle, 6.35mm ID x 11.11mm OD x 7.92mm W

NEEDLE ROLLER BEARING

2шт.

K621422

BUSHING

BUSH

1шт.

K602705

SCREW

ADJUSTING SCREW, 1/4 UNC x 1 in.

1шт.

425-144

JAM NUT,Jam, 1/4"-20, G5

LOCKNUT, 1/4 UNC

1шт.

11

K25360

PIN

DOWEL, 1/4 x 5/8 in., cover to gear housing

2шт.

12

K922580

GASKET

cover to gear housing

1шт.

13

K919485

LEVER

1шт.

14

K922601

BUTTON

THRUST BUTTON

1шт.

K607000

NUT

1/4 UNC

1шт.

15

K923936

LEVER

AND SPINDLE

1шт.

K12553

WASHER

SEALING WASHER, 1/4 in.

3шт.

16

K922585

CAM

1шт.

17

K922588

PIN

FULCRUM PIN

1шт.

18

K19560

PIN

MILLS PIN, 1/8 x 1 in.

1шт.

K19471

WASHER

5/16 in.

1шт.

19

K624934

SPRING

BALANCE SPRING

1шт.

20

K924102

BRACKET

ANCHOR BRACKET

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

2шт.

21

K624932

GOVERNOR SPRING

1шт.

22

K922602

SPRING

ANCHOR

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

1шт.

23

K943445

ROD

No. 10 UNF x 2-11/16 in.

1шт.

24

K943448

SPRING

CLIP

1шт.

25

K625255

PLATE

COMPRESSION SPRING

1шт.

26

K928691

SLEEVE

ADJUSTING SLEEVE, No. 10 UNF

1шт.

K617080

NUT

No. 10 UNF

1шт.

27

K924084

ROD

No. 10 UNF x 3 in.

1шт.

28

K621901

BALL JOINT

BALL SOCKET

2шт.

K617080

NUT

No. 10 UNF

2шт.

29

K924120

LEVER

1шт.

30

K924078

LEVER

AND PIN

1шт.

K19471

WASHER

5/16 in.

1шт.

231-1435

LOCK NUT,5/16"-18, GB

NYLOC NUT, 5/16 UNC

1шт.

31

K924082

BRACKET

1шт.

32

K602806

BOLT

SETSCREW, 5/16 UNC x 1-1/8 in., bracket to gear housing

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., bracket to gear housing

1шт.

33

K25360

PIN

DOWEL, 1/4 x 5/8 in., bracket to gear housing

1шт.
