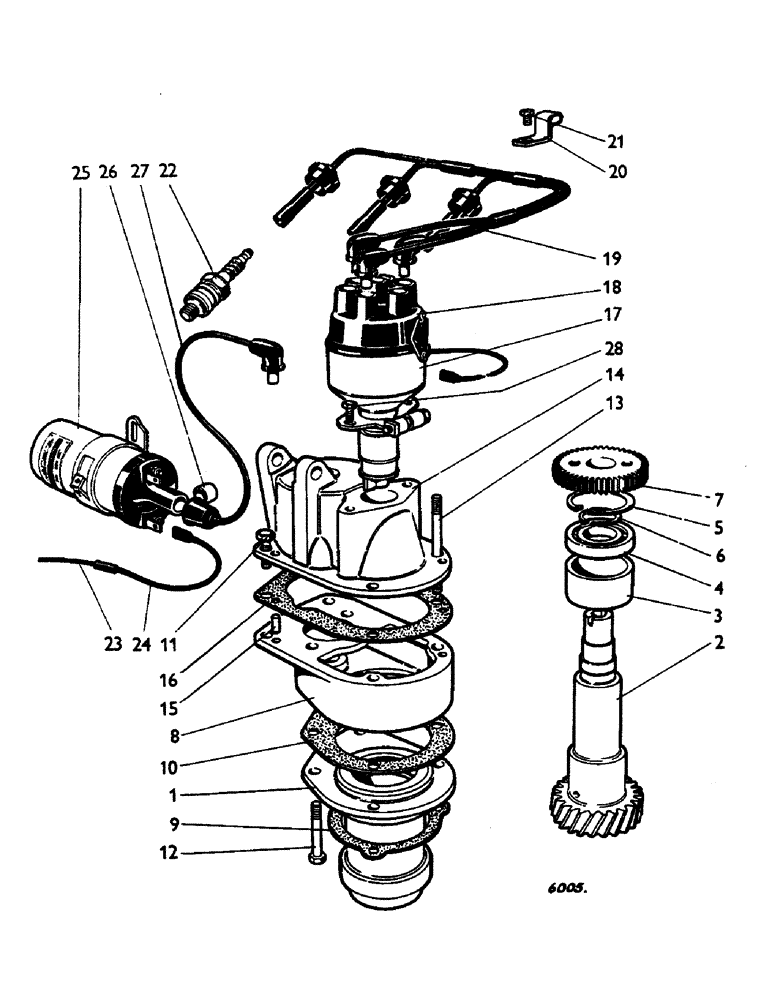

Запчасти Case IH 885 (A52) - ENGINE, DISTRIBUTOR AND IGNITION SYSTEM, 885G, GASOLINE, TRACTORS (01) - ENGINE

1

K919481

BEARING

HOUSING

1шт.

2

K962362

GEAR WHEEL

DRIVEN GEAR

1шт.

3

K621394

BUSHING

BUSH

1шт.

4

K19124

BALL

BEARING

1шт.

5

K12390

RING, SNAP

CIRCLIP, 2-1/8 in. internal

2шт.

6

K12207

RING, SNAP

CIRCLIP, 1-1/8 in. external

1шт.

7

K922572

GEAR

DRIVE GEAR, governor

1шт.

8

K919483

GEAR

HOUSING

1шт.

9

K907922

GASKET

1шт.

10

K922578

GASKET

1шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in.

2шт.

12

K600213

BOLT

5/16 UNC x 2-1/2 in.

2шт.

13

K608110

STUD

5/16 UNC x 3-1/8 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

6шт.

K24784

COPPER WASHER

COPPER WASHER, 5/16 in.

2шт.

14

K929424

COVER

gear housing

1шт.

15

K25360

PIN

DOWEL, 1/4 x 3/8 in.

2шт.

16

K922580

GASKET

1шт.

17

K923986

DISTRIBUTOR

(AC-Delco 7953595)

1шт.

18

K962391

CAP

(AC-Delco 827435)

1шт.

K962394

BREAKER

CONTACT BREAKER ASSEMBLY, (AC-Delco 7953598)

1шт.

K962395

CONTACT

SET, (AC-Delco 7953383)

1шт.

K962397

CONDENSER

(AC-Delco 1928111)

1шт.

K962402

SPRING

S (pair), auto advance (AC-Delco 7953237)

1шт.

K962393

ROTOR

(AC-Delco 820445)

1шт.

K15028

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

'O' RING, 7/8 in. internal dia.

1шт.

K947471

COVER

RUBBER COVER, distributor cap, replaces K926475

1шт.

19

K940937

HARNESS

plug leads

1шт.

K940930

CAP

plug well

3шт.

K940821

PLUG

COVER, plug terminal

3шт.

20

K621677

CLIP

plug, Serial Range: leads-engine

1шт.

21

K619527

PLUG

1/2 UNF, plug, Serial Range: leads-engine

1шт.

K947908

NUT

THICK NUT, 1/2 UNF x 1 in., plug, Serial Range: leads-engine

1шт.

22

K940817

PLUG

SPARKING PLUG, (AC-Delco 42TS)

3шт.

23

K924245

NO LONGER SERVICED

LEAD, Serial Range: harness-connector

1шт.

24

K948695

ELECTRICAL WIRE

LEAD, Serial Range: connector-coil

1шт.

25

K924015

COIL

IGNITION COIL, (AC-Delco 7952491)

1шт.

26

K607025

BUSHING

DISTANCE PIECE, coil to block (early mounting)

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, coil to block (early mounting)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., coil to block (early mounting)

2шт.

K948599

SUPPORT BRACKET, coil to head (later mounting)

1шт.

K600204

BOLT

5/16 UNC x 1-3/8 in., bracket to cylinder head (later mounting)

2шт.

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW, 5/16 UNC x 5/8 in., coil to bracket (later mounting)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., coil to bracket (later mounting)

2шт.

27

K926985

ELECTRICAL WIRE

LEAD, Serial Range: coil-distributor

1шт.

28

K602702

SCREW

SETSCREW, 1/4 UNC x 5/8 in.

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

2шт.

K19470

WASHER

1/4 in.

2шт.
