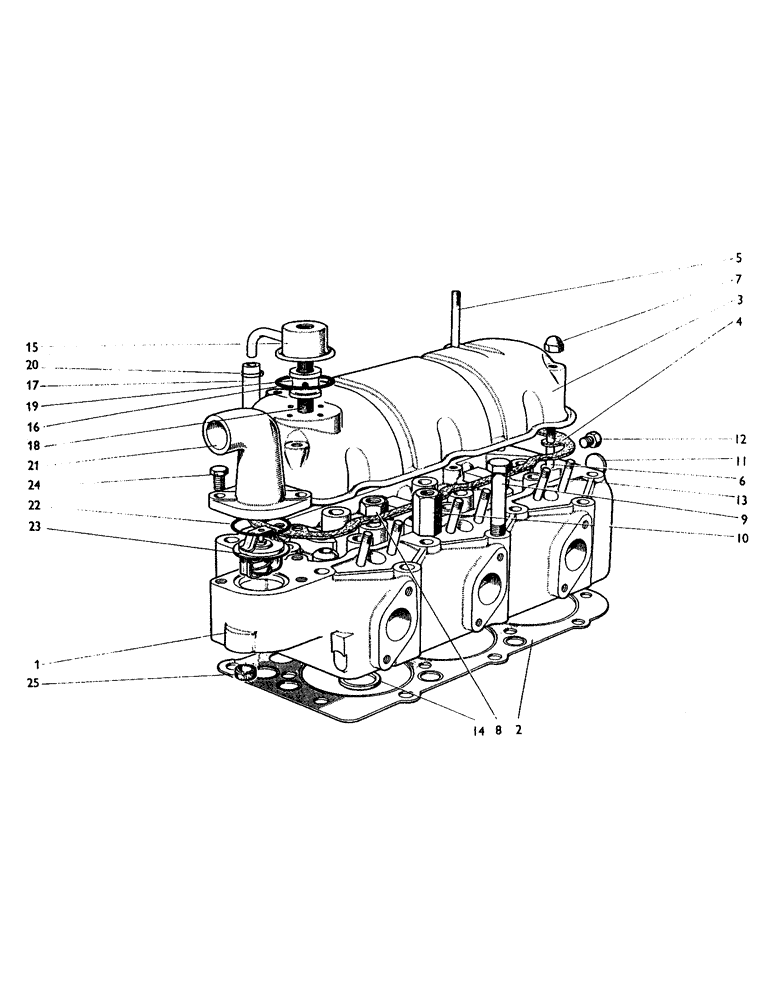

Запчасти Case IH 885 (A46) - ENGINE, CYLINDER HEAD, 885 TRACTORS (01) - ENGINE

1a

K962566

CYLINDER

HEAD, with valve inserts and plugs (diesel)

1шт.

1b

K962934

CYLINDER

HEAD, with valve inserts and plugs (gasoline)

1шт.

2

K949874

GASKET

oil impregnated asbestos, head to block, replaces K942006

1шт.

3

K921488

COVER

cylinder head

1шт.

4

K907338

GASKET,3.97mm Thk

, Serial Range: cover-head

1шт.

5

K608118

STUD

5/16 UNC x 3-7/16 in., cover

2шт.

6

K608111

STUD

5/16 UNC x 3 in., cover

2шт.

K14988

WASHER

COPPER-ASBESTOS WASHER, 5/16 in., cover

4шт.

7

K607252

NUT

DOMED NUT, 5/16 UNC, cover

4шт.

8

K617594

NUT

1/2 UNF, special, replaces K617581, cylinder head

6шт.

Used on model 885, S/N E22991 and after

1шт.

Used on model 885G, S/N E2039 and after

1шт.

9

K600870

BOLT

1/2 UNC x 4-1/4 in., special, cylinder head

9шт.

10

K906898

NUT

1/2 UNC, lifting, cylinder head

2шт.

Used on model 885, up to S/N E22991

1шт.

Used on model 885G, up to S/N E2039

1шт.

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

17/32, cylinder head

15шт.

K900431

PLUG

TAPER PLUG

3шт.

11

K623810

PLUG

WELCH PLUG, 1 in.

2шт.

12

K19591

PLUG

FLANGED PLUG, 1/8 BSP

1шт.

K16732

WASHER

COPPER WASHER, 3/8 in.

1шт.

K608203

STUD

3/8 UNC x 1-7/16 in., exhaust manifold

6шт.

13

K608107

STUD

5/16 UNC x 2-11/16 in., injectors

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, injectors

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., injectors

6шт.

14

K921246

INSERT

inlet seat

3шт.

K921247

INSERT

exhaust seat (diesel)

3шт.

K925019

INSERT

exhaust seat (gasoline)

3шт.

15

K921489

COVER

breather

1шт.

16

K626901

O-RING,40554" ID x 40575" OD x 0.12"

'O' RING, 1-5/8 in. internal dia.

1шт.

17a

K947667

PIPE

HOSE, 5/8 x 20 in., replaces K920676 (diesel)

1шт.

17b

K948099

PIPE

HOSE, 5/8 x 15 in., replaces K924572 (gasoline)

1шт.

K921853

OUTLET

PIPE, breather to air cleaner (gasoline)

1шт.

K924577

FITTING

PIPE, engine to breather (gasoline)

1шт.

K622071

CLIP

HOSE CLIP, 3/4 in. (gasoline)

1шт.

18

K600803

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

1/2 UNC x 1-5/8 in.

1шт.

19

K945433

BUSHING

DISTANCE PIECE

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT, 1/2 UNC

1шт.

18a

K920677

BREATHER

BOLT, 1/2 UNF, special (Alternative)

1шт.

19a

K909672

DISTRIBUTOR

DISTANCE PIECE (Alternative)

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

LOCKNUT, 1/2 UNF (Alternative)

1шт.

K626443

WASHER

COPPER WASHER, 1/2 in.

1шт.

20

K13069

HOSE

CLIP, 3/4 in.

1шт.

21

K921853

OUTLET

PIPE, water outlet

1шт.

22

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

23

K900368

THERMOSTAT

1шт.

K910411

GASKET

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

2шт.

24

K602806

BOLT

SETSCREW, 5/16 UNC x 1-1/8 in., replaces K602805

2шт.

25

K915330

SEALING RING

RUBBER SEAL, pump to cylinder head

1шт.

K964857 Engine Cylinder Lines See SB84-82.

1шт.
