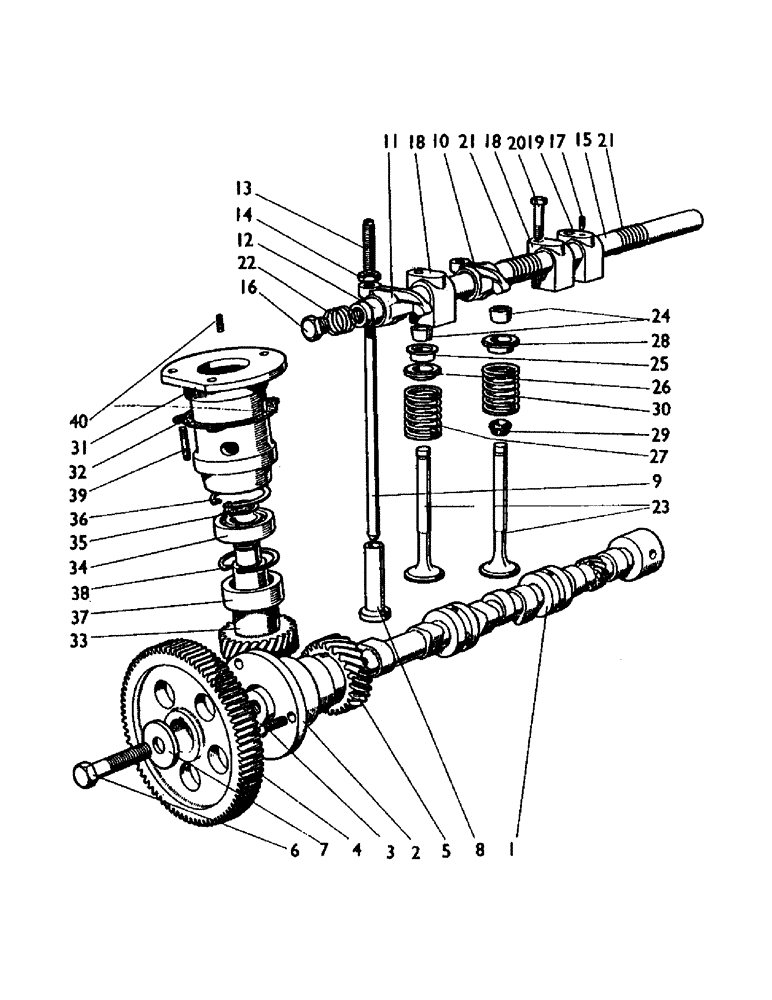

Запчасти Case IH 885 (A44) - ENGINE, VALVE MECHANISM AND TIMING GEARS, 885 TRACTORS (01) - ENGINE

1

K914527

CAMSHAFT

1шт.

2

K907336

HOUSING

LOCATING HOUSING

1шт.

3

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in.

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

3шт.

4

K907335

PINION

GEAR, camshaft

1шт.

5

K909920

DRIVE

GEAR, injection pump drive

1шт.

K19607

KEY

Woodruff No. 506

2шт.

6

K907572

BOLT

1/2 UNC x 2-1/4 in., gear retaining

1шт.

7

K907571

WASHER

1/2 in., special

1шт.

8

K901137

TAPPET

6шт.

9

K902035

ROD

PUSH ROD

6шт.

10

K961052

ROCKER

VALVE ROCKER, right-hand, with bush (2, 4, 6 from front)

3шт.

11

K961053

ROCKER

VALVE ROCKER, left-hand, with bush (1, 3, 5 from front)

3шт.

12

K11060

BUSHING

BUSH, valve rocker

6шт.

13

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

3/8 UNC, adjusting

6шт.

14

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT, 3/8 UNC

6шт.

15

K907920

TUBE

SHAFT, rocker

1шт.

16

K19590

PLUG

3/8 BSP

2шт.

17

K606051

SET SCREW,5/16" - 18 x 1/2"

LOCATING SCREW, 5/16 UNC x 1/2 in.

1шт.

18

K921431

BRACKET

rocker shaft, Nos. 1 and 2

2шт.

19

K921432

BRACKET

rocker shaft, rear

1шт.

20

K600611

BOLT

7/16 UNC x 2-5/8 in.

3шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in.

3шт.

K19473

WASHER

7/16 in.

3шт.

21

K11017

SPRING

LOCATING SPRING, intermediate

2шт.

22

K907919

WASHER

LOCATING SPRING, ends

2шт.

23

K928622

STD INLET VALVE

VALVE, inlet and diesel exhaust

6шт.

24

K943439

LOCKING DEVICE

COTTERS, diesel exhaust

6шт.

25

K928623

COLLAR

inner, diesel exhaust

3шт.

26

K928624

COLLAR

outer, diesel exhaust

3шт.

K923998

VALVE

gasoline exhaust.

3шт.

K943443

PIN, SPLIT (COTTER)

COTTERS, gasoline exhaust

6шт.

K900419

COLLAR

gasoline exhaust

3шт.

K68414

CAP

valve stem, gasoline exhaust

3шт.

27

K921436

VALVE SPRING

SPRING, exhaust valve

3шт.

24

K943439

LOCKING DEVICE

COTTERS

6шт.

28

K921437

COLLAR

inlet valve

3шт.

29

K940481

OIL SEAL

inlet valve

3шт.

30

K921435

SPRING

3шт.

31a

K948193

HOUSING

BEARING HOUSING, use with bearing K620266

1шт.

31b

K910608

HOUSING

BEARING HOUSING, use with bearing K620072

1шт.

32

K907922

GASKET

housing to cylinder block

1шт.

33a

K912483

GEAR

DRIVEN GEAR, injection pump (diesel)

1шт.

33b

K962362

GEAR WHEEL

GEAR, distributor drive (gasoline)

1шт.

Ref #33b - Pin for Hole K623745.

1шт.

34

K24489

BALL BEARING

1шт.

35

K11128

CIRCLIP

1 in. external

1шт.

36

K13170

RING, SNAP

CIRCLIP, 52mm internal

1шт.

37a

K620266

NEEDLE BEARING

NEEDLE ROLLER BEARING, (Torrington B2812), use with housing K948193

1шт.

37b

K620072

BEARING

NEEDLE ROLLER BEARING, (Torrington GB2812), use with housing K910608

1шт.

38

K621680

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

39

K608121

STUD

5/16 UNC x 1-7/8 in.

3шт.

40

K624903

SPRING

pump shaft location (diesel)

1шт.
