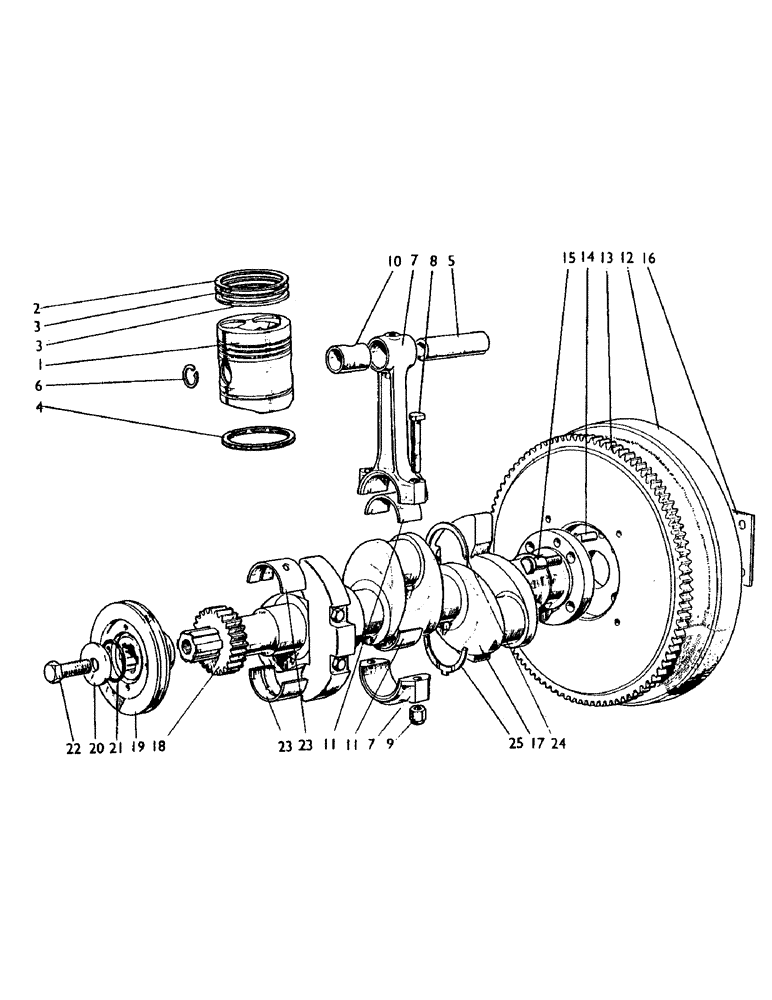

Запчасти Case IH 885 (A42) - ENGINE, PISTONS AND CRANKSHAFT, 885 TRACTORS (01) - ENGINE

K949474

PISTON & RINGS KIT

PISTON AND GUDGEON PIN ASSEMBLY, (standard), replace K943880 (diesel), Includes: Ref. 1A - 6

3шт.

1a

K921288

SPARE PART

PISTON, not supplied separately

1шт.

2a

K943881

RING, PISTON

PISTON RING, No. 1 compression

1шт.

3a

K943882

RING, PISTON

PISTON RING, Nos. 2 and 3 compression

2шт.

4a

K917409

SCRAPER

PISTON RING, scraper, replaces K915242

1шт.

5a

K904370

PIN

GUDGEON PIN

1шт.

6

K34501

RING, SNAP

CIRCLIP, 1-1/4 in. internal

2шт.

K923800

PISTON

AND GUDGEON PIN ASSEMBLY, standard (gasoline), Includes: Ref. 1B - 6

3шт.

1b

K923801

PISTON, not supplied separately

1шт.

2b

K922581

RING

PISTON RING, No. 1 compression

1шт.

No longer firnished.

1шт.

3b

K922582

RING, PISTON

PISTON RING, No. 2 compression

1шт.

4b

K915242

SCRAPER

PISTON RING, scraper

2шт.

5b

K922584

GUDGEON PIN

1шт.

6

K34501

RING, SNAP

CIRCLIP, 1/4 in. internal

2шт.

7

K80043

ROD, CONNECTING

CONNECTING ROD AND CAP ASSEMBLY, Includes: Ref. 8 - 10

3шт.

8

K905198

BOLT

7/16 BSF, special, connecting rod

2шт.

9

K623151

LOCK NUT

SELFLOCKING NUT, 7/16 BSF

2шт.

10

K31669

BEARING

BUSH, small end

1шт.

11

K911904

HALF-BEARING, CRANKS

BEARING, big end (halves)

6шт.

12a

K910150

FLYWHEEL

with starter ring (diesel), Includes: Ref. 13A

1шт.

13a

K36134

GEAR

STARTER RING (diesel)

1шт.

12b

K923243

FLYWHEEL

with starter ring (gasoline), Includes: Ref. 13B

1шт.

13b

K923216

X

STARTER RING (gasoline)

1шт.

14

K10629

PIN

DOWEL, 1/2 x 15/16 in.

1шт.

15

K903431

STEP BOLT

7/16 UNF x 1-11/16 in., special, flywheel

4шт.

K616968

NUT

7/16 UNF

4шт.

16

K910883

WASHER

TABWASHER

1шт.

K912323

HOUSING

LOCATING DISC

1шт.

17a

K961726

CRANKSHAFT

with bearings and thrust washers (diesel)

1шт.

17b

K961719

CRANKSHAFT

with bearings and thrust washers (gasoline)

1шт.

K915423

BOLT

3/8 UNC x 2-12 in., balance, Serial Range: weights-crankshaft

4шт.

K626372

WASHER

TABWASHER, balance, Serial Range: weights-crankshaft

4шт.

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

flywheel spigot

1шт.

Also referred to as a pilot bearing.

1шт.

18

K907329

GEAR

crankshaft

1шт.

19a

K914836

PULLEY

crankshaft (diesel)

1шт.

19b

K924984

PULLEY

crankshaft (gasoline)

1шт.

20

K907328

WASHER

crankshaft

1шт.

21

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

'O' RING, 2 in. internal dia.

1шт.

22

K613304

SCREW

BOLT, 5/8 UNF x 1-1/4 in.

1шт.

23

K928540

HALF-BEARING, CRANKS

MAIN BEARING, upper and lower (standard)

8шт.

24

K928542

SET

THRUST WASHER, upper (standard)

2шт.

25

K928543

SET

THRUST WASHER, lower (standard)

2шт.
