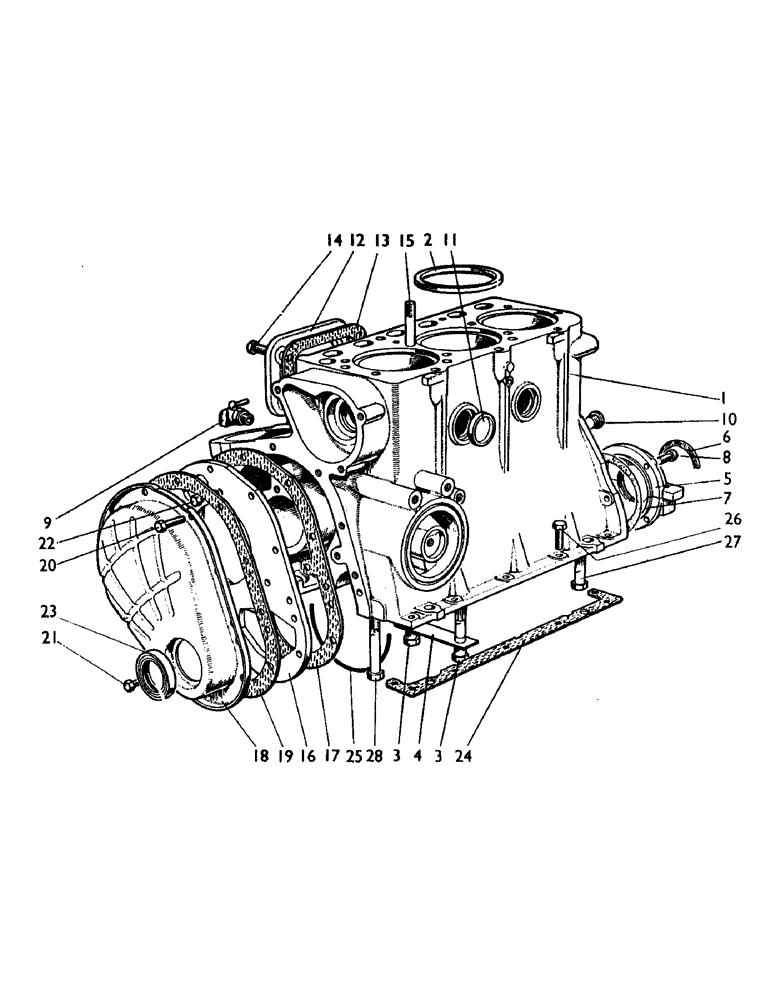

Запчасти Case IH 885 (A40) - ENGINE, CYLINDER BLOCK AND COVERS, 885 TRACTORS (01) - ENGINE

1a

K963635

BLOCK

CYLINDER BLOCK, with bearing caps, Includes: Ref. 2 - 4 and ring dowel

1шт.

Used on model 885, S/N 633680 and after

1шт.

Used on model 885G, S/N 651624 and after

1шт.

1b

K961965

CYLINDER

BLOCK, with bearing caps, Includes: Ref. 2 - 4 and ring dowel

1шт.

Used on model 885, up to S/N 633680

1шт.

Used on model 885G, up to S/N 651624

1шт.

2

K914346

RING

SEALING RING, standard bore

3шт.

Used on model 885, up to S/N E16397

1шт.

Used on model 885G, up to S/N E1504

1шт.

3

K909564

STEP BOLT

9/16 UNC x 3-15/16 in., main bearing caps

8шт.

K929560

BEARING WASHER

WASHER, 15/16 in.

8шт.

4

K626376

SHEET

TABWASHER

4шт.

K907322

RING

DOWEL, main bearing caps

8шт.

5a

K964844

HOUSING

OIL RETAINER, with packing, Includes: Ref. 6

1шт.

Used on model 885, S/N E31360 and after

1шт.

Used on model 885G, S/N E2270 and after

1шт.

K964994

RETAINER

OIL RETAINER, with packing, to service K962319, Includes: Ref. 6

1шт.

Used on model 885, S/N E31360 and after

1шт.

Used on model 885G, S/N E2270 and after

1шт.

5b

K962319

BEARING

OIL RETAINER, with packing, Includes: Ref. 6

1шт.

Used on model 885, up to S/N E31360

1шт.

Used on model 885G, up to S/N E2270

1шт.

6

K921611

OIL SEAL

PACKING, oil retainer

2шт.

K950938

GASKET,0.18mm Thk

oil retainer, Includes: Ref. 7 and screw

2шт.

Used on model 885, S/N E31360 and after

1шт.

Used on model 885G, S/N E2270 and after

1шт.

7

K914404

GASKET,0.18mm Thk

oil retainer

2шт.

Used on model 885, up to S/N E31360

1шт.

Used on model 885G, up to S/N E2270

1шт.

K606558

SCREW

5/16 UNC x 1-1/2 in., oil retainer

2шт.

8

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in.

5шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

7шт.

9a

K19581

PLUG

DRAIN PLUG, 1/4 BSP

1шт.

Used on model 885, S/N E41055 and after

1шт.

K19501

WASHER

WASHER, fibre, 1/2 in.

1шт.

Used on model 885, S/N E41055 and after

1шт.

9b

K622060

PLUG, DRAIN

DRAIN TAP

1шт.

K922093

ADAPTER

ADAPTOR, drain tap

1шт.

K30421

SEALING WASHER

SEALING WASHER, 7/8 in., drain tap

1шт.

10

K609440

PLUG

5/8 UNC, oil gallery

1шт.

K619506

WASHER

COPPER WASHER, 5/8 in., replaces K15512

1шт.

K623811

PLUG

WELCH PLUG, 2-1/16 in., camshaft bore

1шт.

11

K623797

PLUG

CORE PLUG, 1-3/4 in.

4шт.

12

K907332

TAPPET

COVER

2шт.

13

K907333

GASKET

cover

2шт.

14

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in.

8шт.

K608141

STUD

5/16 UNC x 1-11/16 in. (gasoline)

2шт.

K608141

STUD

NUT, 5/16 UNC (gasoline)

3шт.

K19471

WASHER

5/16 in.

8шт.

K14988

WASHER

COPPER, asbestos washer, 5/16 in.

8шт.

15a

K906538

STUD

1/2 UNC/UNF x 4-7/8 in., cylinder head (diesel)

4шт.

Used on model 885, S/N E22991 and after

1шт.

Used on model 885G, S/N E2039 and after

1шт.

15b

K608505

STUD,1/2" x 7/16"

STUD, 1/2 UNC/UNF x 5-5/16 in., cylinder head

2шт.

Used on model 885, S/N E22991 and after

1шт.

Used on model 885G, S/N E2039 and after

1шт.

15c

K906538

STUD

1/2 UNC/UNF x 4-7/8 in., cylinder head (diesel)

4шт.

Used on model 885, S/N E16397 up to S/N E22991

1шт.

Used on model 885G, S/N E1504 up to S/N E2039

1шт.

15d

K608500

STUD

1/2 UNC/UNF x 5-1/16 in., cylinder head (diesel)

6шт.

Used on model 885, up to S/N E16397

1шт.

Used on model 885G, up to S/N E1504

1шт.

15e

K906538

STUD

1/2 UNC/UNF x 4-7/8 in., cylinder head (885G)

2шт.

Used on model 885G, S/N E1504 up to S/N E2039

1шт.

15f

K608505

STUD,1/2" x 7/16"

STUD, 1/2 UNC/UNF x 5-7/16 in., cylinder head (885G)

4шт.

Used on model 885G, S/N E1504 up to S/N E2039

1шт.

15g

K906538

STUD

1/2 UNC/UNF x 4-7/8 in., cylinder head (885G)

3шт.

Used on model 885G, S/N E1504 up to S/N E2039

1шт.

15h

K608505

STUD,1/2" x 7/16"

STUD, 1/2 UNC/UNF x 5-5/16 in., cylinder head (885G)

3шт.

Used on model 885G, S/N E1504 up to S/N E2039

1шт.

15j

K608500

STUD

1/2 UNC/UNF x 5-1/16 in., cylinder head (885G)

3шт.

Ref # 1a - Use K965718 for Short Block.

1шт.

Ref #5b - is 4 bolts See SB11-76.

1шт.

Used on model 885G, up to S/N E1504

1шт.

15k

K608504

STUD

1/2 UNC/UNF x 5-1/2 in., cylinder head (885G)

3шт.

Used on model 885G, up to S/N E1504

1шт.

16

K907297

CARRIER

PLATE

1шт.

17

K907326

GASKET

carrier plate

1шт.

18

K907225

COVER

timing gear

1шт.

19

K907327

GASKET

timing cover (replaces K907237)

1шт.

20

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in.

6шт.

21

K602700

SCREW,1/4" - 20 x 3/8"

SETSCREW, 1/4 UNC x 3/8 in.

1шт.

22

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in.

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

12шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

1шт.

23

K623448

SEAL

OIL SEAL, 2-1/8 x 2-7/8 x 3/8 in., timing cover

1шт.

K914428

FENDER

GUARD, crankshaft pulley

1шт.

K910610

BUSHING

DISTANCE PIECE

2шт.

K600211

BOLT

5/16 x 2-1/4 in.

2шт.

24

K907583

GASKET

left-hand, frame cylinder block

1шт.

K907582

GASKET

right-hand, frame cylinder block

1шт.

25

K907584

SEAL

bearing caps, frame cylinder block

2шт.

26

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1-1/8 in., frame cylinder block

9шт.

27

K600465

BOLT

3/8 UNC x 8-1/4 in., special, frame cylinder block

3шт.

28

K600416

BOLT

3/8 UNC x 3 in., frame cylinder block

1шт.

K914504

BOLT,Spcl, 3/8" - 16 - 7/16" x 8 1/8"

3/8 UNC, special, frame cylinder block

1шт.

K621834

PIN

DOWEL, 7/16 x 1-1/8 in., frame cylinder block

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., frame cylinder block

14шт.

1 - K960286 Gasket Set

1шт.

1 - K260287 Gasket Set

1шт.

2 - 13-516 Bolt

1шт.

1 - 13-520 Bolt

1шт.

1 - 13-524 Bolt

1шт.

1 - K200807 Water Pump

1шт.

When using the K965718 Short Block, you must also have:

1шт.

1 - 113-119 Bolt

1шт.

For short block, use 1190.

1шт.
