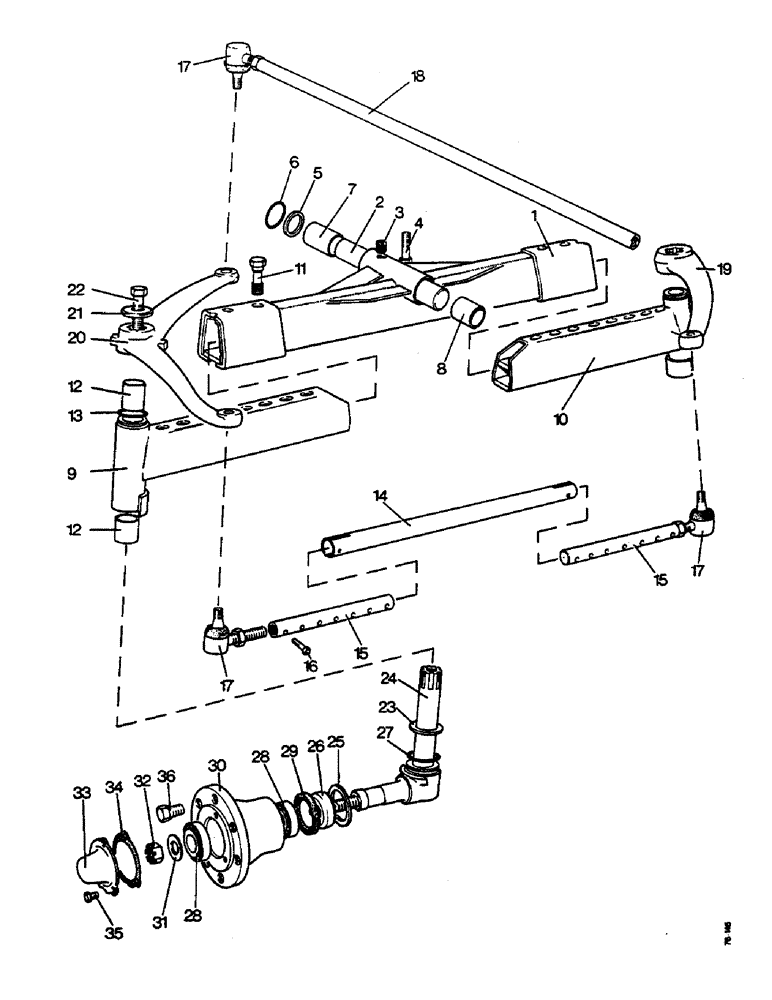

Запчасти Case IH 885 (H08) - STEERING AND FRONT AXLE, FRONT AXLE, 885 TRACTORS Steering & Front Axle

1

K942414

BEAM

CENTRE BEAM

1шт.

2

K942480

TRUNNION

PIN

1шт.

K16351

O-RING,3.53mm Thk x 24.99mm ID

'O' RING, 1 in internal dia., trunnion pin

1шт.

3

K913092

NUT

SCREWED BUSH

1шт.

4

K600508

BOLT

3/8 UNC x 2-1/2 in

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

1шт.

5

K917440

WASHER

THRUST WASHER

2шт.

6

K14508

O-RING,1.975" ID x 2.395" OD x 0.12"

'O' RING, 15/16 in internal dia.

2шт.

7

K621427

BUSHING

BUSH, front, main frame

1шт.

8

K621301

BUSHING

BUSH, rear, main frame

1шт.

9

K963521

SHAFT

BEAM EXTENSION, left-hand, with bushes

1шт.

10

K963520

SHAFT

BEAM EXTENSION, right-hand, with bushes

1шт.

11

K601308

BOLT

3/4 UNC x 3-1/8 in, special

4шт.

K626348

BELLEVILLE SPRING

SPRING WASHER, 3/4 in, replaces K19486

4шт.

12

K11598

BUSHING

BUSH

4шт.

13

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

'O' RING, 2 in internal dia.

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Main frame 1/4"-28 NPT x .54" lg

2шт.

K942479

ADAPTER

ADAPTOR, 7/16 UNC-1/4 ANF, grease nipple

1шт.

14

K942852

DRAG LINK,25.8 mm ID x 28.875 " L

SPACER TUBE, 28-7/8 in, track rods

1шт.

15

K912709

ROD

TRACK ROD

2шт.

16

K600316

BOLT

5/16 UNC x 2-1/4 in

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.

17

K908071

BALL JOINT

BALL SOCKET ASSEMBLY

4шт.

K961701

BOOT

DIRT EXCLUDER, (rubber)

4шт.

K622500

LOCK NUT

LOCKNUT, 3/4 in, special

4шт.

231-2448

LOCK NUT,1/2"-20, GB

NYLOC NUT, 1/2 UNF

4шт.

K944858

LINK

DRAG LINK, (complete), manual steering

1шт.

18

K944859

LINK

DRAG LINK TUBE

1шт.

19

K942525

LEVER

STEERING LEVER, right-hand

1шт.

20a

K942524

LEVER

STEERING LEVER, left-hand, manual steering

1шт.

20b

K943346

LEVER

STEERING LEVER, left-hand, hydrostatic steering

1шт.

21

K15595

WASHER

5/8 in, special

2шт.

22

K601210

BOLT (SPREADER)

BOLT, 5/8 UNC x 2-3/4 in

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in

2шт.

23

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

THRUST WASHER

2шт.

24a

K963522

SHAFT

STUB AXLE ASSEMBLY, without brake flange, Includes: Ref. 25 & 26A

2шт.

25

K906568

RING

DIRT EXCLUDER

1шт.

26a

K906569

SLEEVE

oil seal

1шт.

24b

K963408

SHAFT

STUB AXLE ASSEMBLY, with front brake flange, Includes: Ref. 26B & 27

2шт.

26b

K943500

SLEEVE

oil seal

1шт.

27

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

'O' RING, 2 in internal dia.

2шт.

K962985

BEARING ASSY

BEARING AND SEAL PACK, Includes: Ref. 28 & 29

2шт.

28

K620046

BEARING

TAPER ROLLER BEARING

4шт.

29

K623450

OIL SEAL

OIL SEAL, 2-1/8 x 3 x 1/2 in

2шт.

30a

K910176

HUB

FRONT HUB

2шт.

30b

K943501

HUB

FRONT HUB (four wheel brakes)

2шт.

31

K626673

WASHER

3/4 in, special

2шт.

32

K617157

NUT

SLOTTED NUT, 3/4 UNF

2шт.

K623603

PIN

SPLIT PIN, 11/64 x 1-1/8 in, part of K962985

2шт.

33

K908913

CAP

HUB CAP

2шт.

34

K15344

GASKET,0.25mm Thk

part of K962985

2шт.

35

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Front hub 1/4"-28 NPT x .54" lg

2шт.

36a

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

WHEEL BOLT, 1/2 UNC x 1 in

12шт.

36b

K971809

WHEEL BOLT

WHEEL BOLT, 1/2 UNC x 2-1/4 in (four wheel brakes)

12шт.

K628086

PLUG,Cap, .848" OD

PLASTIC PLUG, beam extension holes

12шт.
