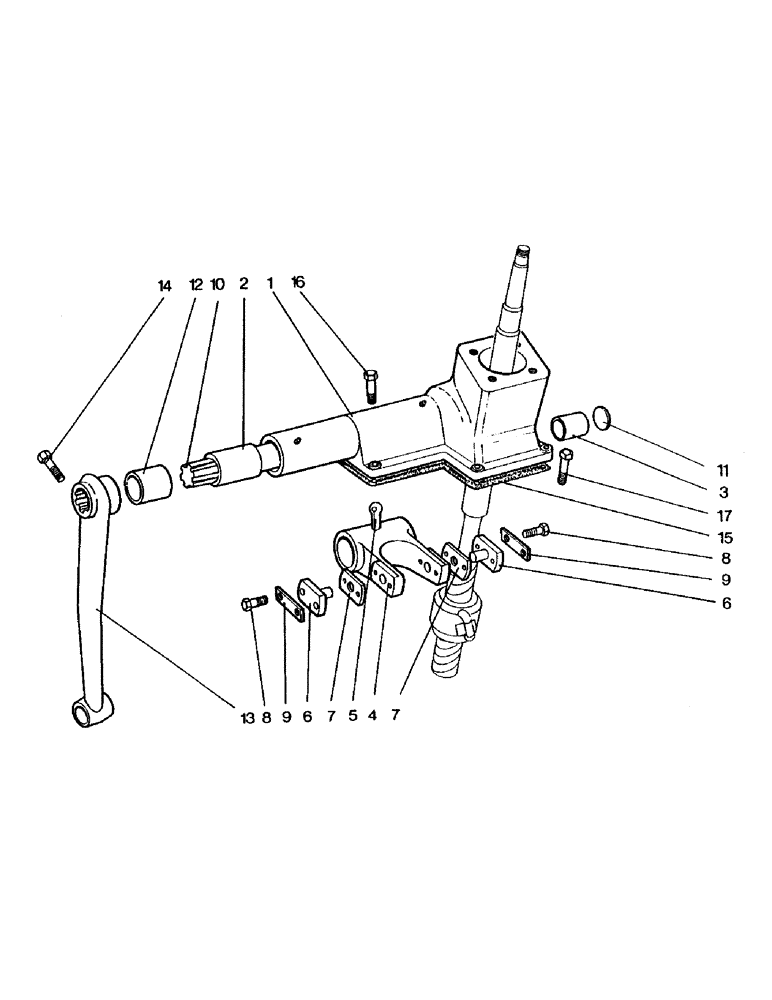

Запчасти Case IH 885 (H04) - STEERING AND FRONT AXLE, STEERING-BOX AND DROP ARM, 885, 990, 995 AND 996 TRACTORS Steering & Front Axle

1a

K962511

HOUSING

STEERING-BOX, with bushes (990, 995, 996)

1шт.

1b

K962512

BOX

STEERING-BOX, with bushes (885)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

3шт.

2

K621301

BUSHING

BUSH, long, drop arm shaft

2шт.

3

K621300

BUSHING

BUSH, short, drop arm shaft

2шт.

4a

K943909

LEVER

ROCKER ARM (990, 995, 996, TSB 36 steering)

1шт.

5a

K606406

SCREW

GRUB SCREW, 3/8 UNC x 5/8 in, special (990, 995, 996, TSB 36 steering)

1шт.

4b

K905646

NO LONGER SERVICED

ROCKER ARM (990, 995, 996, TSB 36 steering)

1шт.

4c

K944419

ROCKER

ARM (885)

1шт.

5b

K26232

PIN

SPLIT PIN, 3/16 x 2-1/4 in

1шт.

6

K912108

BALL

PEG

2шт.

7a

K900945

GASKET

SHIM, 0.003 in (sets)

2шт.

7b

K900946

SHIM,.005" Thk

(Sets) .005" Thk

2шт.

7c

K900947

GASKET

SHIM, 0.007 in (sets)

2шт.

7d

K900948

SHIM,.010" Thk

(Sets) .010" Thk

2шт.

8

K602702

SCREW

SETSCREW, 1/4 UNC x 5/8 in

4шт.

9

K912109

WASHER

TABWASHER

2шт.

10a

K943910

SHAFT

DROP ARM SHAFT (990, 995, 996, TSB 36 Steering)

1шт.

10b

K902673

ARM

DROP ARM SHAFT (990, 995, 996, TSB 36 Steering)

1шт.

10c

K913730

SHAFT

DROP ARM SHAFT (885)

1шт.

11

K10050

PLUG

WELCH PLUG, 1-1/4 in

1шт.

12a

K86963

LARGE HOSE

DUST SHIELD, drop arm shaft (990, 995, 996)

1шт.

12b

K15596

RING,3.63mm Thk x 31.34mm ID

'O' RING, 1-1/4 in internal dia. (885)

1шт.

K915707

BUSHING

SPACER, drop arm shaft (885)

1шт.

13a

K943911

ARM

DROP ARM (990, 995, 996, TSB 36 steering)

1шт.

13b

K901140

ARM

DROP ARM (990, 995, 996, TSB 36 Steering)

1шт.

13c

K924970

ARM

DROP ARM (885)

1шт.

14a

K600412

BOLT

3/8 UNC x 2-1/2 in, drop arm to shaft (990, 995, 996, TSB 36 steering)

1шт.

280136

NUT,3/8"-16, G8

Drop arm to shaft (990, 995, 996, TSB 36 Steering) 3/8"-16, G8

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, drop arm to shaft (990, 995, 996, TSB 36 Steering)

1шт.

14b

K600808

BOLT

1/2 UNC x 2-1/4 in, drop arm to shaft (885, 990, 995, 996, TSB 36 Steering)

1шт.

K910646

WASHER

1/2 in, special, drop arm to shaft (885, 990, 995, 996, TSB 36 Steering)

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, drop arm to shaft (885, 990, 995, 996, TSB 36 Steering)

1шт.

15a

K89395

GASKET

(990, 995, 996)

1шт.

15b

K914138

GASKET

(885)

1шт.

16a

K600412

BOLT

SETSCREW, 3/8 UNC x 2-1/2 in, steering-box to gearbox cover (990, 995, 996)

2шт.

K622042

RING

DOWEL, steering-box to gearbox cover (990, 995, 996)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, steering-box to gearbox cover (990, 995, 996)

1шт.

K626521

SEALING WASHER

ING WASHER, 3/8 in, steering-box to gearbox cover (990, 995, 996)

1шт.

17a

K600403

BOLT

3/8 UNC x 1-3/8 in, steering-box to gearbox cover (990, 995, 996)

4шт.

16b

K600414

BOLT

3/8 UNC x 2-3/4 in, steering-box to gearbox cover (885)

2шт.

K622042

RING

DOWEL, steering-box to gearbox cover (885)

2шт.

K600410

BOLT

3/8 UNC x 2-1/4 in, steering-box to gearbox cover (885)

2шт.

17b

K600404

BOLT

3/8 UNC x 1-1/2 in, steering-box to gearbox cover (885)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, steering-box to gearbox cover (885)

6шт.
