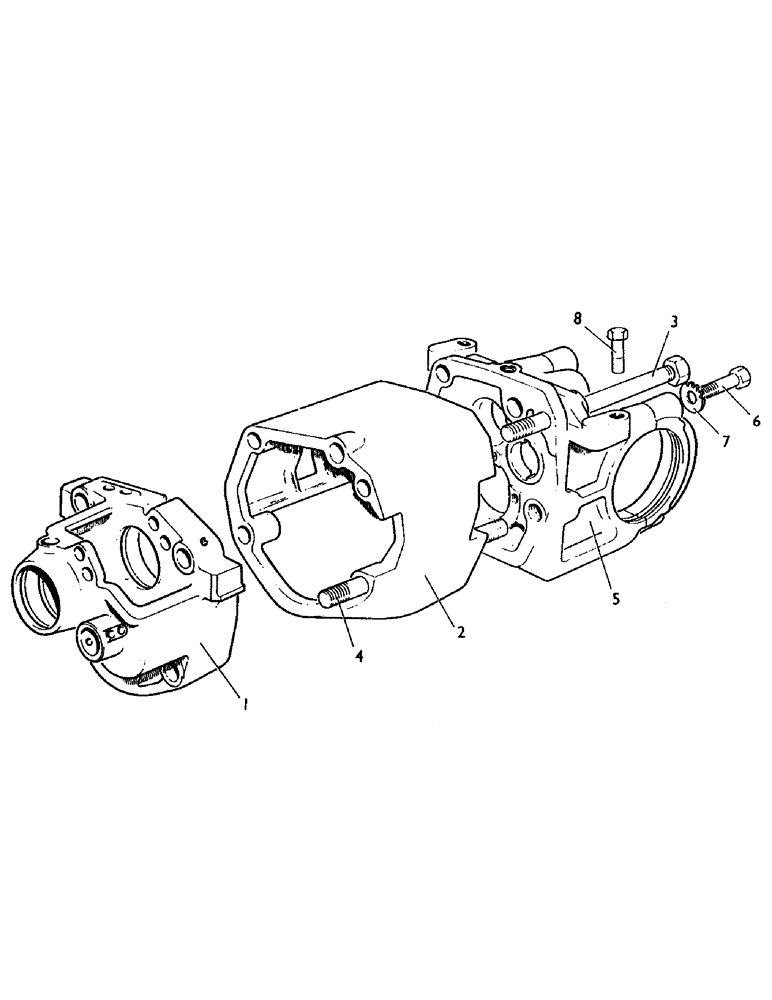

Запчасти Case IH 885 (C02) - GEARBOX, 885, 990, 995 AND 996 TRACTORS Gearbox

K964952

GEARBOX

complete, 6-speed synchromesh (Livedrive)

1шт.

K964955

GEARBOX

complete, 6-speed non-synchromesh (non-Livedrive)

1шт.

K964951

GEARBOX

complete, 12-speed synchromesh (Livedrive)

1шт.

1

K929944

PLATE

END PLATE, front, 12-speed, gearbox case

1шт.

1

K929945

PLATE

END PLATE, front, 6-speed, gearbox case

1шт.

2

K928437

BEARING HOUSING

12-speed, gearbox case

1шт.

3

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in., housing to end plate, gearbox case

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., housing to end plate, gearbox case

2шт.

4

K928339

LARGE PIN

SPACING BAR, top, gearbox case

2шт.

5

K928338

SHAFT

SPACING BAR, bottom, gearbox case

2шт.

K607331

NUT

NYLOC NUT, 5/8 UNC, gearbox case

6шт.

6

K963487

PLATE

END PLATE, rear, with bearing caps, supersedes K962980, gearbox case

1шт.

7

K601240

BOLT

5/8 UNC x 3-1/4 in., caps to end plate, gearbox case

4шт.

8

K626389

BEARING WASHER

TABWASHER, caps to end plate, gearbox case

4шт.

9

K601306

BOLT

5/8 UNC, special, gearbox to main frame, case

2шт.

K920656

BUSHING

BUSH, gearbox to main frame, case

2шт.

K626239

SHIM,.010" Thk

Gearbox case .010" Thk

1шт.
