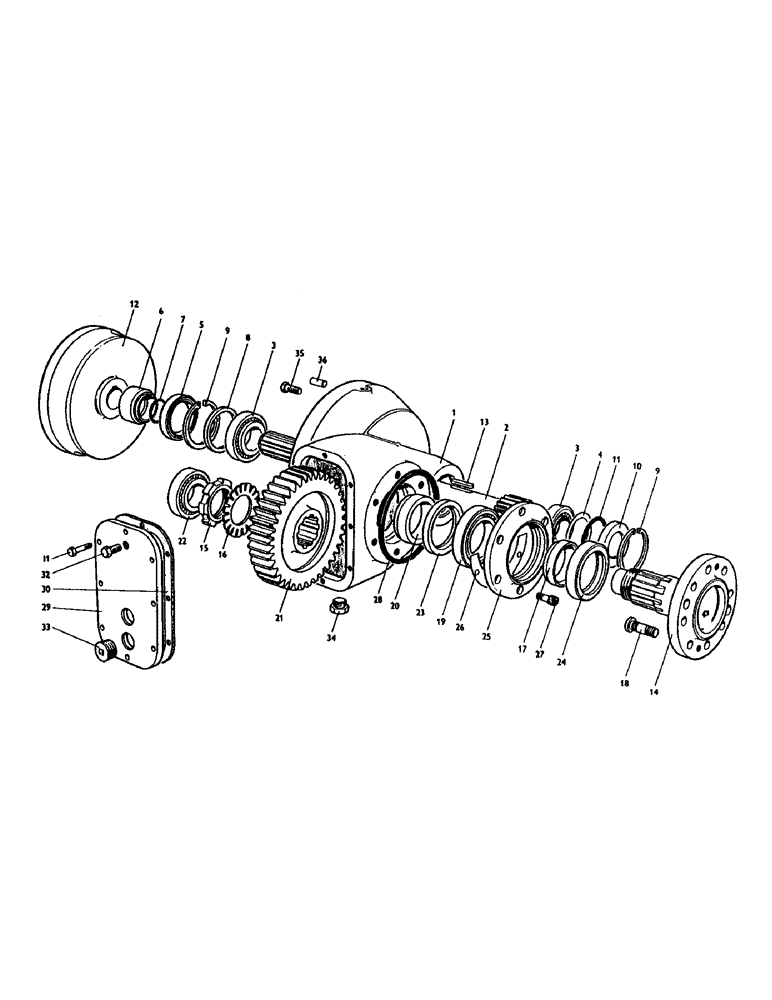

Запчасти Case IH 885 (D02) - FINAL DRIVES, FINAL DRIVE REDUCTION UNITS, 885 TRACTORS Final Drive Reductions

1

K929042

CASE

2шт.

2

K929043

SHAFT

SPUR PINION SHAFT, (9 teeth) (9/37 ratio)

2шт.

3

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING

4шт.

4a

K907514

SHIM,.003" Thk

1шт.

4b

K907515

SHIM,.010" Thk

1шт.

5

K623455

SEAL

OIL SEAL, 2-1/2 x 3-1/4 x 3/8 in.

2шт.

6

K929046

COLLAR

2шт.

7

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

'O' RING, 1-3/4 in. internal dia.

2шт.

8

K904256

SPACER

DISTANCE PIECE

2шт.

9

K13042

RING, SNAP

CIRCLIP, 3-1/4 in. internal dia.

4шт.

10

K929045

COVER

END COVER

2шт.

11

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING, 3 in. internal dia.

2шт.

12

K905641

BRAKE

DRUM, 1-3/4 in. wide

2шт.

13

K19615

KEY

11/32 x 1/2 x 2 in., 1-3/4 in. brake drum

2шт.

14

K963569

SHAFT ASSY.

FINAL DRIVE SHAFT, with ring nut and collar, Includes: Ref. 15 - 17

2шт.

15

K13368

NUT

RING NUT, 2-1/4 in., special

2шт.

16

K13367

WASHER

TABWASHER

2шт.

17

K905287

SPLIT COLLAR

COLLAR

2шт.

18

K611266

BOLT

5/8 UNF x 2-1/8 in., special

16шт.

K617171

WHEEL NUT

5/8 UNF, wheel fixing

16шт.

19

K19185

TAPERED BEARING

TAPERED ROLLER BEARING

2шт.

20

K929048

SLEEVE

final drive shaft

2шт.

21

K61771

WHEEL

SPUR WHEEL, (37 teeth) (9/37 ratio)

2шт.

22

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING

2шт.

23

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

OIL SEAL, 90 x 110 x 12mm

2шт.

Ref #23 - Mfg # GAC 90-112

1шт.

24

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

OIL SEAL, 3-1/4 x 4-1/4 x 5 in., outer

2шт.

25

K929044

HOUSING

oil seal

2шт.

26a

K902772

SHIM,.003" Thk

1шт.

26b

K902773

SHIM,.006" Thk

1шт.

26c

K902774

SHIM,.009" Thk

1шт.

26d

K902775

GASKET

SHIM, 0.015 in.

1шт.

26e

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

0.030 in.

1шт.

27

K606894

SCREW

BOLT, 7/16 UNC, Wedglock, Serial Range: housing-case

12шт.

28

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

'O' RING, 6-1/2 in. internal dia., housing to case

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

29

K921755

COVER

2шт.

30

K923220

GASKET

2шт.

31

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in.

16шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

16шт.

32

K907203

PLUG

VENT PLUG, 1/2 UNC

2шт.

K19501

WASHER

SEALING WASHER, 1/2 in.

2шт.

33

K12362

PLUG

TAPERED PLUG, 1 in. BSP

2шт.

34

K623825

PLUG

FLANGED PLUG, 1/2 BSP

2шт.

K626793

WASHER

SEALING WASHER, 7/8 in.

2шт.

K628085

PLUG,Cap, .458" OD

PLASTIC PLUG, 1/2 in., stabiliser bracket holes

6шт.

K628092

PLUG,Cap, .547" OD

PLASTIC PLUG

2шт.

35

K603107

BOLT,1/2" x 1 3/8"

SETSCREW, 1/2 UNC x 1-3/8 in., case to rear axle

20шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in., case to rear axle

20шт.

36

K11482

PIN

DOWEL, 7/16 x 1-1/4 in., case to rear axle

4шт.
