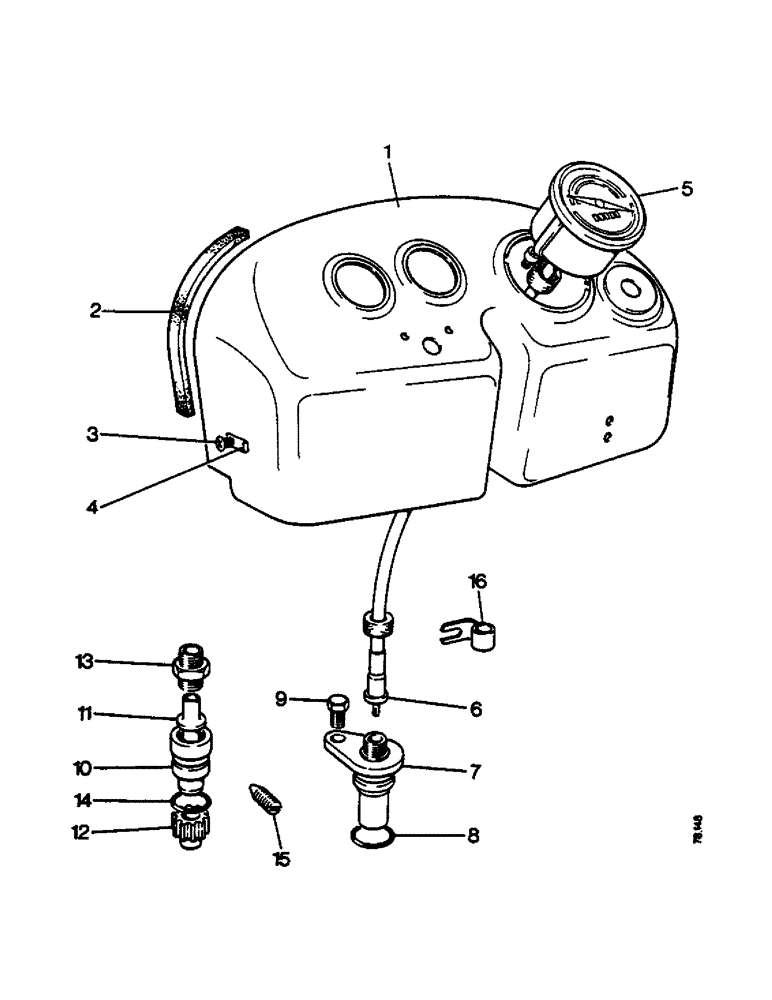

Запчасти Case IH 885 (F16) - ENGINE CONTROLS AND INSTRUMENTS, INSTRUMENT PANEL AND ENGINE SPEED INDICATOR - ALL MODELS Engine Controls & Instruments
№
Артикул
Название
Примечание
Количество
1a
K964986
PANEL
INSTRUMENT PANEL, replaces K962814 (1212)
1шт.
1b
K964987
PANEL
INSTRUMENT PANEL, replaces K962607 (1210)
1шт.
1c
K948116
PANEL
INSTRUMENT PANEL, replaces K943370 (996)
1шт.
1d
K948109
PANEL
INSTRUMENT PANEL, replaces K928132 (990, 995)
1шт.
1e
K948451
PANEL
INSTRUMENT PANEL, replaces K943349 (885 diesel)
1шт.
1f
K948452
PANEL
INSTRUMENT PANEL, replaces K943331 (885 gasoline)
1шт.
Ref #1e & 1f - K948451 & K948452 Panels are exactly the same except K948452 has an 25/64" extra hole for the K691959 Plug. 10/17/95
1шт.
2
K913391
STRIP
SEATING STRIP, 9 in, instrument panel to fuel tank
2шт.
K946160
STRIP
SEATING STRIP, 4 in, instrument panel to fuel tank
2шт.
3
K615403
SCREW
No. 10 UNF x 3/8 in, instrument panel to fuel tank
2шт.
K615404
SCREW
No. 10 UNF x 1/2 in, instrument panel to fuel tank
2шт.
K626572
WASHER
LOCKWASHER, 3/16 in, instrument panel to fuel tank
2шт.
4
K624583
NUT
CAPTIVE NUT, No. 10 UNF
4шт.
5a
K942232
ELECTRICAL GAUGE
ENGINE SPEED INDICATOR, (AC-Delco 7979160)
1шт.
Ref #5a - Use K942227 Tach with K942228 Std thread cable, or K951522 Metric thread cable. 10/17/95
1шт.
5b
K925101
ELECTRICAL GAUGE
SPEEDOMETER, (AC-Delco 7979164) (highway tractor)
1шт.
6a
K948533
CABLE
complete, metric, 48-1/2 in
1шт.
Used on model 1210, S/N 729773 and after
1шт.
Used on model 990, S/N 866384 and after
1шт.
Used on model 1212, S/N 1004296 and after
1шт.
Used on model 995, S/N 934287 and after
1шт.
Used on model 885G, S/N 651757 and after
1шт.
Used on model 885, S/N 636557 and after
1шт.
Used on model 996, S/N 987778 and after
1шт.
K948534
CABLE
inner, metric, 49-3/4 in (AC-Delco 130L45)
1шт.
Used on model 1210, S/N 729773 and after
1шт.
Used on model 990, S/N 866384 and after
1шт.
Used on model 1212, S/N 1004296 and after
1шт.
Used on model 995, S/N 934287 and after
1шт.
Used on model 885G, S/N 651757 and after
1шт.
Used on model 885, S/N 636557 and after
1шт.
Used on model 996, S/N 987778 and after
1шт.
6b
K947409
FLEXIBLE DRIVE SHAFT
CABLE, complete, Whitworth, 48-1/2 in (AC-Delco 7970855) (power red)
1шт.
Used on model 995, up to S/N 934287
1шт.
Used on model 1210, up to S/N 729773
1шт.
Used on model 990, up to S/N 866384
1шт.
Used on model 1212, up to S/N 1004296
1шт.
Used on model 885, up to S/N 636557
1шт.
Used on model 885G, up to S/N 651757
1шт.
Used on model 996, S/N 987778 and after
1шт.
K942234
CABLE
inner, Whitworth, 49-3/4 in (AC-Delco 7962532) (power red)
1шт.
Used on model 995, up to S/N 934287
1шт.
Used on model 1210, up to S/N 729773
1шт.
Used on model 990, up to S/N 866384
1шт.
Used on model 1212, up to S/N 1004296
1шт.
Used on model 885, up to S/N 636557
1шт.
Used on model 885G, up to S/N 651757
1шт.
Used on model 996, S/N 987778 and after
1шт.
6c
K947408
CABLE
complete, Whitworth, 36-1/2 in (AC-Delco 7979151) (early 885)
1шт.
K942236
CABLE
inner, Whitworth, 37-3/4 in (AC-Delco 7979152) (early 885)
1шт.
K10518
BUCKLE
CLIP
1шт.
7a
K928253
CONNECTOR, ELEC
BRACKET (except 885)
1шт.
Used on model 990, S/N E41199 and after
1шт.
Used on model 995, S/N E41023 and after
1шт.
Used on model 996, S/N E55835 and after
1шт.
Used on model 1210 (Bosch), S/N E24207 and after
1шт.
Used on model 1212, S/N E18319 and after
1шт.
Used on model 1210, S/N E25713 and after
1шт.
8a
K16351
O-RING,3.53mm Thk x 24.99mm ID
'O' RING, 1 in internal dia. (except 885)
2шт.
Used on model 990, S/N E41199 and after
1шт.
Used on model 995, S/N E41023 and after
1шт.
Used on model 996, S/N E55835 and after
1шт.
Used on model 1210 (Bosch), S/N E24207 and after
1шт.
Used on model 1212, S/N E18319 and after
1шт.
Used on model 1210, S/N E25713 and after
1шт.
9a
K928254
SCREW,7/16" - 14 x 1 5/16"
LOCATING SCREW, 7/16 UNC (except 885)
1шт.
Used on model 990, S/N E41199 and after
1шт.
Used on model 995, S/N E41023 and after
1шт.
Used on model 996, S/N E55835 and after
1шт.
Used on model 1210 (Bosch), S/N E24207 and after
1шт.
Used on model 1212, S/N E18319 and after
1шт.
Used on model 1210, S/N E25713 and after
1шт.
425-147
JAM NUT,Jam, 7/16"-14, G5
LOCKNUT, 7/16 UNC (except 885)
1шт.
Used on model 990, S/N E41199 and after
1шт.
Used on model 995, S/N E41023 and after
1шт.
Used on model 996, S/N E55835 and after
1шт.
Used on model 1210 (Bosch), S/N E24207 and after
1шт.
Used on model 1212, S/N E18319 and after
1шт.
Used on model 1210, S/N E25713 and after
1шт.
K19483
SPRING WASHER
SPRING WASHER, 7/16 in (except 885)
1шт.
Used on model 990, S/N E41199 and after
1шт.
Used on model 995, S/N E41023 and after
1шт.
Used on model 996, S/N E55835 and after
1шт.
Used on model 1210 (Bosch), S/N E24207 and after
1шт.
Used on model 1212, S/N E18319 and after
1шт.
Used on model 1210, S/N E25713 and after
1шт.
7b
K910172
BRACKET
(except 885)
1шт.
Used on model 990, up to S/N E41199
1шт.
Used on model 995, up to S/N E41023
1шт.
Used on model 996, up to S/N E55835
1шт.
Used on model 1210, up to S/N E25713
1шт.
Used on model 1210 (Bosch), up to S/N E24207
1шт.
Used on model 1212, up to S/N E18319
1шт.
8b
K16351
O-RING,3.53mm Thk x 24.99mm ID
'O' RING, 1 in internal dia. (except 885)
1шт.
Used on model 990, up to S/N E41199
1шт.
Used on model 995, up to S/N E41023
1шт.
Used on model 996, up to S/N E55835
1шт.
Used on model 1210, up to S/N E25713
1шт.
Used on model 1210 (Bosch), up to S/N E24207
1шт.
Used on model 1212, up to S/N E18319
1шт.
Used on model 990, up to S/N E41199
1шт.
Used on model 995, up to S/N E41023
1шт.
Used on model 996, up to S/N E55835
1шт.
Used on model 1210, up to S/N E25713
1шт.
Used on model 1210 (Bosch), up to S/N E24207
1шт.
Used on model 1212, up to S/N E18319
1шт.
K19481
SPRING WASHER
SPRING WASHER, 5/16 in (except 885)
1шт.
Used on model 990, up to S/N E41199
1шт.
Used on model 995, up to S/N E41023
1шт.
Used on model 996, up to S/N E55835
1шт.
Used on model 1210, up to S/N E25713
1шт.
Used on model 1210 (Bosch), up to S/N E24207
1шт.
Used on model 1212, up to S/N E18319
1шт.
10
K908181
HOUSING
(885)
1шт.
11
K908182
DRIVE
SPINDLE (885)
1шт.
12
K908183
DRIVE
N GEAR, (13 teeth) (885)
1шт.
K623933
SPRING
PIN, 1/8 x 5/8 in (885)
1шт.
13a
K948532
ADAPTER
ADAPTOR, housing to cable, metric (885)
1шт.
Used on model 885G, S/N 651757 and after
1шт.
Used on model 885, S/N 636557 and after
1шт.
13b
K620008
ADAPTER
ADAPTOR, housing to cable, Whitworth (885)
1шт.
Used on model 885, up to S/N 636557
1шт.
Used on model 885G, up to S/N 651757
1шт.
K19502
WASHER
FIBRE WASHER, 7/8 in (885)
1шт.
14
K24556
O-RING,0.734" ID x 1.012" OD x 0.139"
'O' RING, 3/4 in internal dia. (885)
1шт.
15a
K928265
SCREW,5/16" - 18 x 1-1/16"
special, 5/16 UNC (885)
1шт.
Used on model 885G, S/N 651757 and after
1шт.
Used on model 885, S/N 636557 and after
1шт.
15b
K908184
SCREW
special, 5/16 UNC (885)
1шт.
Used on model 885, up to S/N 636557
1шт.
Used on model 885G, up to S/N 651757
1шт.
K607081
LOCK NUT
LOCKNUT, 5/16 UNC (885)
1шт.
16
K917954
CLIP
cable to cylinder block (885)
1шт.
K602982
SCREW,3/8" - 16 x 3/4", Gr S
SETSCREW, 3/8 UNC x 3/4 in, clip to block (885)
1шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in, clip to block (885)
1шт.
K19472
WASHER
3/8 in, clip to block (885)
1шт.
See P B 11-79
1шт.
