Запчасти Case IH 885 (F04) - ENGINE CONTROLS AND INSTRUMENTS, THROTTLE AND CHOKE CONTROLS 885 GASOLINE TRACTORS Engine Controls & Instruments

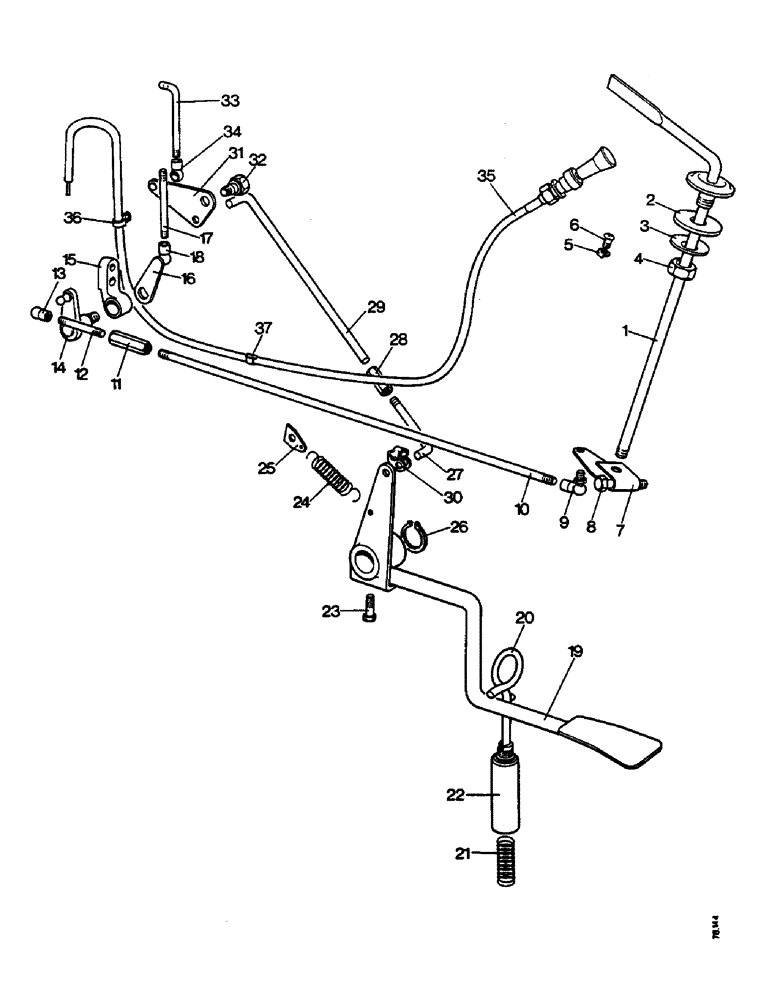

Схема запчастей Case IH 885 - (F04) - ENGINE CONTROLS AND INSTRUMENTS, THROTTLE AND CHOKE CONTROLS 885 GASOLINE TRACTORS Engine Controls & Instruments
9
11
22
25
8
16
26
6
21
35
14
18
7
36
31
34
32
29
10
37
33
3
12
1
13
2
24
27
23
20
4
28
19
5
17
30
15

Артикул

Название

Примечание

Количество

1

K942647

LEVER

HAND LEVER

1шт.

2

K85546

DISC

FRICTION DISC

1шт.

3

K626740

WASHER

BELLEVILLE WASHER, 5/8 in

1шт.

K19475

WASHER

5/8 in

1шт.

4

K623003

NUT

NYLOC NUT, 5/8 BSF

1шт.

5

K910157

WASHER

STOP PAD

2шт.

6

K605633

SCREW

1/4 UNC x 1/2 in

2шт.

K607043

NUT

1/4 UNC

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

7

K929306

LEVER

1шт.

8

K600144

BOLT

1/4 UNC x 1-3/8 in

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

K19470

WASHER

1/4 in

1шт.

K607000

NUT

1/4 UNC

1шт.

9

K621904

BALL JOINT

BALL END, 1/4 UNC

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

K617000

NUT

1/4 UNC

1шт.

10

K942649

ROD

hand, Serial Range: lever-sleeve

1шт.

K617589

NUT

1/4 UNC, left-hand

1шт.

11

K943434

SLEEVE

ADJUSTING SLEEVE, 1/4 UNC

1шт.

12

K943433

ROD

, Serial Range: sleeve-governor

1шт.

13

K621903

BALL JOINT

SOCKET END, 1/4 UNF

2шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT, 1/4 UNF

3шт.

14

K924078

LEVER

AND PIN

1шт.

15

K924082

BRACKET

1шт.

16

K924120

LEVER

1шт.

K19471

WASHER

5/16 in

1шт.

231-1435

LOCK NUT,5/16"-18, GB

NYLOC NUT, 5/16 UNC

1шт.

17

K924084

ROD

No. 10 UNF, governor

1шт.

18

K621901

BALL JOINT

BALL SOCKET, No. 10 UNF

2шт.

K617080

NUT

No. 10 UNF

2шт.

19

K942650

CUP

ACCELERATOR PEDAL

1шт.

20

K942654

PIN

LOCKING PIN, pedal lock

1шт.

21

K625214

SPRING

pedal lock

1шт.

K626915

WASHER

1/2 in special, pedal lock

1шт.

K607300

NUT

NYLOC NUT, 1/2 UNC, pedal lock

1шт.

22

K943440

GUIDE

TUBE, pedal lock

1шт.

K11516

WASHER

SHAKEPROOF WASHER, 5/8 in, pedal lock

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 UNC, pedal lock

1шт.

23

K620500

BOLT

SETSCREW, 1/4 BSF, pedal stop

1шт.

K19440

NUT

LOCKNUT, 1/4 BSF

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

K626440

WASHER

COPPER WASHER, 1/4 in

1шт.

24

K624928

SPRING

RETURN SPRING, pedal

1шт.

25

K942651

SHIM

ANCHOR, pedal spring

1шт.

K626738

WASHER

29/32 x 16 SWG, Serial Range: pedal-shaft

1шт.

K626716

WASHER

29/32 x 9 SWG, Serial Range: pedal-shaft

1шт.

26

K34454

RING, SNAP

CIRCLIP, 7/8 in external, Serial Range: pedal-shaft

1шт.

27

K942652

ROD

, Serial Range: pedal-sleeve

1шт.

K617589

NUT

1/4 UNF, left-hand

1шт.

28

K943434

SLEEVE

ADJUSTING SLEEVE, 1/4 UNF

1шт.

29

K942653

ROD

sleeve to bell crank

1шт.

30

K908778

CLIP

special

2шт.

K19470

WASHER

1/4 in

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT, 1/4 UNC

1шт.

31

K942658

LEVER

BELL CRANK LEVER

1шт.

32

K942660

PIN

PIVOT PIN, 3/8 UNF

1шт.

33

K942661

ROD

bell, Serial Range: crank-carburettor

1шт.

K19496

WASHER

3/16 in

2шт.

K19520

PIN

SPLIT PIN, 1/16 x 3/8 in

2шт.

34

K621901

BALL JOINT

SOCKET END, No. 10 UNF

1шт.

K617080

NUT

No. 10 UNF

1шт.

35

K943418

CABLE

inner and outer choke control

1шт.

36

K621698

CLIP

cable to heat shield

1шт.

37

T54520

STRAP

BUCKLE CLIP, cable to speed indicator cable (replaces K621699)

3шт.

Carburettor is K943476. Found in book 9-39012 A51 11-30-98

1шт.

Выбрано товаров: 66
