Запчасти Case IH 885 (F02) - ENGINE CONTROLS AND INSTRUMENTS, THROTTLE AND STOP CONTROLS, 885 TRACTORS Engine Controls & Instruments

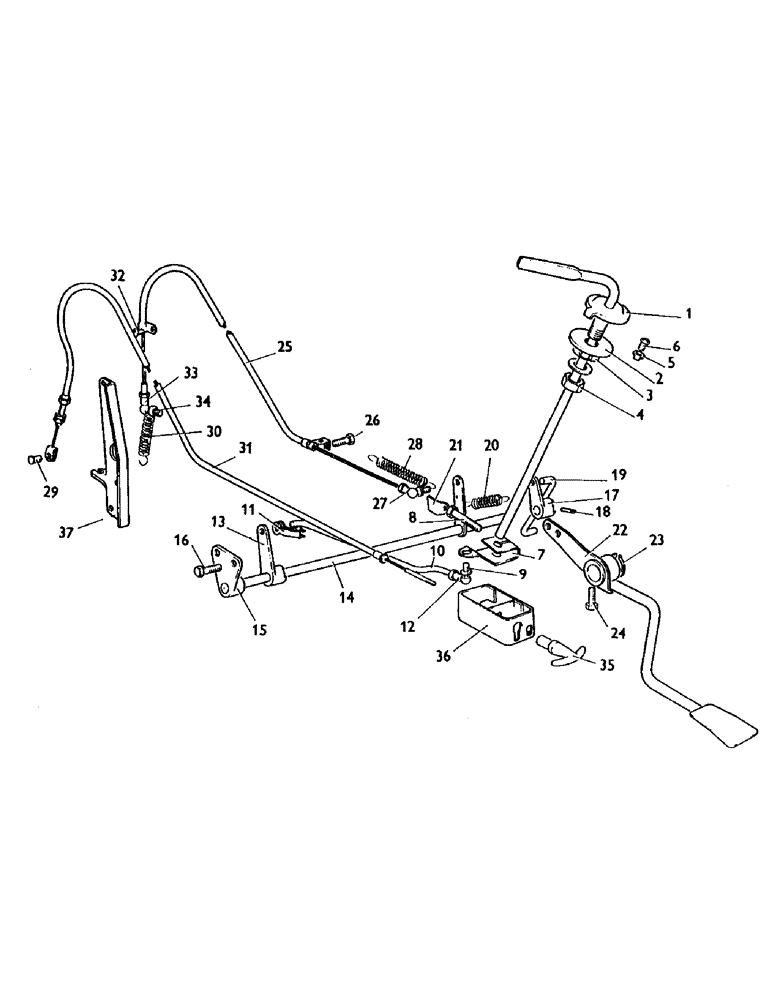

Схема запчастей Case IH 885 - (F02) - ENGINE CONTROLS AND INSTRUMENTS, THROTTLE AND STOP CONTROLS, 885 TRACTORS Engine Controls & Instruments
24
6
33
21
27
35
34
13
37
10
23
7
20
5
31
36
11
9
30
14
17
8
4
22
19
19
32
3
1
2
26
18
15
28
25
12
29

Артикул

Название

Примечание

Количество

1

K913384

LEVER

HAND LEVER

1шт.

2

K85546

DISC

FRICTION DISC

1шт.

3

K626740

WASHER

BELLEVILLE WASHER, 5/8 in

1шт.

K19475

WASHER

5/8 in

1шт.

4

K623003

NUT

NYLOC NUT, 5/8 BSF

1шт.

5

K910157

WASHER

STOP PAD

2шт.

6

K605633

SCREW

1/4 UNC x 1/2 in

2шт.

K607043

NUT

1/4 UNC

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

7

K89372

LEVER

1шт.

8

K600144

BOLT

1/4 UNC x 1-3/8 in

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

K19470

WASHER

1/4 in

1шт.

K607000

NUT

1/4 UNC

1шт.

9

K621904

BALL JOINT

BALL END, 1/4 UNF

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

K617000

NUT

1/4 UNF

2шт.

10

K943482

ROD

CONTROL ROD, hand lever to cross shaft

1шт.

11

K908778

CLIP

special

3шт.

12

K621903

BALL JOINT

SOCKET END, 1/4 UNF

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT, 1/4 UNF

1шт.

13

K928177

LEVER

1шт.

14

K943480

SHAFT

CROSS SHAFT

1шт.

K19472

WASHER

3/8 in, special

1шт.

K621587

RING, SNAP

'E' CLIP, 3/8 in external

1шт.

15

K943483

BRACKET

GUIDE BRACKET

2шт.

16

K602702

SCREW

SETSCREW, 1/4 UNC x 5/8 in, bracket to tank support

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in, bracket to tank support

4шт.

K607000

NUT

1/4 UNC, bracket to tank support

4шт.

17

K928178

LEVER

1шт.

18

K623747

SPLIT PIN/SAFETY PIN

MILLS PIN, 5/32 x 3/4 in

2шт.

19

K943877

ROD

cross, Serial Range: shaft-pedal

1шт.

K19470

WASHER

1/4 in

4шт.

K19520

PIN

SPLIT PIN, 1/16 x 3/8 in

4шт.

20

K624928

SPRING

1шт.

21

K942651

SHIM

ANCHOR BRACKET

1шт.

22

K940308

PEDAL

ACCELERATOR PEDAL

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

K626440

WASHER

COPPER WASHER, 1/4 in

1шт.

K626738

WASHER

SHIM, 0.030 in

1шт.

K626716

WASHER

7/8 in, special

1шт.

23

K34454

RING, SNAP

CIRCLIP, 7/8 in external

1шт.

24

K620500

BOLT

1/4 BSF x 1-1/8 in, special

1шт.

Ref #24 Use K610252 Bolt & K617050 Nut.

1шт.

K19440

NUT

LOCKNUT, 1/4 BSF

1шт.

25

K943463

CABLE

inner and outer, throttle control

1шт.

26

K605605

SCREW

1/4 UNC x 5/8 in, cable tube to tank support

1шт.

K607000

NUT

1/4 UNC, cable tube to tank support

1шт.

K13480

SPRING WASHER, 1/4 in, cable tube to tank support

1шт.

27

K621901

BALL JOINT

SOCKET END, No. 10 UNF

1шт.

K617080

NUT

No. 10 UNF

1шт.

28

K624926

SPRING

RETURN SPRING

1шт.

29

K913180

PIN

CLEVIS PIN

1шт.

K913184

ANCHOR

spring

1шт.

K19471

WASHER

1шт.

30

K624938

SPRING

RETURN SPRING

2шт.

31

K918846

CABLE

inner and outer, replaces K943319

1шт.

K621672

HOSE CLAMP

BUCKLE CLIP

4шт.

32

K12189

SCREW

2 BA

1шт.

K19488

SPRING WASHER

3/16 in

1шт.

K11109

NUT

2 BA

1шт.

33

K621901

BALL JOINT

SOCKET END, No. 10 UNF

1шт.

K617080

NUT

No. 10 UNF

1шт.

34

K621904

BALL JOINT

BALL END, 1/4 UNF

1шт.

K617000

NUT

1/4 UNF

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

35

K947418

HANDLE

KNOB, stop control

1шт.

K12939

WASHER

3/16 in

1шт.

K617080

NUT

No. 10 UNF

1шт.

36

K943270

BRACKET

stop control

1шт.

K626340

RING

WASHER, 3/16 in, replaces K626310

2шт.

K607040

NUT

No. 8 UNF

2шт.

37

K947353

BRACKET

injection pump controls, replaces K911884

1шт.

K617500

NUT

10 UNF special

1шт.

K612700

SET SCREW,1/4" - 28 x 3/8"

SETSCREW, 1/4 UNF x 3/8 in

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

Выбрано товаров: 76
