Запчасти Case IH 885 (K02) - DRAWBARS AND HITCHES, UNIVERSAL DRAWBARS, 885 TRACTORS Drawbars & Hitches

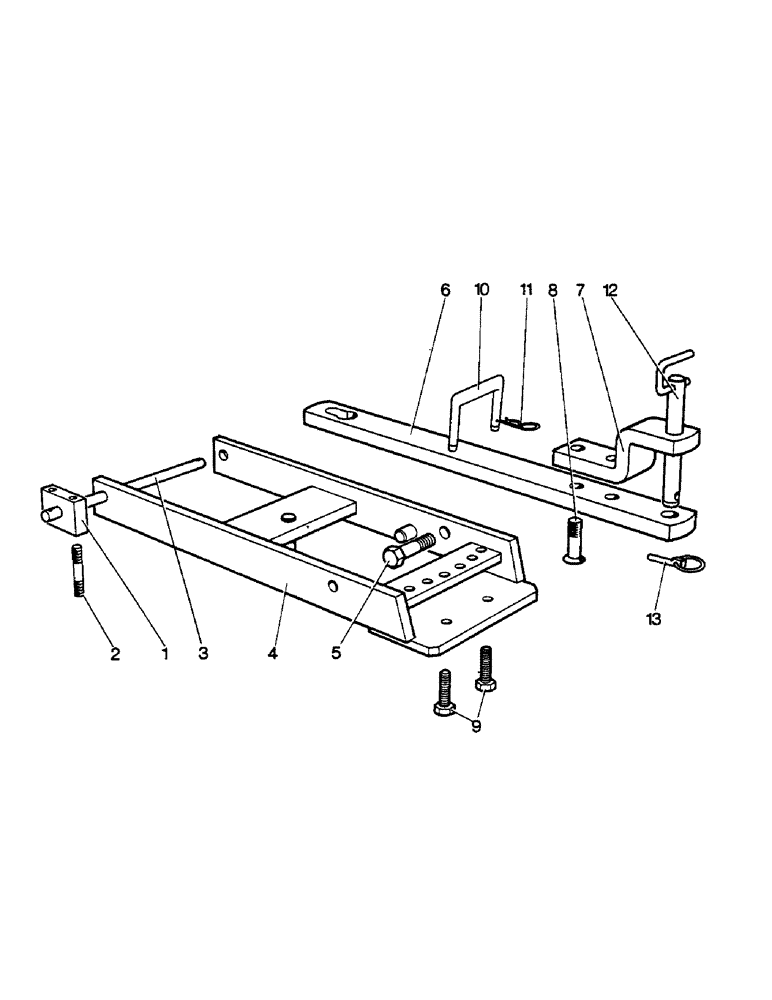

Схема запчастей Case IH 885 - (K02) - DRAWBARS AND HITCHES, UNIVERSAL DRAWBARS, 885 TRACTORS Drawbars & Hitches
7
3
8
9
1
6
5
13
12
10
11
4
2

Артикул

Название

Примечание

Количество

K931015

SPARE PART

DRAWBAR, metric (U1672)

1шт.

K931016

DRAWBAR, metric (U1677)

1шт.

K930533

DRAWBAR, Imperial (U1469)

1шт.

K930882

DRAWBAR, Imperial (U1635)

1шт.

1

K912087

HINGE

BRACKET

2шт.

2

K608508

STUD

1/2 UNC x 3-1/2 in

4шт.

K607304

NUT

NYLOC NUT, 1/2 UNC

4шт.

3

K943056

HINGE

BAR

1шт.

K19476

WASHER

3/4 in

2шт.

K26230

PIN, SPLIT (COTTER)

SPLIT PIN, 3/16 x 1-3/8 in

2шт.

4a

K946192

SUPPORT

DRAWBAR SUPPORT, metric (U1673)

1шт.

Used on model 885, S/N 631440 and after

1шт.

Used on model 885G, S/N 651529 and after

1шт.

4b

K942607

DRAWBAR, SWINGING

DRAWBAR SUPPORT, imperial (U1468)

1шт.

Used on model 885, up to S/N 631440

1шт.

Used on model 885G, up to S/N 651529

1шт.

5

K601405

BOLT

3/4 UNC x 2 3/8 in

2шт.

K19476

WASHER

3/4 in, special

2шт.

K19486

WASHER, LOCK

SPRING WASHER, 3/4 in

2шт.

K607007

NUT

3/4 UNC

2шт.

6a

K946154

DRAWBAR, SWINGING

DRAWBAR, metric

1шт.

Used on model 885, S/N 631440 and after

1шт.

Used on model 885G, S/N 651529 and after

1шт.

6b

K916515

DRAWBAR, SWINGING

DRAWBAR, imperial

1шт.

Used on model 885, up to S/N 631440

1шт.

Used on model 885G, up to S/N 651529

1шт.

6c

K946344

DRAWBAR, SWINGING

DRAWBAR, metric (Highway)

1шт.

Used on model 885, S/N 631440 and after

1шт.

Used on model 885G, S/N 651529 and after

1шт.

6d

K945615

DRAWBAR, imperial (Highway)

1шт.

Used on model 885, up to S/N 631440

1шт.

Used on model 885G, up to S/N 651529

1шт.

7

K916516

CLEVIS

BRACKET

1шт.

8

K601664

BOLT

5/8 UNC x 3-1/4 in, special

2шт.

K607463

NUT

CLEVELOC NUT, 5/8 UNC

2шт.

9

K601332

BOLT

5/8 UNC x 4 in

2шт.

Used on model 885, S/N 631440 and after

1шт.

Used on model 885G, S/N 651529 and after

1шт.

K607306

NUT

NYLOC NUT, 5/8 UNC

2шт.

Used on model 885, S/N 631440 and after

1шт.

Used on model 885G, S/N 651529 and after

1шт.

10

K942615

STOP

PIN

1шт.

Used on model 885, up to S/N 631440

1шт.

Used on model 885G, up to S/N 651529

1шт.

11

K942614

SPRING

CLIP, stop pin

1шт.

Used on model 885, up to S/N 631440

1шт.

Used on model 885G, up to S/N 651529

1шт.

12

K916566

PIN

HITCH PIN

1шт.

13

K920359

PIN

LINCH PIN AND RING

1шт.

Выбрано товаров: 49
