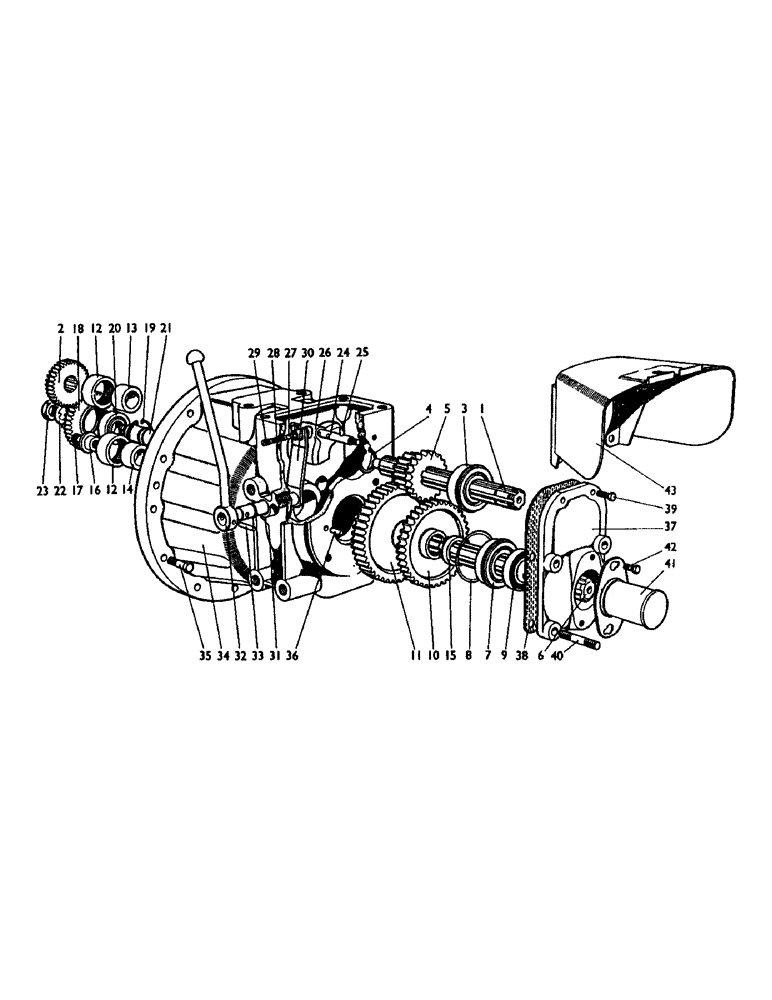

Запчасти Case IH 885 (J02) - PTO AND BELT PULLEYS, POWER TAKE-OFF UNITS, 885 TRACTORS Auxiliary Drive Units

K962921

PTO

MULTI-SPEED PTO UNIT, complete

1шт.

K962920

GEAR

SINGLE-SPEED PTO UNIT, complete

1шт.

1

K906735

DRIVE SHAFT

DRIVESHAFT

1шт.

2

K908094

GEAR

PUMP DRIVE GEAR, (29 helical teeth)

1шт.

3

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

with snap ring

1шт.

not serviced separately.

1шт.

4

K621535

RING, SNAP

CIRCLIP, 1-3/64 in external

4шт.

5a

K906688

GEAR

SPEED CHANGE PINION (multi-speed)

1шт.

5b

K921600

GEAR

SPEED CHANGE PINION (single-speed)

1шт.

6

K906691

SHAFT

DRIVE SHAFT

1шт.

7

K19197

BEARING, BALL

BALL BEARING, with snap ring

1шт.

8a

K915320

SHIM,.003" Thk

1шт.

8b

K915321

SHIM,.005" Thk

1шт.

9

K11119

OIL SEAL

OIL SEAL, 1-5/8 x 2-1/2 x 5/16 in

1шт.

10

K906689

GEAR

(38 teeth) (multi-speed)

1шт.

11

K906692

GEAR

(44 teeth)

1шт.

12

K620266

NEEDLE BEARING

NEEDLE ROLLER BEARING

2шт.

13

K906693

RING RACE

INNER RACE, driveshaft

1шт.

14

K906694

BEARING

INNER RACE, driven shaft

1шт.

15a

K904431

BUSHING

DISTANCE PIECE (multi-speed)

1шт.

15b

K921602

BUSHING

DISTANCE PIECE (single speed)

1шт.

16

K909349

PIN

RETAINING WASHER, with locking pin

1шт.

17

K606894

SCREW

CAPSCREW, 7/16 UNC x 1 in

1шт.

18

K923442

GEAR

IDLER GEAR, (36 teeth)

1шт.

19

K621436

RING, SNAP

CIRCLIP, 62 mm internal

2шт.

20

K620102

BEARING, BALL

BALL BEARING

1шт.

21a

K923441

PIN

BEARING PIN (from tractor No. 627459)

1шт.

K11128

CIRCLIP

1 in external (from tractor No. 627459)

1шт.

K626200

SHIM,.002" Thk

(From tractor No. 627459) .002" Thk

1шт.

K626203

SHIM,.010" Thk

(From tractor No. 627459) .010" Thk

1шт.

21b

K906697

PIN

BEARING PIN (to tractor No. 627458)

1шт.

22

K906698

WASHER

TABWASHER

1шт.

23

K617026

NUT

SPECIAL NUT, 3/4 UNF

1шт.

24

K942469

SELECTOR

ROD

1шт.

K921603

BUSHING

DISTANCE TUBE, selector rod (single speed)

1шт.

25

K906700

PIN

RETAINING PIN

1шт.

26

K906701

SELECTOR

FORK

1шт.

27

K17063

BALL

STEEL BALL, 1/4 in

1шт.

28

K24831

SPRING

1шт.

29

K606021

SCREW

GRUBSCREW, 5/16 UNC

1шт.

30a

K943717

SELECTOR

LEVER

1шт.

Used on model 885, S/N 621637 and after

1шт.

30b

K922501

SELECTOR

LEVER

1шт.

Used on model 885, up to S/N 621637

1шт.

31

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

'O' RING, 3/4 in internal dia.

1шт.

32a

K943716

LEVER

OPERATING LEVER

1шт.

Used on model 885, S/N 621637 and after

1шт.

32b

K943043

LEVER

OPERATING LEVER

1шт.

Used on model 885, up to S/N 621637

1шт.

33

K623726

PIN

MILLS PIN, 1/4 x 1-1/2 in

1шт.

34

K921599

PTO

CASE

1шт.

K922591

GASKET

case and support plate to rear axle

1шт.

35

K600605

BOLT

7/16 UNC x 1-7/8 in, case and support plate to rear axle

11шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, case and support plate to rear axle

11шт.

36

K14577

DOWEL

1/4 in

2шт.

37

K906686

COVER

END COVER

1шт.

38

K924217

GASKET

1шт.

39

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

1шт.

K15498

SEALING WASHER

ING WASHER, 5/16 in

1шт.

40a

K608311

STUD

7/16 UNC x 2-5/16 in (multi-speed)

4шт.

40b

K600604

SCREW

BOLT, 7/16 UNC x 1-3/4 in (single speed)

4шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in

4шт.

280717

NUT,7/16"-14, G5

4шт.

41

K909111

COVER

PTO shaft

1шт.

K626682

WASHER

5/16 in

2шт.

42

K602840

SCREW

SETSCREW, 5/16 UNC x 1/2 in

2шт.

43

K906893

GUARD

PTO GUARD (U378 (906988)

1шт.

K928304

SHIM

GUARD, hydraulic filter switch

1шт.
