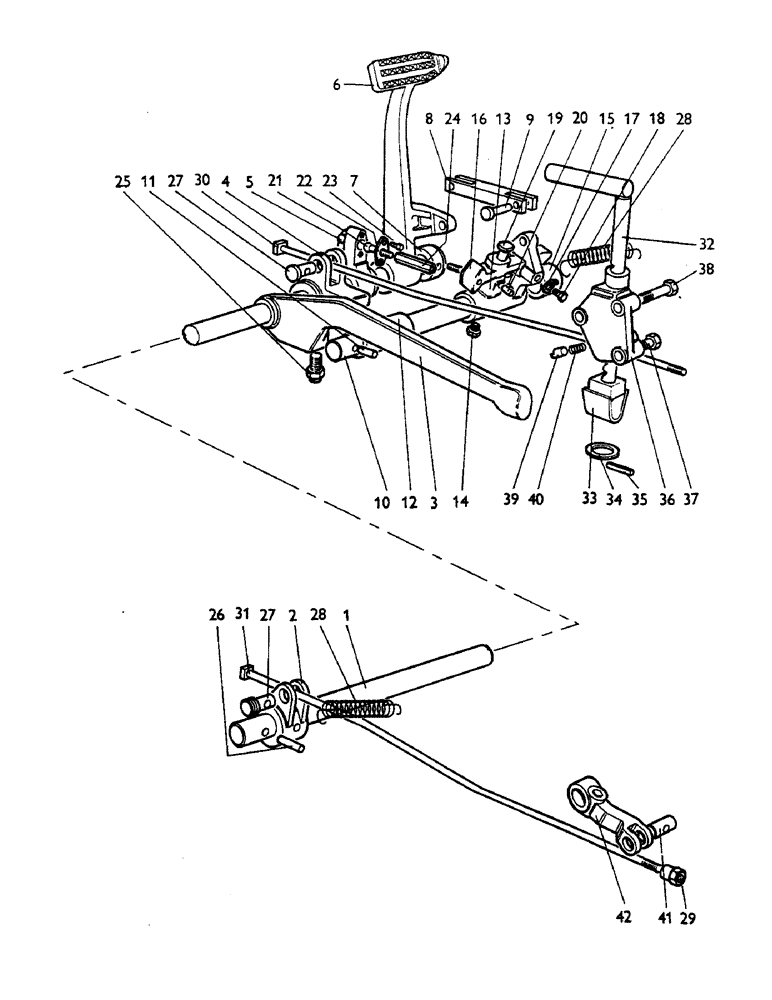

Запчасти Case IH 885 (G06) - BRAKES, BRAKE LINKAGE - FOUR-WHEEL BRAKES, 885 TRACTORS, OPTIONAL EQUIPMENT (5.1) - BRAKES

1

K972801

SHAFT

CROSS SHAFT

1шт.

2

K912043

LEVER

left-hand

1шт.

K12302

SHIM,.010" Thk

1шт.

3

K929826

LEVER

OPERATING LEVER, hand brake

1шт.

4

K972800

LEVER

right-hand

1шт.

5

K972799

LEVER

front brake

1шт.

6

K925065

PEDAL

BRAKE PEDAL

1шт.

7

K972805

COLLAR

1шт.

8

K972806

LINK

brake pedal

1шт.

9

K14227

PIN

CLEVIS PIN, 3/8 x 1-1/16 in

2шт.

K19472

WASHER

3/8 in

2шт.

K19528

PIN

SPLIT PIN, 3/32 x 3/4 in

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

6шт.

10

K972802

SHAFT

carrier

1шт.

11

K11113

PIN

MILLS PIN, 3/8 x 1-1/2 in

2шт.

12

K972803

BUSHING

DISTANCES TUBE, left-hand

1шт.

13

K972797

BEAM

CARRIER, compensator beam

1шт.

14

K971938

PLUG

1/4 BSP

1шт.

15

K972804

BUSHING

DISTANCE TUBE, right-hand

1шт.

16

K972798

BEAM

COMPENSATOR BEAM

1шт.

17

K971939

SHIM

Spring anchor

1шт.

18

K602803

BOLT

5/16 UNC x 3/4 in, anchor to compensator beam

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, anchor to compensator beam

1шт.

19

K971934

PIN

5/8 x 2 in

1шт.

20

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, , Mills 3/16" x 1 1/4", Type A

1шт.

21

K971935

ROD

PUSH ROD

2шт.

22

K971936

SHIM

Retaining plate

2шт.

23

K613982

SCREW

SETSCREW, No. 10 UNF x 3/8 in

4шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

4шт.

24

K972808

SLEEVE

ADJUSTING SLEEVE, long

1шт.

K617051

NUT

LOCKNUT, 5/16 UNF

2шт.

25

K606170

SCREW

GRUBSCREW, 7/16 UNC

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

LOCKNUT, 7/16 UNC

1шт.

26

K623732

PIN

MILLS PIN, 3/8 x 2 in

3шт.

27

K38639

PIN

brake rods

2шт.

28

K14809

SPRING

RETURN SPRING

2шт.

29

K607504

NUT

ADJUSTING NUT, 3/8 UNC

2шт.

280136

NUT,3/8"-16, G8

2шт.

30

K929655

BRAKE

ROD, right-hand

1шт.

31

K929563

ROD

BRAKE ROD, left-hand

1шт.

32

K916989

LEVER

HAND LEVER

1шт.

33

K949260

FORK

replaces K945873

1шт.

34

K626736

WASHER

SPHERICAL WASHER

1шт.

35a

K623892

PIN

SPRING PIN, 5/16 x 1-1/2 in, use with 945873

1шт.

35b

K623895

PIN

SPRING PIN, 5/16 x 2 in, use with 919897

1шт.

36

K912048

HOUSING

hand lever

1шт.

37

K600608

BOLT

7/16 UNC x 2-1/4 in, Serial Range: housing-frame

1шт.

38

K603005

SCREW

BOLT, 7/16 UNC x 1-1/4, Serial Range: housing-frame

2шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, Serial Range: housing-frame

3шт.

39

K909588

PAWL

1шт.

40

K14651

SPRING

1шт.

41

K14744

PIN

3/4 x 1-1/2 in, lever

2шт.

42

K928589

LEVER

CAM LEVER

2шт.

The Four-Wheel Brakes referred to in the Heading on page G7 is Not Applicable. 10/17/95

1шт.
