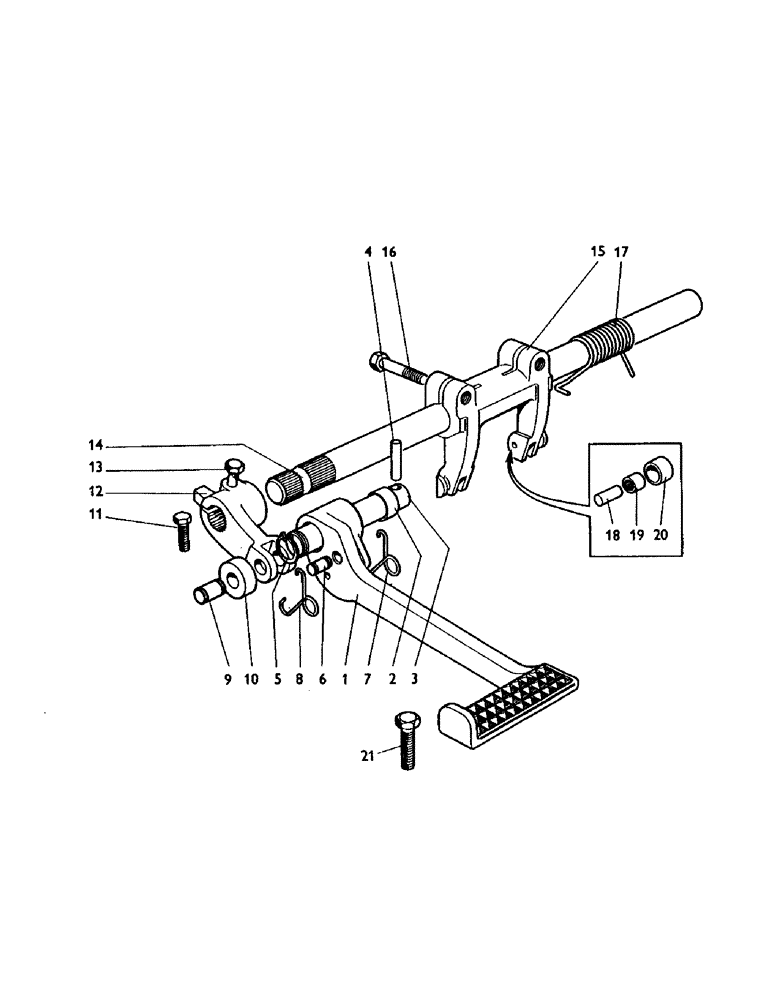

Запчасти Case IH 885 (B18) - CLUTCH, CLUTCH - FOOT CONTROL, 885 TRACTORS (03.1) - CLUTCH

1

K940394

CLUTCH

PEDAL, with bushes, replaces K945231

1шт.

2

K621371

BUSHING

BUSH

2шт.

3

K942494

LARGE PIN

FULCRUM PIN

1шт.

4

K11315

PIN

MILLS PIN, 1/4 x 1-3/4 in.

1шт.

K626716

WASHER

7/8 in., special

1шт.

5

K34454

RING, SNAP

CIRCLIP, 7/8 in. external

1шт.

6

K921686

SPRING

PIN

1шт.

7

K921684

SPRING

inner

1шт.

8

K921685

SPRING

outer

1шт.

9

K921683

PIN

1шт.

10

K921682

ROLLER

1шт.

11

K602843

SCREW

5/16 UNC x 1-1/8 in., special, pedal adjustment

1шт.

K607081

LOCK NUT

LOCKNUT, 5/16 UNC

1шт.

12

K921681

CLUTCH

LEVER

1шт.

13

K600404

BOLT

3/8 UNC x 1-1/2 in.

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

1шт.

14

K928264

SHAFT

CROSS SHAFT

1шт.

15

K905650

CLUTCH FORK

FORK

1шт.

K19607

KEY

Woodruff No. 506

2шт.

16

K600404

BOLT

3/8 UNC x 1-1/2 in.

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

2шт.

17

K921687

COIL SPRING

SPRING

1шт.

18

K900349

PIN

PIVOT PIN, clutch fork roller

2шт.

19

K620260

NEEDLE BEARING,Needle, 4.76mm ID x 8.73mm OD x 6.35mm W

NEEDLE ROLLER BEARING

2шт.

20

K900348

ROLLER,8.72mm ID x 14.29mm OD x 6.35mm L

clutch fork

2шт.

K690973

FITTING

GREASE NIPPLE, 1/4 ANF, 45deg., cross shaft bearings

2шт.

21

K602908

SCREW

SETSCREW, 3/8 UNC x 1-1/2 in., pedal stop, replaces K602905

1шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT, 3/8 UNC

1шт.
