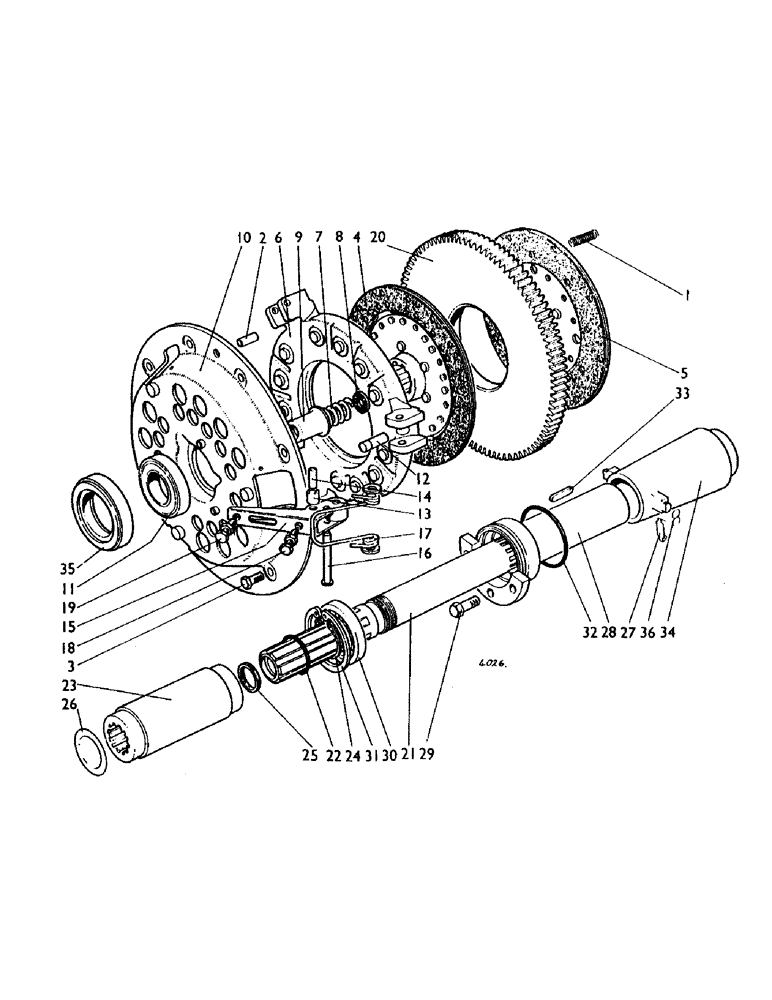

Запчасти Case IH 885 (B14) - CLUTCH, DOUBLE CLUTCH, LAYCOCK, 885 LIVEDRIVE TRACTORS (03.1) - CLUTCH

1

K13226

SPRING

flywheel

3шт.

2

K621838

PIN

DOWEL, 5/16 x 7/16 x 1-1/8 in.

2шт.

3

K602903

SCREW

BOLT, 3/8 UNC x 7/8 in.

9шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

9шт.

4

K923374

CLUTCH DISC

DRIVEN PLATE, transmission, with 10 in. Thermoid facings (replaces K947081)

1шт.

K962940

FACING

S, 10 in. Thermoid (2) and rivets (32)

1шт.

5

K926851

PLATE

DRIVEN PLATE, PTO, with 10 in. F30C facings

1шт.

K962549

FACING, CLUTCH

FACINGS, 10 in. F30C (2) and rivets (16)

1шт.

K926807

COVER

ASSEMBLY, (Laycock) (diesel), Includes: Ref. 6 - 19

1шт.

K943324

CLUTCH

COVER ASSEMBLY, (Laycock) (gasoline), Includes: Ref. 6 - 19

1шт.

6

K962535

PLATE

PRESSURE PLATE

1шт.

7

K926870

SPRING

pale green

12шт.

8

K962544

DISC

WASHER, insulating

12шт.

9

K962546

CLIP

SPRING CUP

12шт.

10

K963638

COVER

CLUTCH COVER

1шт.

11

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

cover

1шт.

12a

K964979

LARGE PIN

PLUNGER AND CIRCLIP, 1-11/16 in., use together

3шт.

Used on model 885, S/N E22186 and after

1шт.

Used on model 885G, S/N E1824 and after

1шт.

13a

K963636

LEVER

RELEASE LEVER, use together

3шт.

Used on model 885, S/N E22186 and after

1шт.

Used on model 885G, S/N E1824 and after

1шт.

14a

K963618

ROLLER

use together

3шт.

Used on model 885, S/N E22186 and after

1шт.

Used on model 885G, S/N E1824 and after

1шт.

12b

K962543

PLUNGER

AND CIRCLIP, 1-9/16 in., use together

3шт.

Used on model 885, up to S/N E22186

1шт.

Used on model 885G, up to S/N E1824

1шт.

13b

K962538

LEVER

RELEASE LEVER, use together

3шт.

For 13b, 14b & 15 See SB 19-74.

1шт.

Used on model 885, up to S/N E22186

1шт.

Used on model 885G, up to S/N E1824

1шт.

14b

K962542

ROLLER

use together

3шт.

For 13b, 14b & 15 See SB 19-74.

1шт.

Used on model 885, up to S/N E22186

1шт.

Used on model 885G, up to S/N E1824

1шт.

15

K962541

PIN

roller

3шт.

For 13b, 14b & 15 See SB 19-74.

1шт.

16

K962540

PIN

PIVOT PIN

3шт.

17

K963598

SPRING

release lever

3шт.

K626682

WASHER

5/16 in.

6шт.

K11933

PIN

SPLIT PIN, 1/8 x 5/8 in.

3шт.

18

K962994

SCREW

AND NUT, 3/8 UNF x 1 in., special, PTO clearance

3шт.

19

K963626

LOCK NUT,M10 x 1.25 x 30mm, Cl 10.9

SCREW AND NUT, 3/8 UNF x 3/4 in., special, release lever height (chrome headed)

3шт.

20

K906200

DISC

SEPARATOR PLATE

1шт.

21a

K929639

CLUTCH

DRIVESHAFT, 6-speed

1шт.

21b

K948633

CLUTCH

DRIVESHAFT, 12-speed, replaces K929634

1шт.

22

K623697

O-RING

'O' RING, 1-1/2 in. internal dia.

1шт.

23

K917434

NO LONGER SERVICED

MUFF COUPLING, 6-speed

1шт.

24

K12922

RING, SNAP

CIRCLIP, 1-3/4 in. external

2шт.

25

K89333

WASHER

FELT WASHER

1шт.

26

K902106

SHIM,.032" Thk

1шт.

27

K900359

SPRING

CLIP, bearing carrier

2шт.

28

K929644

SUPPORT

SNOUT, bearing carrier

1шт.

29

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in., support snout to frame

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., support, Serial Range: snout-frame

3шт.

30

K620190

BALL BEARING

replaces K620033

1шт.

31

K621430

CIRCLIP

75mm internal

1шт.

32

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING, 3 in. internal dia.

1шт.

33

K24866

KEY

3/16 x 5/32 x 1-1/4 in.

1шт.

34a

K952141

CARRIER

THRUST BEARING CARRIER

1шт.

Used on model 885, S/N 636891 and after

1шт.

Used on model 885G, S/N 651787 and after

1шт.

Used on model 885N, S/N 674147 and after

1шт.

35a

K600085

BEARING

THRUST BEARING

1шт.

Used on model 885, S/N 636891 and after

1шт.

Used on model 885G, S/N 651787 and after

1шт.

Used on model 885N, S/N 674147 and after

1шт.

36a

K624938

SPRING

clutch fork

1шт.

Used on model 885, S/N 636891 and after

1шт.

Used on model 885G, S/N 651787 and after

1шт.

Used on model 885N, S/N 674147 and after

1шт.

K602703

SCREW

SETSCREW, 1/4 UNC x 3/4 in.

1шт.

Used on model 885, S/N 636891 and after

1шт.

Used on model 885G, S/N 651787 and after

1шт.

Used on model 885N, S/N 674147 and after

1шт.

K952142

SLEEVE

1шт.

Used on model 885, S/N 636891 and after

1шт.

Used on model 885G, S/N 651787 and after

1шт.

Used on model 885N, S/N 674147 and after

1шт.

34b

K927058

BEARING CARRIER

THRUST BEARING CARRIER

1шт.

Used on model 885, S/N 636891 and after

1шт.

Used on model 885G, S/N 651787 and after

1шт.

Used on model 885N, S/N 674147 and after

1шт.

35b

K620085

BALL BEARING,63.51mm ID x 100mm OD x 22mm W

THRUST BEARING

1шт.

Used on model 885, S/N 636891 and after

1шт.

Used on model 885G, S/N 651787 and after

1шт.

Used on model 885N, S/N 674147 and after

1шт.

36b

K89336

SPRING

clutch fork

2шт.

Ref #36b Subs to K624938

1шт.

Used on model 885, S/N 636891 and after

1шт.

Used on model 885G, S/N 651787 and after

1шт.

Used on model 885N, S/N 674147 and after

1шт.
