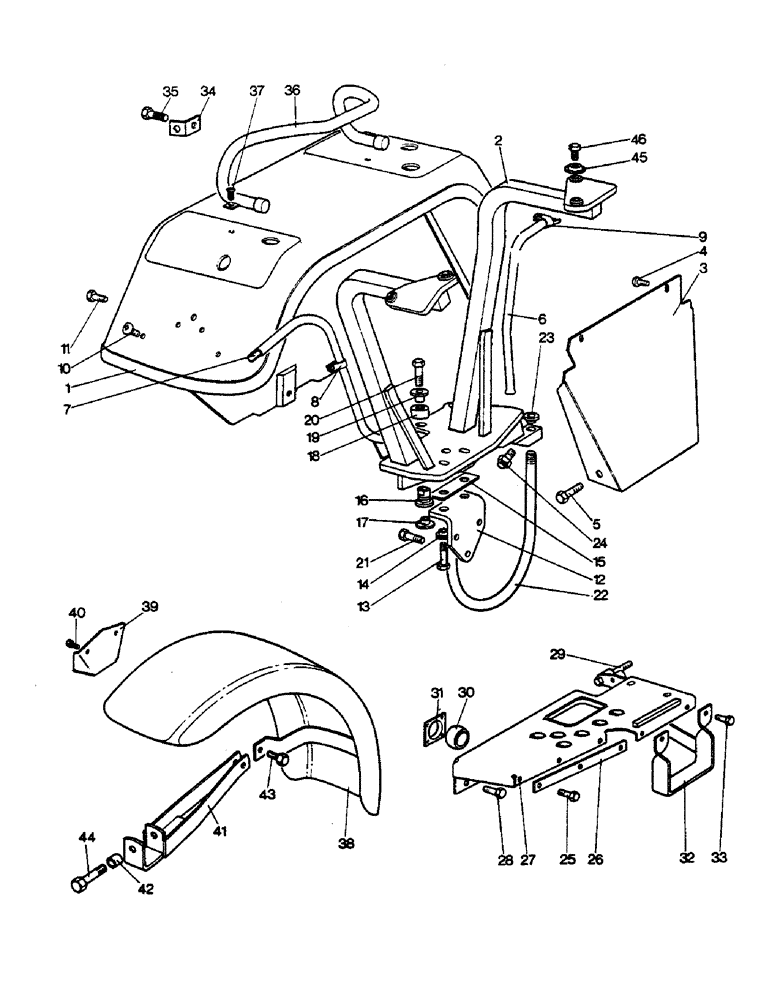

Запчасти Case IH 885 (L46) - CHASSIS, FENDERS AND FRAME PLATFORMS, 885 TRACTORS, TRACTORS FITTED W/ REINFORCED FULL FENDERS (12) - CHASSIS

1a

K775027

FENDER

FULL FENDER, right-hand

1шт.

Used on model 885, S/N 633680 and after

1шт.

K775030

FENDER

FULL FENDER, left-hand

1шт.

Used on model 885, S/N 633680 and after

1шт.

1b

K772084

WHEEL

FULL FENDER, right-hand

1шт.

Used on model 885, up to S/N 633680

1шт.

K772083

WHEEL

FULL FENDER, left-hand

1шт.

Used on model 885, up to S/N 633680

1шт.

2

K771967

FRAME

SUPPORT, right-hand fender

1шт.

K771966

FRAME

SUPPORT, left-hand fender

1шт.

3

K773487

GUARD

MUD-SHIELD, right-hand fender

1шт.

K773488

GUARD

MUD-SHIELD, left-hand fender

1шт.

4

K602740

SCREW

SETSCREW, 1/4 UNC x 5/8 in, Serial Range: mud-shields-fenders

1шт.

K626682

WASHER

5/16 in, Serial Range: mud-shields-fenders

4шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: mud-shields-fenders

4шт.

K607043

NUT

1/4 UNC, mud-shields to fenders (replaces K607044)

4шт.

5

K600316

BOLT

5/16 UNC x 2-1/4, mud-shields to fenders (replaces K600321)

4шт.

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

5/16 in, special, Serial Range: mud-shields-fenders

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: mud-shields-fenders

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16, UNC, mud-shields to fenders

4шт.

6

K772145

FENDER

CABLE TUBE, front

2шт.

7

K772149

FENDER

CABLE TUBE, right-hand, rear

1шт.

K772146

FENDER

CABLE TUBE, left-hand rear

1шт.

8

K621688

CLIP

1/2 in, Serial Range: tubes-fenders

8шт.

9

K621689

CLIP

1/2 in, Serial Range: tubes-fenders

4шт.

10

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

SETSCREW, No. 10 UNF x 1/2 in, tubes to fenders

4шт.

K626340

RING

SPRING WASHER, 3/16 in, Serial Range: tubes-fenders

4шт.

K617080

NUT

No. 10 UNF, Serial Range: tubes-fenders

4шт.

11

K602849

SCREW

SETSCREW, 5/16 UNC x 7/8 in, Serial Range: fenders-supports

16шт.

K626682

WASHER

5/16 in, Serial Range: fenders-supports

8шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: fenders-supports

16шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, fenders to supports

16шт.

12

K772147

SUPPORT

PLATE

2шт.

13

K691839

BOLT

1/2 UNC x 2-1/4 in, Serial Range: plates-fenders

4шт.

14

K771938

BUSHING

NYLON BUSH, Serial Range: plates-fenders

4шт.

K691835

WASHER

1/2 in, special, Serial Range: plates-fenders

4шт.

K626686

WASHER

1/2 in, Serial Range: plates-fenders

4шт.

15

K772134

PAD

NYLON PAD, Serial Range: plates-fenders

2шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, Serial Range: plates-fenders

4шт.

280431

NUT,1/2"-13, G5

Plates to fenders 1/2"-13, G5

4шт.

16a

K773969

ADJUSTER

(from tractor No. 631072)

4шт.

17

K771563

BUSHING

NYLON BUSH (from tractor No. 631072)

4шт.

18a

K773970

WASHER

CLAMPING WASHER (from tractor No. 631072)

4шт.

19a

K692050

WASHER

special (from tractor No. 631072)

4шт.

K692049

WASHER

special (from tractor No. 631072)

4шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in (from tractor No. 631072)

4шт.

20a

K600885

BOLT

1/2 UNC x 2 in (from tractor No. 631072)

4шт.

16b

K771922

ADJUSTER

1 in UNC, supports to rear axle case (to tractor No. 631071)

4шт.

17

K771563

BUSHING

NYLON BUSH, supports to rear axle case (to tractor No. 631071)

4шт.

18b

K772000

CAP

adjuster, supports to rear axle case (to tractor No. 631071)

4шт.

19b

K772001

BUSHING

NYLON BUSH, supports to rear axle case (to tractor No. 631071)

4шт.

K691835

WASHER

1/2 in, supports to rear axle case (to tractor No. 631071)

4шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, supports to rear axle case (to tractor No. 631071)

4шт.

20b

K600893

BOLT

1/2 UNC x 2-3/4 in, supports to rear axle case (to tractor No. 631071)

4шт.

21

K691960

SCREW

SETSCREW, 1/2 UNC x 1-5/8 in, plates to reduction units

6шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, plates to reduction units

6шт.

K626686

WASHER

1/2 in, plates to reduction units

6шт.

22

K772171

BOLT

'U' BOLT, 3/4 UNC, Serial Range: supports-reductions

2шт.

23

K771554

BUSHING

NYLON BUSH, Serial Range: supports-reductions

4шт.

K19476

WASHER

3/4 in, Serial Range: supports-reductions

4шт.

K607086

NUT

LOCKNUT, 3/4 UNC, Serial Range: supports-reductions

8шт.

24

K771994

SCREW

SETSCREW, 1/2 UNF, special, Serial Range: supports-reductions

4шт.

25

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in, fenders to platforms (K602849)

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: fenders-platforms

6шт.

K626682

WASHER

5/16 in, Serial Range: fenders-platforms

12шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, fenders to platforms

6шт.

26

K772177

STRIP

NYLON STRIP, Serial Range: fenders-platforms

2шт.

27

K943550

FRAME

PLATFORM, right-hand

1шт.

K945597

FRAME

PLATFORM, right-hand (Highway tractors)

1шт.

K943553

FRAME

PLATFORM, left-hand

1шт.

28

K603003

SCREW

SETSCREW, 7/16 UNC x 1 in, platforms to main frame

8шт.

29

K600625

BOLT

7/16 UNC x 5-3/4 in, platforms to main frame

2шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, platforms to main frame

8шт.

30

K904528

BEARING, frame platform

2шт.

31

K85415

BRACKET

bearing

2шт.

32

K944297

X

STIRRUP, right-hand

1шт.

K944296

X

STIRRUP, left-hand

1шт.

33

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in, Serial Range: stirrups-platforms

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: stirrups-platforms

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, stirrups to platforms

4шт.

34

K773886

BRACKET

floodlamp

1шт.

35

K603138

SCREW

SETSCREW, 1/2 UNC x 1 in

1шт.

280431

NUT,1/2"-13, G5

1шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in

1шт.

36

K773527

SEAT

RAIL ASSEMBLY, Includes: Ref. 37 and washer, spring washer, and nut

1шт.

37

K603926

SCREW

SETSCREW, 1/4 UNC x 3/4 in, seat, Serial Range: rail-fender

2шт.

K19470

WASHER

1/4 in, seat, Serial Range: rail-fender

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, seat, Serial Range: rail-fender

2шт.

K607043

NUT

1/4 UNC, seat, Serial Range: rail-fender

2шт.

K922457

SPARE PART

FRONT FENDER U1221 - Highway Tractors

1шт.

K972520

FENDER

FRONT FENDER, left-hand

1шт.

38

K972521

FENDER

FRONT FENDER, right-hand

1шт.

39

K925112

SUPPORT

BRACKET

2шт.

40

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in, support brackets to front fenders

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, support brackets to front fenders

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, support brackets to front fenders

1шт.

41

K919385

SUPPORT

STAY

2шт.

42

K916450

TUBE

DISTANCE TUBE, support stay to front axle

2шт.

43

K603104

SCREW

SETSCREW, 1/2 UNC x 1 in, support to front fender

2шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, support to front fender

2шт.

K607004

NUT

1/2 UNC, support to front fender

2шт.

44

K600420

BOLT

3/8 UNC x 4 in, support stay to stub axle

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, support stay to stub axle

2шт.

280136

NUT,3/8"-16, G8

Support stay to stub axle 3/8"-16, G8

2шт.

45

K773988

FASTENER

CONICAL WASHER (not used with safety frame)

8шт.

46

K603274

SCREW

SETSCREW, 5/8 UNC x 1-1/2 in

1шт.
