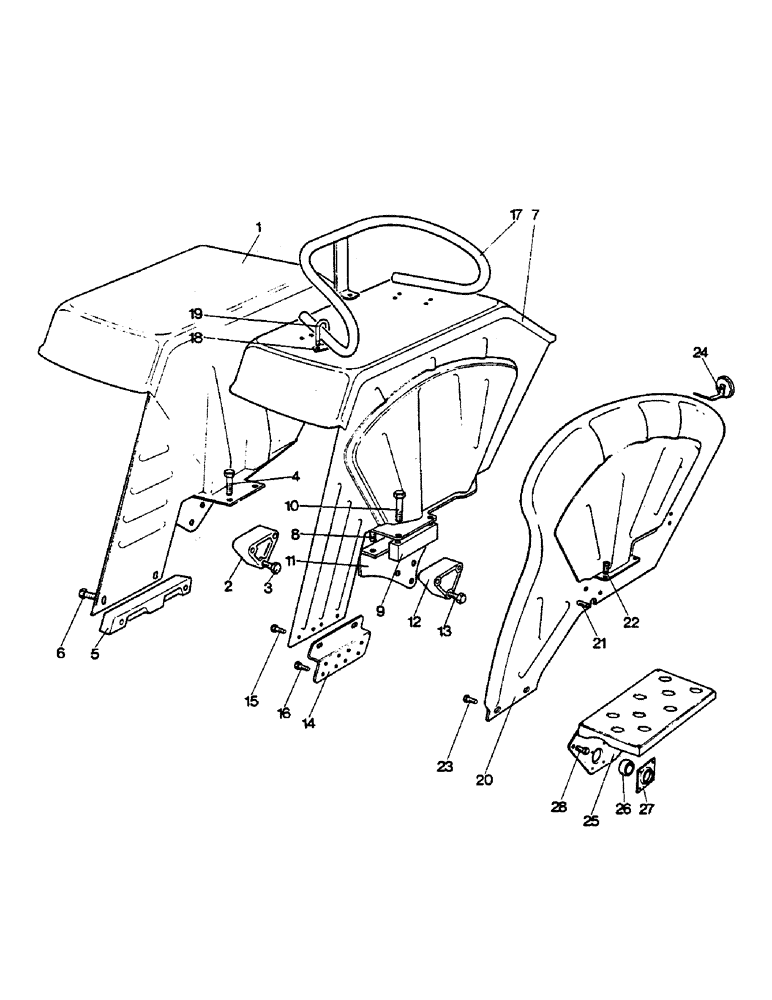

Запчасти Case IH 885 (L36) - CHASSIS, FENDERS AND FRAME PLATFORMS, 885 TRACTORS, TRACTORS NOT FITTED WITH REINFORCED FULL FENDERS (12) - CHASSIS

1

K945494

FENDER

FULL FENDER, right-hand (TB 76 Miscellaneous)

1шт.

K945493

FENDER

FULL FENDER, left-hand (TB 76 Miscellaneous)

1шт.

2

K923911

BLOCK

PACKING BLOCK, Serial Range: brackets-reductions

1шт.

3

K600889

BOLT

1/2 UNC x 3-3/4 in, Serial Range: brackets-reductions

6шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, Serial Range: brackets-reductions

6шт.

K626686

WASHER

1/2 in, Serial Range: brackets-reductions

6шт.

4

K603141

SCREW

SETSCREW, 1/2 UNC x 1-1/4 in, Serial Range: fenders-axle

4шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, Serial Range: fenders-axle

4шт.

5

K946569

BUSHING

DAMPING SPACER, fender backplate to frame platforms

2шт.

6

K600152

BOLT

1/4 UNC x 2 in, fender backplate to frame platforms

3шт.

K600151

BOLT

1/4 UNC x 2-1/4 in, fender backplate to frame platforms

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, fender backplate to frame platforms

4шт.

K19470

WASHER

1/4 in, fender backplate to frame platforms

8шт.

K607043

NUT

1/4 UNC, fender backplate to frame platforms

4шт.

7

K929581

FENDER

FULL FENDER, right-hand (TB 76 Miscellaneous)

1шт.

K929580

FENDER

FULL FENDER, left-hand (TB 76 Miscellaneous)

1шт.

8

K603141

SCREW

SETSCREW, 1/2 UNC x 1-1/4 in, Serial Range: fenders-brackets

8шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, Serial Range: fenders-brackets

8шт.

9

K926094

BUSHING

DISTANCE PIECE, 1-1/2 in, fenders to axle (11 x 32, 12 x 28 tyres)

2шт.

10a

K600893

BOLT

SETSCREW, 1/2 UNC x 2-3/4 in, fenders to axle (11 x 32, 12 x 28 tyres)

4шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, fenders to axle (11 x 32, 12 x 28 tyres)

4шт.

11a

K923915

SUPPORT

BRACKET, right-hand (11 x 32, 12 x 28 tyres)

1шт.

K923916

SUPPORT

BRACKET, left-hand (11 x 32, 12 x 28 tyres)

1шт.

10b

K603141

SCREW

SETSCREW, 1/2 UNC x 1-1/4 in, fenders to axle (11 x 28 tyres)

4шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, fenders to axle (11 x 28 tyres)

4шт.

11b

K923913

SUPPORT

BRACKET, right-hand (11 x 28 tyres)

1шт.

K923914

FENDER

SUPPORT BRACKET, left-hand (11 x 28 tyres)

1шт.

12

K923911

BLOCK

PACKING BLOCK, Serial Range: brackets-reductions

2шт.

13

K600889

BOLT

1/2 UNC x 3-3/4 in, Serial Range: brackets-reductions

6шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, Serial Range: brackets-reductions

6шт.

K626686

WASHER

1/2 in

6шт.

14

K924322

BRACKET

EXTENSION, right-hand fender

1шт.

K924323

BRACKET

EXTENSION, left-hand fender

1шт.

15

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

SETSCREW, 1/4 UNC x 5/8 in, Serial Range: fenders-extensions

8шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: fenders-extensions

8шт.

K607043

NUT

1/4 UNC, Serial Range: fenders-extensions

8шт.

16

K602733

SCREW

SETSCREW, 1/4 UNC x 5/8 in, Serial Range: platforms-extensions

4шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: platforms-extensions

4шт.

K607043

NUT

1/4 UNC, Serial Range: platforms-extensions

4шт.

K627713

PLUG

PLASTIC PLUG, 7/32 in

11шт.

K627711

PLUG

PLASTIC PLUG, 17/32 in

2шт.

17

K913952

SEAT

RAIL, full fender (use with K929581)

1шт.

18

K914525

CLAMP

PLATE (K929580)

4шт.

19

K603880

BOLT

'U' BOLT, 1/4 UNC (K929580)

4шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (K929580)

8шт.

K607043

NUT

1/4 UNC (K929580)

8шт.

20

K914247

FENDER

SHELL FENDER, right- hand

1шт.

K914302

FENDER

SHELL FENDER, left-hand

1шт.

K922118

FAN FENDER, right-hand (USA only)

1шт.

K922120

FAN FENDER, left-hand (USA only)

1шт.

21

K603049

BOLT

SETSCREW, 7/16 UNC x 7/8 in

6шт.

K626344

WASHER, LOCK

SPRING WASHER, 7/16 in, fenders to rear axle

6шт.

K626314

WASHER

7/16 in, fenders to rear axle

6шт.

22

K603139

SCREW

SETSCREW, 1/2 UNC x 7/8 in, fenders to rear axle

4шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in, fenders to rear axle

4шт.

23

K602733

SCREW

SETSCREW, 1/4 UNC x 5/8 in, shell, Serial Range: fenders-platforms

3шт.

K19470

WASHER

1/4 in, shell, Serial Range: fenders-platforms

4шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, shell, Serial Range: fenders-platforms

4шт.

K607043

NUT

1/4 UNC, shell, Serial Range: fenders-platforms

4шт.

K602736

SCREW

SETSCREW, 1/4 UNC x 7/8 in

1шт.

24

K929468

BRACKET

reflector

2шт.

K964716

REFLECTOR

replaces K913554

2шт.

K913494

FRAME

PLATFORM, right-hand

1шт.

25

K921689

FRAME

PLATFORM, left-hand

1шт.

26

K904258

SPHERICAL BEARING

BEARING, frame platform

2шт.

27

K85415

BRACKET

bearing

2шт.

28

K603003

SCREW

SETSCREW, 7/16 UNC x 1 in, Serial Range: platforms-frame

9шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, Serial Range: platforms-frame

9шт.

K915422

SUPPORT

STIRRUP

1шт.

K602736

SCREW

SETSCREW, 1/4 UNC x 7/8 in, Serial Range: stirrup-platform

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: stirrup-platform

2шт.

K607043

NUT

1/4 UNC, Serial Range: stirrup-platform

2шт.

K904258

SPHERICAL BEARING

BEARING, footplate

2шт.

K85415

BRACKET

2шт.
