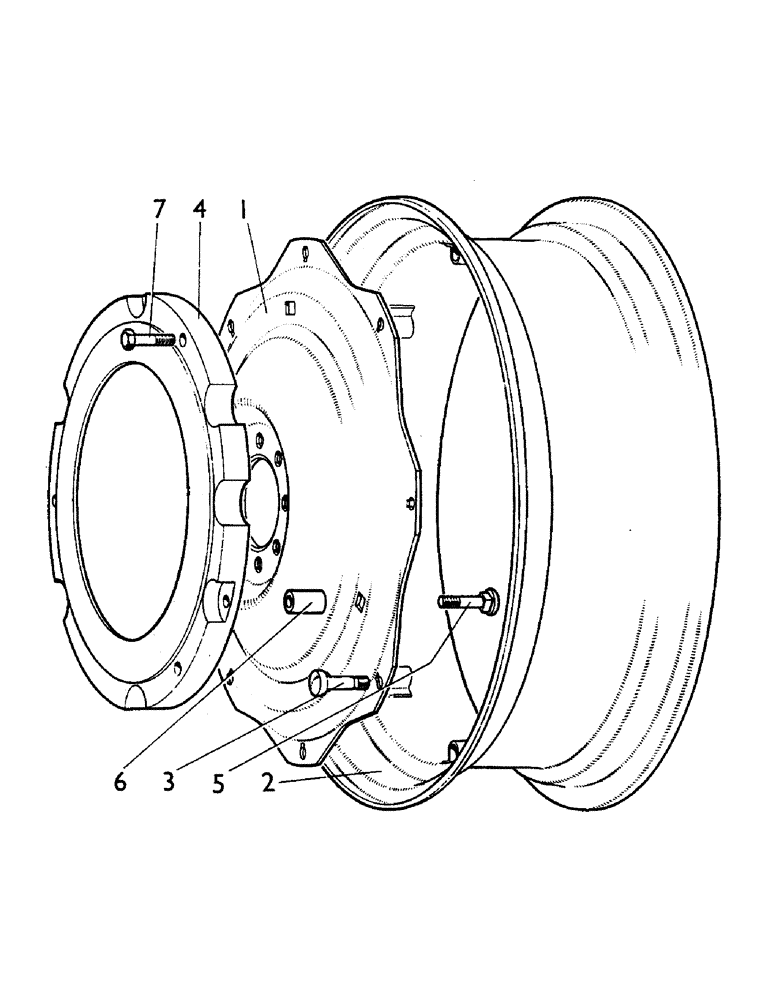

Запчасти Case IH 885 (L14) - CHASSIS, REAR WHEELS AND BALLAST WEIGHTS, 885 AND 885G TRACTORS (12) - CHASSIS

K947926

RIM

REAR RIM AND CENTRE ASSEMBLY, W10 x 32 (fits 12-4/11-32 tyres), Includes: Ref. 1A & 2A

2шт.

1a

K909538

WHEEL DISC

REAR WHEEL CENTRE

1шт.

2a

K901852

WHEEL

REAR WHEEL RIM, W10 x 32

1шт.

K947924

RIM

REAR RIM AND CENTRE ASSEMBLY, W11 x 28 (fits 14-9/13-28 tyres), Includes: Ref. 1B & 2B

2шт.

1b

K905284

WHEEL

REAR WHEEL CENTRE

1шт.

2b

K67980

WHEEL

REAR WHEEL RIM, W11 x 28

1шт.

K947928

RIM

REAR RIM AND CENTRE ASSEMBLY, W12 x 24 (fits 14-9/13-24 tyres), Includes: Ref. 1C & 2C

2шт.

1c

K907539

WHEEL

REAR WHEEL CENTRE

1шт.

2c

K918979

WHEEL DISC

REAR WHEEL RIM, W12 x 24, valve on same side as lug

1шт.

K948185

RIM

REAR RIM AND CENTRE ASSEMBLY, W12 x 24 (fits 14-9/13-24 tyres), Includes: Ref. 1C & 2D

2шт.

1c

K907539

WHEEL

REAR WHEEL CENTRE

1шт.

2d

K948186

RIM

REAR WHEEL RIM, W12 x 24, valve on opposite, Serial Range: side-lug

1шт.

3a

K611261

BOLT

RIM BOLT, 5/8 UNF x 2-7/8, key location

16шт.

3b

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT, 5/8 UNF x 2-7/8, square location

16шт.

K19475

WASHER

5/8 in

16шт.

425-1110

NUT,5/8"-18, G5

16шт.

K21180

BALLAST

WEIGHT ASSEMBLY U184, fits K947926 wheels, Includes: Ref. 4 - 6 and bolt and spring washer

1шт.

4

K86167

WEIGHT

BALLAST WEIGHT, 45 kg

4шт.

5a

K690452

BOLT

COACH BOLT, 5/8 BSF x 2-7/8 in, Serial Range: weights-wheels

6шт.

K19406

WHEEL NUT

5/8 BSF, Serial Range: weights-wheels

6шт.

K19485

WASHER

SPRING WASHER, 5/8 in, Serial Range: weights-wheels

6шт.

6

K910181

BUSHING

DISTANCE PIECE

6шт.

K19305

BOLT

5/8 BSF x 2 in, Serial Range: weight-weight

6шт.

K19485

WASHER

SPRING WASHER, 5/8 in, Serial Range: weight-weight

6шт.

K911480

BALLAST

WEIGHT ASSEMBLY U729, fits K947924 wheels, Includes: Ref. 4 - 7 and spring washer

1шт.

4

K86167

WEIGHT

BALLAST WEIGHT, 45 kg

4шт.

5b

K611261

BOLT

RIM BOLT, 5/8 UNF x 2-7/8 in, Serial Range: weights-wheels

6шт.

K914869

STUD

5/8 UNF, special, Serial Range: weights-wheels

6шт.

7

K19305

BOLT

5/8 BSF x 2 n, Serial Range: weight-weight

6шт.

K19485

WASHER

SPRING WASHER, 5/8 in, Serial Range: weight-weight

6шт.
