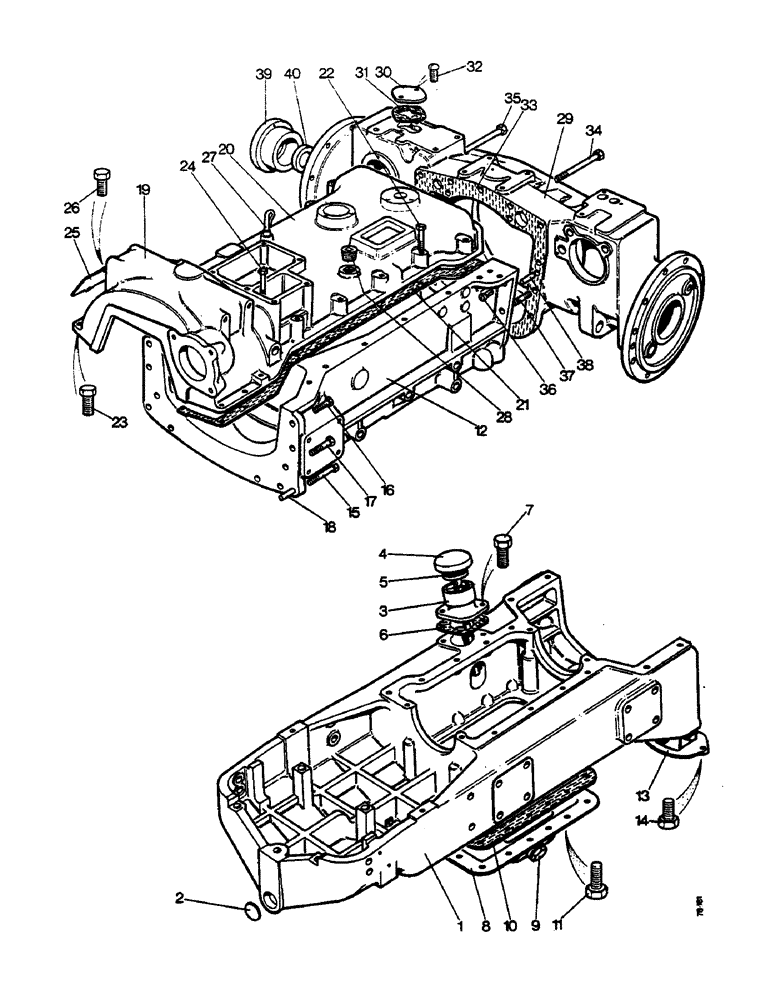

Запчасти Case IH 885 (L02) - CHASSIS, MAIN FRAME AND REAR AXLE, 885 TRACTORS (12) - CHASSIS

1a

K945574

FRAME

MAIN FRAME, front (Standard)

1шт.

1b

K942478

FRAME

MAIN FRAME, front (Highway)

1шт.

K628084

PLUG

PLASTIC PLUG, 5/8 in

32шт.

2

K621427

BUSHING

BUSH, front, trunnion pin

1шт.

K621301

BUSHING

BUSH, rear, trunnion pin

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Trunnion pin 1/4"-28 NPT x .54" lg

2шт.

3

K902042

FILLER

OIL FILLER

1шт.

4

K912773

DIPSTICK

FILLER CAP AND DIPSTICK

1шт.

5

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

'O' RING, 1-3/8 in internal dia., filler cap

1шт.

6

K902043

SEAL

, Serial Range: filler-frame.

1шт.

7

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1-1/8 in, filler to frame

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: filler-frame

2шт.

8

K907339

COVER

SUMP

1шт.

9

K623825

PLUG

DRAIN PLUG, 1/2 BSP

1шт.

K626793

WASHER

SEALING WASHER, 7/8 in

1шт.

10

K907585

GASKET

, Serial Range: sump-frame

1шт.

11

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in, Serial Range: sump-frame

16шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: sump-frame

16шт.

12

K929250

FRAME

MAIN FRAME, rear

1шт.

K623789

PLUG

CORE PLUG, 1 in, main frame

2шт.

13

K947404

COVER

clutch pit

1шт.

14

K602733

SCREW

SETSCREW, 1/4 UNC x 5/8 in

2шт.

K19470

WASHER

1/4 in

2шт.

15

K600617

BOLT

7/16 UNC x 3-3/4 in, front frame to rear frame

4шт.

16

K603005

SCREW

BOLT, 7/16 UNC x 1-1/4 in, front frame to rear frame

2шт.

17

K600607

BOLT

7/16 UNC x 2-1/8 in, front frame to rear frame

4шт.

280717

NUT,7/16"-14, G5

Front frame to rear frame 7/16"-14, G5

4шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, front frame to rear frame

10шт.

18

K621852

PIN

DOWEL, 5/8 x 1-5/8 in, front frame to rear frame

2шт.

19

K929669

CLUTCH HOUSING

with sealing strip

1шт.

K929668

STRIP

SEALING STRIP, clutch housing

1шт.

20a

K945687

COVER

GEARBOX COVER

1шт.

Used on model 885, S/N 626372 and after

1шт.

20b

K929617

COVER

GEARBOX COVER

1шт.

Used on model 885, up to S/N 626372

1шт.

K690973

FITTING

GREASE NIPPLE, clutch cross shaft

2шт.

21

K929663

GASKET,0.2mm Thk

gearbox, Serial Range: cover-frame

2шт.

22

K600615

BOLT

7/16 UNC x 3-1/4 in, gearbox, Serial Range: cover-frame

10шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, gearbox, Serial Range: cover-frame

10шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1-1/8 in, clutch housing to frame

1шт.

23

K600405

BOLT

3/8 UNC x 1-5/8 in, clutch, Serial Range: housing-frame

4шт.

24

K600421

BOLT

3/8 UNC x 4-1/4 in, clutch, Serial Range: housing-frame

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, clutch, Serial Range: housing-frame

7шт.

K628087

PLUG

PLASTIC PLUG, 3/8 in, timing apertures, clutch, Serial Range: housing-frame

2шт.

25

K89387

COVER

INSPECTION PLATE, clutch compartment

1шт.

26

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW, 1/4 UNC x 1/2 in, replaces K602701

1шт.

K602735

SCREW

SETSCREW, 1/4 UNC x 3/4 in, replaces K602701

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

K942348

SLEEVE

dipstick

1шт.

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

'O' RING, 7/16 in internal dia.

1шт.

27

K947615

DIPSTICK

1шт.

28

K12362

PLUG

TAPER PLUG, 1 in BSP

1шт.

29

K924785

SHAFT

REAR AXLE CASE

1шт.

K623825

PLUG

DRAIN PLUG, 1/2 BSP

1шт.

K626793

WASHER

SEALING WASHER, 7/8 in

1шт.

K623826

PLUG

DRAIN PLUG, 3/4 BSP (Alternative)

1шт.

K626315

WASHER

SEALING WASHER, 1-1/16 in (Alternative)

1шт.

30a

K929465

COVER

PLATE, with dump valve

1шт.

31a

K929464

GASKET

with dump valve

1шт.

32a

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW, 5/16 UNC x 1-1/8 in, with dump valve

2шт.

30b

K929463

COVER

PLATE, axle case, without dump valve

1шт.

31b

K929464

GASKET

without dump valve

1шт.

32b

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in, replaces K604089, without dump valve

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.

33

K926122

GASKET,0.25mm Thk

1шт.

34

K600620

BOLT

7/16 UNC x 4-1/2 in, axle to gearbox cover

4шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, axle to gearbox cover

4шт.

35

K600669

BOLT

7/16 UNC x 7-3/4 in, axle to gearbox cover

1шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, axle to gearbox cover

1шт.

36

K606656

SCREW

7/16 UNC x 1-1/4 in

2шт.

K11523

WASHER

SHAKEPROOF WASHER, 7/16 in, axle to main frame

2шт.

37

K608318

STUD

7/16 UNC x 2 in, axle to main frame

7шт.

280717

NUT,7/16"-14, G5

Axle to main frame 7/16"-14, G5

7шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, axle to main frame

7шт.

38

K621826

PIN

DOWEL

2шт.

39

K200090

SEAL

HOUSING, oil seal, replaces K62356

2шт.

40

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

OIL SEAL, 1-3/4 x 3-3/16 x 1/2 in

4шт.

K619528

PLUG

7/8 UNF, oil return port

1шт.

K30085

GASKET

FIBRE WASHER, 7/8 in, oil return port

1шт.
