Запчасти Case IH 885 (9-04) - PICK-UP HITCH, 885, 885H, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS

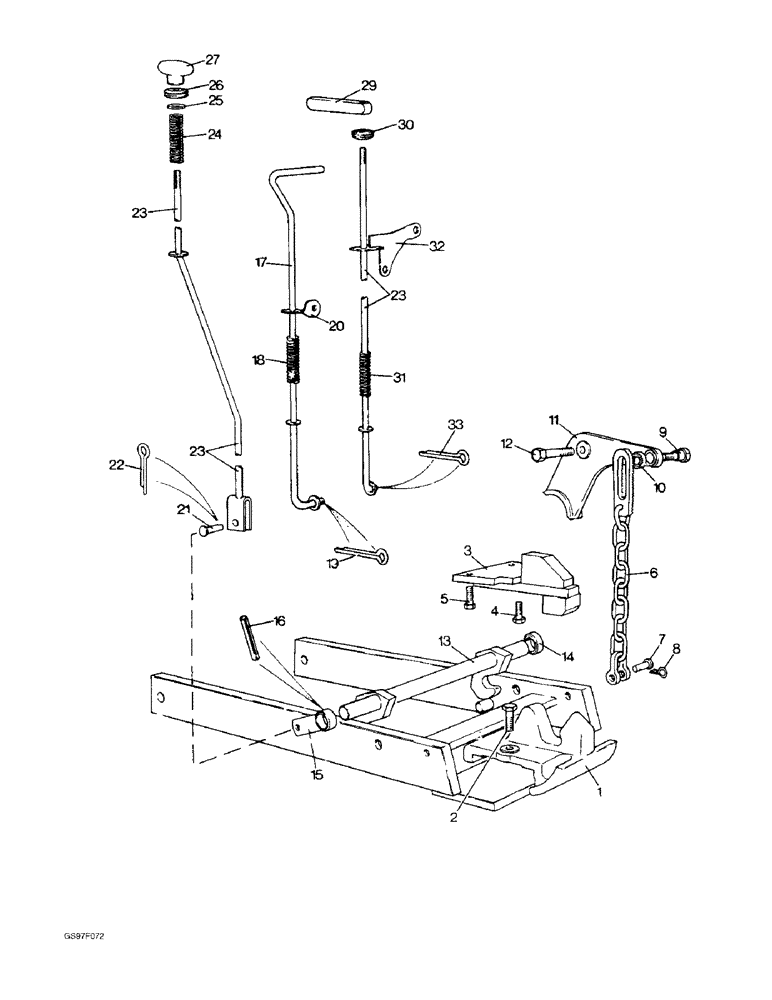

Схема запчастей Case IH 885 - (9-04) - PICK-UP HITCH, 885, 885H, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS
4
31
26
1
29
16
25
22
11
5
15
9
3
23
30
18
33
23
10
13
20
8
21
6
2
24
17
7
32
23
27
12
14
10

Артикул

Название

Примечание

Количество

K932587

HITCH

UNIT ASSEMBLY - pick-up hitch, U4039, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available, Includes: Ref. 1 - 33

1шт.

K932103

SPARE PART

UNIT ASSEMBLY - pick-up hitch, U2001, used with 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available, Includes: Ref. 1 - 33

1шт.

K930534

SPARE PART

UNIT ASSEMBLY - pick-up hitch, U4039, used with 885 and 885H tractors, no longer available, Includes: Ref. 1 - 33

1шт.

1

K940590

HOOK

- towing , no longer available

1шт.

2

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

hook to drawbar frame (Replaces bolt K601208) Hex, 5/8"-11 x 2 1/2", G5

2шт.

K19475

WASHER

- flat, 5/8 inch, hook to drawbar frame

2шт.

425-1010

NUT,5/8"-11, G5

Hook to drawbar frame (Replaces nut K607006) 5/8"-11, G5

2шт.

3

K940093

BRACKET

JAW - hitch

1шт.

4

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, Jaw to PTO housing (Replaces bolt K600410)

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, jaw to PTO housing (Replaces bolt K600404)

1шт.

6

K940592

CHAIN (CE)

CHAIN - with link

2шт.

7

K943029

PIN

- clevis, 1/2 x 2-1/8 inch

2шт.

8

K38632

SPRING

CLIP - spring

2шт.

9

K942612

PIN

- pivot, 5/8 inch NC

2шт.

10

K942611

WASHER

- serrated

2шт.

K19475

WASHER

- flat, 5/8 inch

2шт.

K607331

NUT

- Nyloc, 5/8 inch

2шт.

11

K940591

ARM

- lift

2шт.

12

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch (Replaces bolt K601415)

2шт.

13

K940094

LATCH

- hitch

1шт.

14

K940098

COLLAR

- hitch , no longer available

1шт.

15

K940097

LEVER

- collar

1шт.

16

K690732

SPRING

PIN - spring, 3/16 x 1-3/4 inch

2шт.

17

K940593

ROD

- release, used with 885 and 885H tractors, no longer available

1шт.

18

K625251

SPRING

- return, release rod, used with 885 and 885H tractors, no longer available

1шт.

K19472

WASHER

- flat, 3/8 inch, used with 885 and 885H tractors

1шт.

19

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , Used with 885 and 885H tractors (Replaces pin K19535) 1/8" x 3/4"

1шт.

20

K940596

GUIDE

BRACKET - guide, used with 885 and 885H tractors, no longer available

1шт.

21

K955947

PIN

- clevis, 3/8 x 1 inch, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

K19472

WASHER

- flat, 3/8 inch

1шт.

22

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), , Used with 885Q and 885QH tractors with S/N 11010300 and after (Replaces pin K19528) 3/32" x 3/4"

1шт.

23

K955945

ROD

- release, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

24

K625251

SPRING

- release rod, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

25

K626884

WASHER

- special, 1/2 inch, used with 885Q and 885QH tractors with serial number 11010300 and after

1шт.

26

K627729

GROMMET

- cab floor, 7/8 inch, used with 885Q and 885QH tractors with serial number 11010300 and after

1шт.

27

K950493

KNOB

- release rod, used with 885Q and 885QH tractors with serial number 11010300 and after (Replaces knob K955948)

1шт.

K628459

ADHESIVE

NUT - hex, 3/8 inch NC, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

K964535

HITCH ASSY

KIT - rod, used with 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available, Includes: Ref. 28 - 33

1шт.

28

K954945

ROD

- release, used with 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available

1шт.

29

K954851

HANDLE

- release rod, used with 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available

1шт.

425-106

NUT,3/8"-16, Cl 5

Used with 885Q and 885QH tractors with S/N prior to 11010300 (Replaces nut K607002) 3/8"-16, G5

1шт.

30

K627729

GROMMET

- cab floor, 7/8 inch, used with 885Q and 885QH tractors with serial numbers, Serial Range: prior-11010300

1шт.

31

K625251

SPRING

- release rod, used with 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available

1шт.

32

K949585

GUIDE

BRACKET - guide, used with 885Q and 885QH tractors with serial numbers prior to 11010300, no longer available

1шт.

K19472

WASHER

- flat, 3/8 inch, used with 885Q and 885QH tractors with serial numbers, Serial Range: prior-11010300

1шт.

33

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , Used with 885Q and 885QH tractors with S/N's prior to 11010300 (Replaces pin K19535) 1/8" x 3/4"

1шт.

Выбрано товаров: 46
