Запчасти Case IH 885 (9-02) - UNIVERSAL DRAWBAR (09) - CHASSIS/ATTACHMENTS

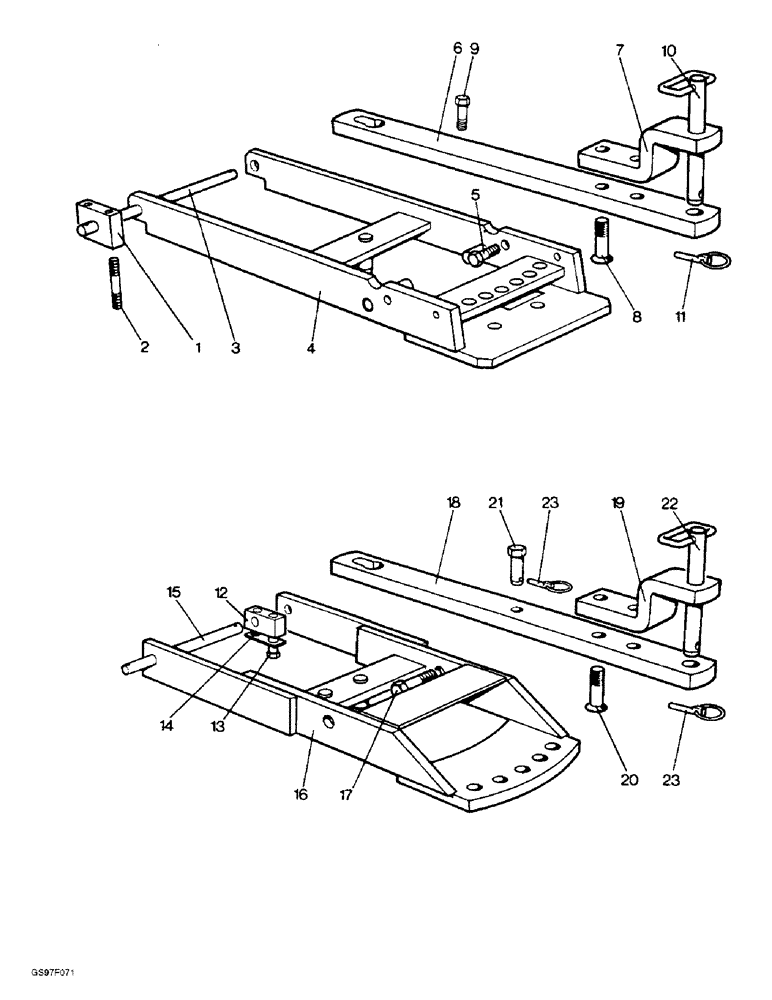

Схема запчастей Case IH 885 - (9-02) - UNIVERSAL DRAWBAR (09) - CHASSIS/ATTACHMENTS
13
15
3
23
19
2
14
9
23
10
7
22
17
16
12
1
20
18
6
21
8
5
11
4

Артикул

Название

Примечание

Количество

1

K912087

HINGE

BRACKET - hinge, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

2шт.

2

K608508

STUD

- 1/2 NC x 3-7/8 inch, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

4шт.

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors (Replaces nut K607304)

4шт.

3

K943056

HINGE

BAR - hinge, used with 885Q, 885QH, 885Sk, 885 and 885H tractors

1шт.

3

K918764

HINGE

BAR - hinge, used with 885G tractors, no longer available

1шт.

K19476

WASHER

- flat, 3/4 inch, used with 885Q, 885QH, 885Sk, 885 and 885H tractors

2шт.

B88459

SPLIT PIN

PIN - cotter, 3/16 x 1-3/8 inch, used with 885Q, 885QH, 885Sk, 885 and 885H tractors, no longer available

2шт.

K210316

LINCH PIN

PIN - linch, with ring, used with 885G tractors (Replaces pin K66408)

2шт.

4

K946192

SUPPORT

- drawbar, metric dimensions, used with 885Q, 885QH, 885Sk, 885 and 885H tractors, no longer available

1шт.

5

13-1238

BOLT,Hex, 3/4" - 10 x 2-3/8", Gr 5

- hex, 3/4 NC x 2-3/8 inch, used with 885Q, 885QH, 885Sk, 885 and 885H tractors

2шт.

K19476

WASHER

- flat, 3/4 inch, used with 885Q, 885QH, 885Sk, 885 and 885H tractors

2шт.

492-11075

LOCK WASHER,3/4"

used with 885Q, 885QH, 885Sk, 885 and 885H tractors (Replaces washer 19486) 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

Used with 885Q, 885QH, 885Sk, 885 and 885H tractors (Replaces nut K607049) 3/4"-10, G5

2шт.

6

K946154

DRAWBAR, SWINGING

DRAWBAR - metric dimensions, used with 885Q, 885QH, 885Sk, 885 and 885H tractors

1шт.

7

K916516

CLEVIS

BRACKET - clevis, used with 885Q, 885QH, 885Sk, 885 and 885H tractors

1шт.

8

K601664

BOLT

- special, 5/8 NC x 3-1/4 inch, used with 885Q, 885QH, 885Sk, 885 and 885H tractors

2шт.

K607463

NUT

- Cleveloc, 5/8 inch NC, used with 885Q, 885QH, 885Sk, 885 and 885H tractors

2шт.

9

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch, used with 885Q, 885QH, 885Sk, 885 and 885H tractors (Replaces bolt K601332)

2шт.

232-14110

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Used with 885Q, 885QH, 885Sk, 885 and 885H tractors (Replaces nut K607306) 5/8"-11, GC

2шт.

10

K916566

PIN

- hitch, used with 885Q, 885QH, 885Sk, 885 and 885H tractors

1шт.

11

A33509

PIN,11.18mm OD

- linch, with ring, used with 885Q, 885QH, 885Sk, 885 and 885H tractors (Replaces pin K920359)

1шт.

12

K916903

HINGE

BRACKET - hinge, used with 885N tractors, no longer available

2шт.

13

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

used with 885N tractors (Replaces bolt K601208) Hex, 5/8"-11 x 2 1/2", G5

4шт.

14

K916905

WASHER

- tab, used with 885N tractors, no longer available

2шт.

15

K916904

HINGE

BAR - hinge, used with 885N tractors, no longer available

1шт.

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , used with 885N tractors (Replaces pin K19558) 1/4" x 2"

2шт.

16

K916906

SUPPORT

- drawbar, imperial dimensions, used with 885N tractors, no longer available

1шт.

16

K921631

DRAWBAR

SUPPORT - drawbar, imperial dimensions, used with 885G tractors

1шт.

17

13-1238

BOLT,Hex, 3/4" - 10 x 2-3/8", Gr 5

- hex, 3/4 NC x 2-3/8 inch, used with 885G and 885N tractors (Replaces bolt K601405)

2шт.

K19476

WASHER

- flat, 3/4 inch, used with 885G and 885N tractors

2шт.

492-11075

LOCK WASHER,3/4"

used with 885G and 885N tractors (Replaces washer K19486) 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

Used with 885G and 885N tractors (Replaces nut K607049) 3/4"-10, G5

2шт.

18

K912059

DRAWBAR, SWINGING

DRAWBAR - imperial dimensions, used with 885G and 885N tractors

1шт.

19

K912060

CLEVIS

BRACKET - clevis, used with 885G and 885N tractors

1шт.

20

K601665

BOLT

- special, 5/8 NC x 2-1/4 inch, used with 885G and 885N tractors, no longer available

2шт.

K607331

NUT

- Nyloc, 5/8 inch NC, used with 885G and 885N tractors

2шт.

21

K912063

PIN

- stop, used with 885G and 885N tractors

1шт.

22

K912062

PIN

- hitch, used with 885G and 885N tractors, no longer available

1шт.

23

A33509

PIN,11.18mm OD

- linch, with ring, used with 885G and 885N tractors (Replaces pin K920359)

2шт.

Выбрано товаров: 39
