Запчасти Case IH 885 (8-46) - DOUBLE-ACTING TAKE OFF VALVE, 885 AND 885Q TRACTORS (08) - HYDRAULICS

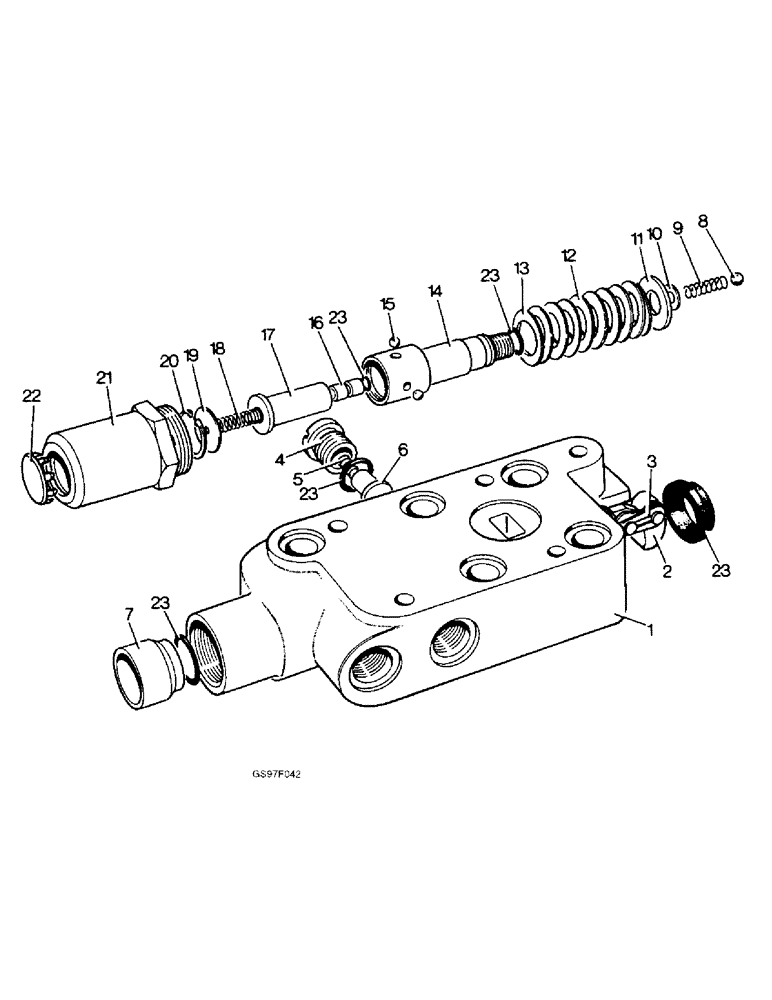

Схема запчастей Case IH 885 - (8-46) - DOUBLE-ACTING TAKE OFF VALVE, 885 AND 885Q TRACTORS (08) - HYDRAULICS
21
17
2
12
10
23
23
16
23
5
22
6
3
11
8
18
23
23
19
1
4
15
14
13
20
9
7

Артикул

Название

Примечание

Количество

1

K956421

VALVE

ASSEMBLY - live take off, tractor serial number 11010300 and after, Includes: Ref. 2 - 22

1шт.

1

K594382

VALVE ASSEMBLY - live take off, tractor serial numbers prior to 11010300, no longer available, Includes: Ref. 2 - 22

1шт.

2

K965796

LEVER

SPINDLE - hand lever (Replaces spindle K965190)

1шт.

3

241-1315

LINK, CONNECTING

LINK - connecting, single pitch, No. 50, 5/8 inch pitch (Replaces link K963587)

1шт.

4

H47506

PLUG

- non-return valve (Replaces plug K962065)

1шт.

5

FH730374

SPRING

- non-return valve (Replaces spring K962067)

1шт.

6

FH730366

PLUNGER

- non-return valve (Replaces plunger K962066)

1шт.

7

K962060

BUSHING

- body

1шт.

8

K965834

VALVE POPPET

BALL - steel, kick-out valve (Replaces ball K963579)

1шт.

9

K963580

SPRING

- kick-out valve

1шт.

10

K962080

SHIM,.010" Thk

Kick-out valve .010" Thk

1шт.

10

K962081

SHIM,.005" Thk

Kick-out valve .005" Thk

1шт.

11

K962082

DISC

WASHER - spool centering

1шт.

12

H57067

SPRING

- spool centering (Replaces spring K964904)

1шт.

13

K962078

WASHER

- spool centering

1шт.

14

K963581

RETAINER

- spool detent, no longer available, order retainer K964500, plate K964499, shim K962080 and shim K962081

1шт.

14

K964500

RETAINER

- spool detent

1шт.

K964499

PLATE

- orfice, used with retainer K964500

1шт.

15

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, spool detent (Replaces steel ball K11483)

3шт.

16

K962071

PISTON

- detent release

1шт.

17

K963574

PLUNGER

- detent release

1шт.

18

K962073

SPRING

- detent release

1шт.

19

K962079

WASHER

- detent release

1шт.

20

K962076

RING, SNAP

RING - snap, detent release

1шт.

21

K963575

CAP

- body

1шт.

22

K962074

PLUG

- cap

1шт.

23

K962083

GASKET KIT

KIT - seal, includes five O-ring and two wiper seals

1шт.

214389

PLUG,3/4" - 16 ORB

(Replaces plug K920826) Hex Hd, 3/4"-16 ORB

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces O-ring K623589)

2шт.

Выбрано товаров: 29
