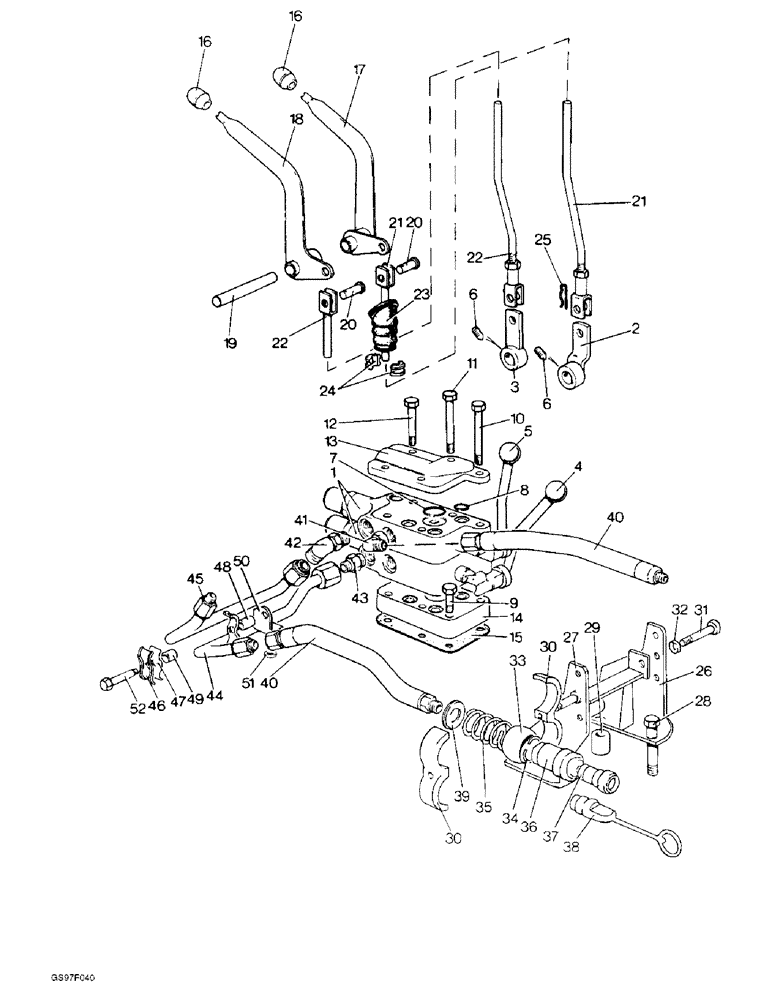

Запчасти Case IH 885 (8-40) - TWIN LIVE TAKE OFF VALVE (08) - HYDRAULICS

K931849

SPARE PART

UNIT - twin live take off valve, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

K931851

SPARE PART

CONTROLS - hand, twin valves, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

K918938

NO LONGER SERVICED

UNIT - twin live take off valve, used w/885, 885H & 885G tractors, no longer available, order lever K964382, Ref. 4; lever K946383, Ref. 5; screw 83-1316, Ref. 6; O-ring K623588, Ref. 7; O-ring 238-6115, Ref. 8; bolts 413-632, 413-696 & 413-610, Ref 9-11;

1шт.

K139900

KIT - pipes and couplings, twin valve, no longer available (Replaces pipe K930229)

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - take off, parts list Fig. 8-46

2шт.

2

K950851

LEVER

- cranked, used with 885Q, 885QH and 885Sk tractors

1шт.

3

K950854

LEVER

- straight, used with 885Q, 885QH and 885Sk tractors

1шт.

4

K946382

LEVER

- hand, cranked, used with 885, 885H and 885G tractors

1шт.

5

K946383

LEVER

- hand, straight, used with 885, 885H and 885G tractors

1шт.

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404), Used with 885Q, 885QH and 885Sk tractors with S/N 11010300 and after (Replaces key K19602) #3, 1/8" x 1/2"

2шт.

126-6

WOODRUFF KEY,# 213, 1/8" x 3/8"

(No. 403) (Replaces key K622382) # 213, 1/8" x 3/8"

2шт.

6

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket head, 5/16 NC x 3/8 inch, cup point

2шт.

7

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch ID

2шт.

8

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

(Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

10шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt K600510) Hex, 3/8"-16 x 2", G5

1шт.

10

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

- hex, 3/8 NC x 6 inch (Replaces bolt K600513)

2шт.

11

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

(Replaces bolt K600514) Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

12

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch (Replaces bolt K600512)

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

6шт.

13

K919242

COVER

- valve

1шт.

14

K950386

BASE

PLATE - base (Replaces plate K962085)

1шт.

14

K203509

BASE

PLATE - base

1шт.

14a

K948415

PLUG

- hex, special, 3/4 inch NF, not shown

1шт.

15

K917387

GASKET

-, Serial Range: baseplate-axle

1шт.

16

K950493

KNOB

- hand lever, used with 885Q, 885QH and 885Sk tractors

2шт.

17

K200315

LEVER

- hand, used with 885Q, 885QH and 885Sk tractors with serial number 11013296 and after, no longer available

1шт.

17

K950762

LEVER

- hand, used with 885Q, 885QH and 885Sk tractors with serial numbers prior to 11013296, no longer available

1шт.

18

K200317

LEVER

- hand, used with 885Q, 885QH and 885Sk tractors with serial number 11013296 and after, no longer available

1шт.

18

K950766

LEVER

- hand, used with 885Q, 885QH and 885Sk tractors with serial numbers prior to 11013296, no longer available

1шт.

K614021

SET SCREW,#10 - 32 x 1/2"

- hex, No. 10 NF x 1/2 inch, 885Q, 885QH and 885Sk tractors

2шт.

19

K950863

SHAFT

- hand lever, used with 885Q, 885QH and 885Sk tractors

1шт.

20

K950866

LARGE PIN

PIN - clevis, used with 885Q, 885QH and 885Sk tractors

4шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Used with 885Q, 885QH and 885Sk tractors 1/16" x 1/2"

2шт.

21

K965207

ROD

- connecting, adjustable, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

22

K965208

ROD

- connecting, adjustable, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

23

K950691

SEAL

GAITER - connecting rod, used with 885Q, 885QH and 885Sk tractors

2шт.

24

K950861

BUSHING

- split, halves, used with 885Q, 885QH and 885Sk tractors, no longer available

4шт.

25

K950865

CLIP

- retaining, used with 885Q, 885QH and 885Sk tractors

2шт.

26

K940753

MOUNTING PARTS

BRACKET - support, right-hand

1шт.

27

K940752

MOUNTING PARTS

BRACKET - support, left-hand

1шт.

28

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch (Replaces bolt K600896)

1шт.

29

K627074

BUSHING

SPACER - distance, no longer available

1шт.

30

K924286

MOUNTING PARTS

FRAME - mounting

4шт.

31

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- hex, 7/16 NC x 3 inch (Replaces bolt K600703)

1шт.

32

K627056

BUSHING

SPACER - distance, no longer available

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K626344) 7/16"

1шт.

K626686

WASHER

- flat, 1 inch (Replaces washer K19474)

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Replaces nuts K607046 and B90348)

1шт.

33

K924284

RING

- gimbal

4шт.

34

K924285

RING

- retaining

4шт.

35

K625249

SPRING

- coupling

4шт.

K921216

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick-release, Aeroquip B5600/8/10, no longer available, order couplings K200643 and K200646 and plug K921217, Ref. 36 - 38, Includes: Ref. 36 and 37

4шт.

36

K929247

BREAKER POINTS

COUPLING - tractor half, no longer available, order coupling K200643 and dust cover K921217

1шт.

36

K200643

COUPLING, BREAK AWAY

COUPLING - quick release, tractor half (Replaces coupling K929247)

1шт.

37

200646

COUPLING - quick release, hose half (Replaces coupling K921982)

1шт.

38

K921217

PLUG

- rubber, tractor coupling

4шт.

K965185

COVER

- dust, hose coupling, no longer available

4шт.

39

K626794

WASHER

- special

4шт.

40

K924710

HOSE

PIPE - flexible, 1/2 BSP x 3/4 NF x 16-1/4 inch

4шт.

41

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adjustable O-ring boss (Replase elbow K622114), Includes: O-ring

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

42

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 7/8-14 flare x 3/4-16 inch adjustable O-ring boss (Replase elbow K622119), Includes: O-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

43

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss (Replaces adapter K626062), Incl. O-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

44

K943049

PIPE

- lower, no longer available

1шт.

45

K943047

PIPE ASSY.

PIPE - upper, no longer available

1шт.

46

K916899

BRACKET

CLAMP - pipes to rear axle housing

2шт.

47

K940758

PACKING

- pipes to rear axle housing, no longer available

1шт.

48

K65701

BUSHING

SPACER - distance, 1/2 inch, pipes to rear axle housing, no longer available

1шт.

49

K627026

BUSHING

SPACER - distance, 1-1/8 inch, pipes to rear axle housing, no longer available

1шт.

50

K940759

SUPPORT

BRACKET - angle, pipes to rear axle housing, no longer available

1шт.

51

K627040

BUSHING

SPACER - distance, 1/4 inch, pipes to rear axle housing

1шт.

52

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch, pipes to rear axle housing (Replaces bolt K600316)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , pipes to rear axle housing (Replaces washer K19481) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Pipes to rear axle housing (Replaces nut K607044)

1шт.
