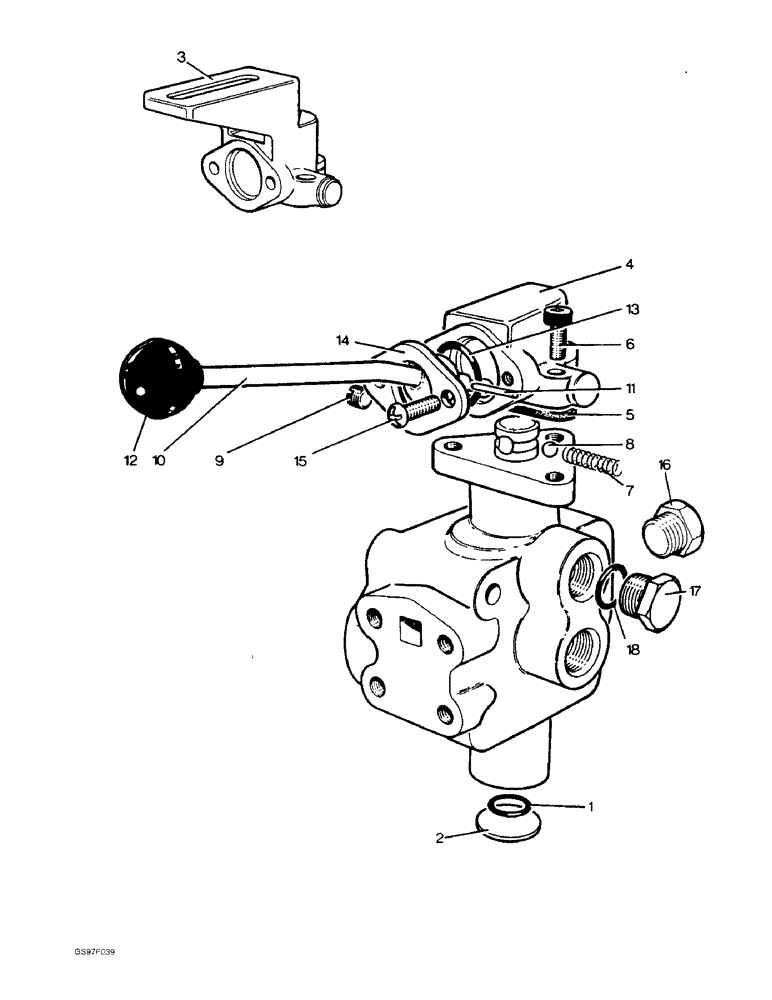

Запчасти Case IH 885 (8-38) - THREE-WAY TAKE OFF VALVE (08) - HYDRAULICS

K951162

SELECTOR

VALVE ASSEMBLY - take-off, used with 885Q, 885QH and 885Sk tractors, no longer available, Includes: Ref. 1 - 15 and Washer

1шт.

K948000

SELECTOR

VALVE ASSEMBLY - take-off, used with 885, 885H and 885G tractors, Includes: Ref. 1 - 15 and Washer

1шт.

K262225

VALVE

ASSEMBLY - take-off, used with 885N tractors (Replaces valve assembly K940067), Includes: Ref. 1 - 15 and Washer

1шт.

1

K625408

O-RING

- valve

2шт.

2

K919826

BREATHER

- valve

1шт.

2

K929860

CAP

BREATHER - valve, no longer available

1шт.

3

K919611

COVER

- valve

1шт.

4

K929862

COVER

- valve, no longer available

1шт.

5

K944527

GASKET,0.15mm Thk

- valve

1шт.

K915393

FOAM

PAD - breather

1шт.

6

461-32510

HEX SOC SCREW,1/4"-20 x 5/8"

BOLT - hex socket head, 1/4 NC x 5/8 inch (Replaces bolt K606501)

3шт.

7

K625208

SPRING

- valve

2шт.

8

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24 (Replaces ball K17063)

2шт.

9

81-3314

SET SCREW,5/16"-18 x 1/4", Slotted

PLUG - 5/16 NC x 1/4 inch

1шт.

10

K949302

LEVER

- valve, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

10

K919612

LEVER

- valve, used with 885, 885H and 885G tractors

1шт.

10

K962995

LEVER

- valve, used with 885N tractors (Replaces lever K929863)

1шт.

K943367

PIN

- valve, 5/32 x 1-3/8 inch, used with 885N tractors, no longer available

1шт.

12

K902270

KNOB

- lever, used with 885, 885H and 885G tractors

1шт.

12

K929750

KNOB

- lever, used with 885N tractors

1шт.

13

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

(Replaces O-ring K16351) -214, 70 Duro, .984" ID x .139" Thk

1шт.

14

K919613

SHIM

PLATE - valve

1шт.

15

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw K614924)

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

2шт.

16

K948415

PLUG

- special, 3/4 inch NF, used with 885Q, 885QH and 885Sk tractors

1шт.

17

214389

PLUG,3/4" - 16 ORB

(Replaces plug K920826) Hex Hd, 3/4"-16 ORB

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces O-ring K623589)

2шт.
