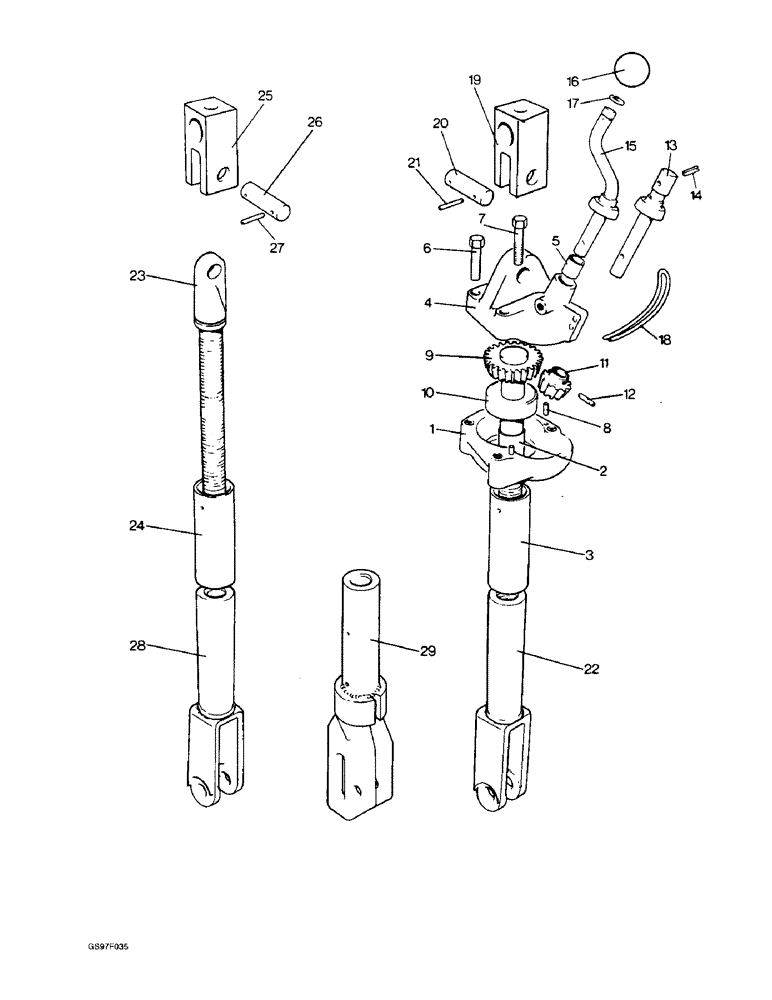

Запчасти Case IH 885 (8-30) - LEVELLING LEVER AND LIFT ROD, 885, 885G, 885H, 885Q AND 885SK TRACTORS (08) - HYDRAULICS

K955542

LEVER

ASSEMBLY - levelling, used with 885Q and 885QH tractors, no longer available, Includes: Ref. 1 - 22 and Fitting

1шт.

K940508

LEVER

ASSEMBLY - levelling, used w/885, 885G, 885Q & 885QH tractors, no longer available as an assy., order housing K962977, cap K962691, bolt 107-1618, bolt 413-630, screw K919770, bearing K19187, pinion K919769, pin 138-73, lever K919761, latch K924723

1шт.

K955542

LEVER

ASSEMBLY - levelling, used with 885Sk tractors, Includes: Ref. 1 - 22 and Fitting

1шт.

1

K962977

HOUSING

- gear, with bushing and tube, no longer available

1шт.

2

K621339

BUSHING

- gear housing

1шт.

3

K922657

TUBE,1.75" DIA x 5.25" L

- gear housing, 1-3/4 x 5-1/4 inch

1шт.

4

K962691

COVER

CAP - with bushings and dowels

1шт.

5

K621340

BUSHING

- cap

2шт.

6

107-1618

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/8", G8

BOLT - hex, 3/8 NC x 1-5/8 inch

2шт.

7

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- hex, 3/8 NC x 1-7/8 inch (Replaces bolt K600407)

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

4шт.

8

K32063

PIN

DOWEL - 3/16 x 1/2 inch

2шт.

9

K919770

SHAFT

SCREW - Whitworth, leveling, 1 x 9-5/16 inch

1шт.

10

K19187

THRUST BEARING

BEARING - thrust

1шт.

11

K919769

GEAR

PINION - bevel

1шт.

12

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, (Replaces pin K623741) 5/32" x 3/4", Slotted

1шт.

13

K954077

SHAFT

SPINDLE - used with 885Q, 885QH and 885Sk tractors

1шт.

14

K691356

PIN

- spring, 5 x 25 mm, used with 885Q, 885QH and 885Sk tractors

1шт.

15

K919761

LEVER

- hand, with knob, used with 885, 885G, 885Q and 885QH tractors

1шт.

16

K919763

BUTTON

KNOB - lever, used with 885, 885G, 885Q and 885QH tractors

1шт.

17

A10916

RING, SNAP

RING - snap, used with 885, 885G, 885Q and 885QH tractors (Replaces ring K621790)

1шт.

18

K924723

SPRING

LATCH - spring, used with 885, 885G, 885Q and 885QH tractors

1шт.

19

K921914

FORK

- end

1шт.

20

K948353

PIVOT PIN

PIN - pivot

1шт.

21

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, (Replaces pin K623740) 3/16" x 7/8", Slotted

2шт.

22

K940700

NUT

- adjusting, Whitworth, 1 inch, standard

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

3шт.

K940505

ROD

ASSEMBLY - lift, no longer available as an assembly, order screw K962978, tube K940510, nut K940700, pin K948353, pin 438-11214 and fitting 219-8, Includes: Ref. 23 - 28 and Fitting

1шт.

23

K962978

SET SCREW

SCREW - adjusting, Whitworth, 1 inch, with tube

1шт.

24

K940510

TUBE,1.75" ID x 6.187" L

- 1-3/4 x 6-1/4 inch

1шт.

25

K921914

FORK

- end

1шт.

26

K948353

PIVOT PIN

PIN - pivot

1шт.

27

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, (Replaces pin K623740) 3/16" x 7/8", Slotted

2шт.

28

K940700

NUT

- adjusting, Whitworth, 1 inch, standard

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

2шт.

K931038

NUT

ASSEMBLY - slotted adjusting, no longer available, Includes: Ref. 29 and Washer

1шт.

29

K945967

CLEVIS

NUT - adjusting, Whitworth, 1 inch, slotted

2шт.

K19476

WASHER

- flat, 3/4 inch

2шт.
