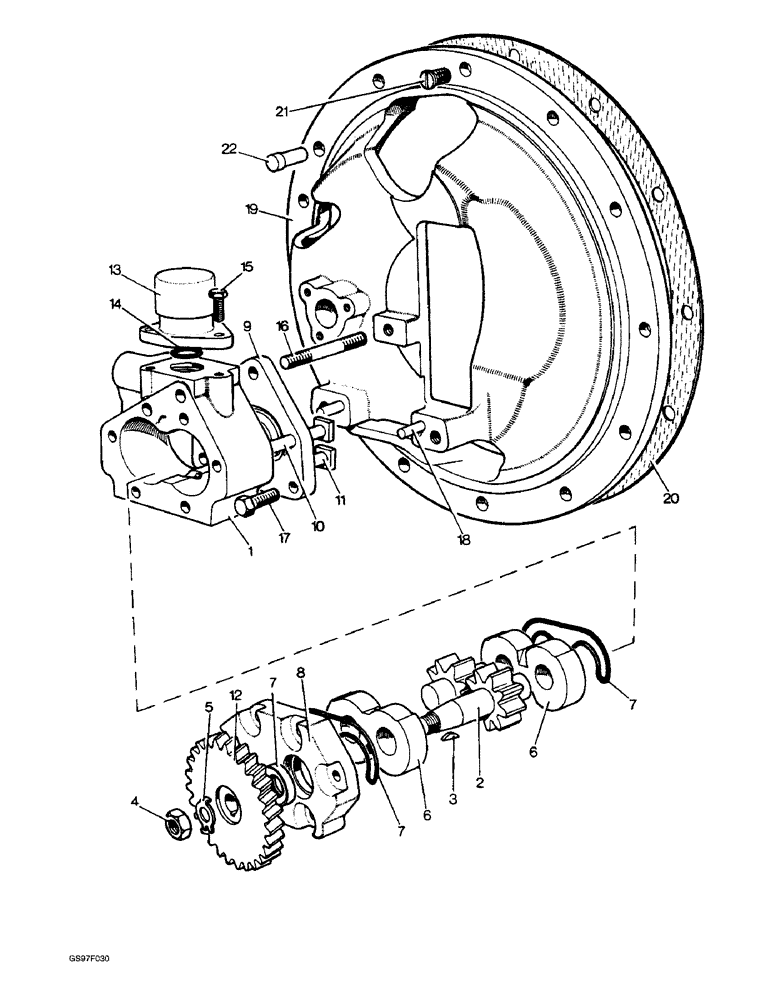

Запчасти Case IH 885 (8-18) - HYDRAULIC PUMP (08) - HYDRAULICS

1

K962635

PUMP

ASSEMBLY - hydraulic, less relief valve and gear, Includes: Ref. 2 - 11, Nut, and Washer

1шт.

K962635R

REMAN-HYD PUMP

885, 885N (S/N 11000001 TO 11021851) Both(1/76 - 12/83)

1шт.

K962635C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

K962128

GEAR

ROTORS - one pair, order pump assembly K962635

1шт.

3

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(Replaces key K19604) #5, 1/8" x 5/8"

1шт.

4

425-158

JAM NUT,Jam, 1/2"-20, G5

(Replaces nut K617054) Jam, 1/2"-20, G5

1шт.

5

K626382

WASHER

- tab, 1/2 inch

1шт.

6

K962125

BEARING

- pump, order pump assembly K962635

2шт.

7

K962136

GASKET KIT

KIT - seal, includes three O-rings

1шт.

8

K962132

COVER

PLATE - end

1шт.

9

K962129

FLANGE

- pump

1шт.

10

K962130

BOLT

- special, 3/8 inch NF, no longer available

4шт.

11

K962131

BOLT

- dowel, 3/8 inch NF, no longer available

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF (Replaces nut K617002)

6шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K19483) 7/16"

6шт.

12

K927097

GEAR

- driven, 36 helical tooth

1шт.

13

K919372

VALVE

- relief, pre-set assembly

1шт.

14

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Valve to pump (Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

1шт.

15

K19222

BOLT

- 5/16 BSF x 1 inch, Serial Range: valve-pump

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , valve to pump (Replaces washer K19481) 5/16"

3шт.

16

K608221

STUD

- 3/8 NC x 3-11/16 inch, Serial Range: pump-plate

1шт.

17

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Pump to plate (Replaces bolt K602905) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

pump to plate (Replaces washer K19482) 3/8"

3шт.

425-106

NUT,3/8"-16, Cl 5

Pump to plate (Replaces nut K607002) 3/8"-16, G5

1шт.

18

K24853

PIN

DOWEL - 1/4 x 11/16 inch, Serial Range: pump-plate

2шт.

19

K905667

SUPPORT

PLATE - support

1шт.

20

K205398

GASKET

- plate to rear axle housing and PTO unit (Replaces gasket K922591)

2шт.

21

K605157

SCREW

- hex, 7/16 NC x 1-1/8 inch, no longer available

1шт.

22

K24827

PIN

DOWEL - headed, 7/16 x 1-3/4 inch

1шт.
