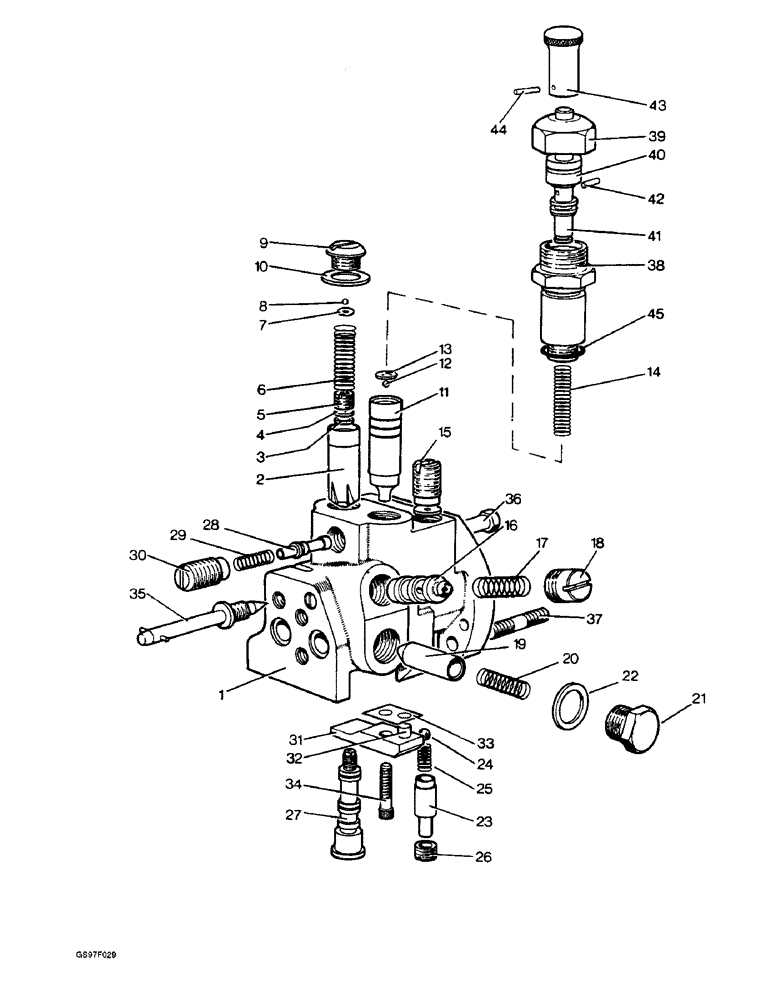

Запчасти Case IH 885 (8-16) - CONTROL VALVE (08) - HYDRAULICS

1

K953151

VALVE

ASSEMBLY - control, Includes: Ref. 2 - 30

1шт.

2

NSS

NOT SOLD SEPARAT

PLUNGER - by-pass valve, order valve assembly

1шт.

3

K921154

FILTER

- by-pass plunger

1шт.

4

K913621

WASHER

- restrictor, by-pass valve

1шт.

5

K947759

PLUG

- special, 3/8 inch NF, by-pass valve

1шт.

6

K24832

SPRING

- by-pass valve

1шт.

7

K947977

RETAINER

- by-pass valve

1шт.

8

211-1004

BALL,3.17mm OD, Gr 24

By-pass valve (Replaces ball K11548) 1/8" Dia

1шт.

9

K948067

PLUG

- special, 5/8 inch NF, by-pass valve

1шт.

10

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER - sealing, 5/8 inch, by-pass valve

1шт.

11

NSS

NOT SOLD SEPARAT

PLUNGER - hold valve, order valve assembly

1шт.

12

211-1004

BALL,3.17mm OD, Gr 24

Hold valve (Replaces ball K11548) 1/8" Dia

1шт.

13

K920136

SHIM

RETAINER - ball, hold valve

1шт.

14

K24832

SPRING

- hold valve

1шт.

15

K961794

VALVE

- relief, pre-set assembly

1шт.

K625160

SPRING

- relief valve

1шт.

16

K944592

SPOOL

- rate-of-lowering

1шт.

17

K625108

SPRING

- rate-of-lowering valve, no longer available

1шт.

18

K909397

SPRING

PLUG - special, 3/8 inch BSP, no longer available

1шт.

19

K916395

PLUNGER

- non-return valve

1шт.

20

K625167

SPRING

- non-return valve

1шт.

21

K916397

PLUG

- special, 3/4 inch NF

1шт.

22

K623530

SEAL

WASHER - sealing, 3/4 inch

1шт.

23

K909403

SPRING

PLUNGER - TCU valve, no longer available

1шт.

24

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24 (Replaces ball K17063)

1шт.

K626843

WASHER

- special, 1/8 inch, no longer available

1шт.

25

K625190

SPRING

- TCU valve, no longer available

1шт.

26

K909398

CAP

FERRULE - 1/4 inch BSP

1шт.

27

NSS

NOT SOLD SEPARAT

VALVE - spool, order valve assembly

1шт.

28

NSS

NOT SOLD SEPARAT

PLUNGER - latching valve, order valve assembly

1шт.

29

K625180

SPRING

- latching valve

1шт.

30

K913971

PLUG

- special, 9/16 inch NF

1шт.

31

K912464

WASHER

PLATE - abutment

1шт.

32

K24853

PIN

DOWEL - 1/4 x 11/16 inch, plate to valve body

1шт.

33

K912465

SHIM,.003" Thk

(Plate to valve body) .003" Thk

1шт.

33

K912466

SHIM,.007" Thk

(Plate to valve body) .007" Thk

1шт.

33

K912467

SHIM,.015" Thk

(Plate to valve body) .015" Thk

1шт.

34

K606803

SCREW

- Wedglock, 1/4 inch NC, plate to valve body

1шт.

35

K944593

NEEDLE

VALVE - needle, 7/16 inch NC, lowering control, tractor serial number 11006680 and after

1шт.

35

K920132

NEEDLE

VALVE - needle, 3/8 inch NC, lowering control, tractor serial numbers, Serial Range: prior-11006680

1шт.

K962813

GASKET

KIT - seal, control valve

1шт.

36

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch, valve to ramshaft bracket (Replaces bolt K600211)

1шт.

37

K608143

STUD

- 5/16 NC x 1-1/2 inch, valve to ramshaft bracket

2шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, valve to ramshaft bracket (Replaces nut K607001)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , valve to ramshaft bracket (Replaces washer K19481) 5/16"

2шт.

K953672

HYDRAULIC VALVE

VALVE ASSEMBLY - dump, used with 885Q, 885QH and 885Sk tractors, Includes: Ref. 38 - 44 and Kit

1шт.

K953673

VALVE

ASSEMBLY - dump, used with 885, 885H and 885G tractors, no longer available, order valve body K205087, knob K919666 and pin 138-317, Includes: Ref. 38 - 44 and Kit

1шт.

K953675

HYDRAULIC VALVE

VALVE ASSEMBLY - dump, used with 885N tractors, Includes: Ref. 38 - 44 and Kit

1шт.

38

K205087

VALVE

BODY - valve, tractor serial number 11005148 and after (Replaces body K948804)

1шт.

38

K940576

GUIDE

BODY - valve, tractor serial numbers prior to 11005148, no longer available

1шт.

39

K918983

NUT

- special, 1 inch NF, no longer available

1шт.

40

K948805

BUSHING

- valve, tractor serial number 11005148 and after, no longer available

1шт.

40

K918985

BUSHING

- valve, tractor serial numbers prior to 11005148, no longer available

1шт.

41

K962194

SET OF PARTS

PLUNGER - valve

1шт.

42

K24871

GROOVED PIN,1/8" x 1/2", Type D

PIN - valve, 1/8 x 5/8 inch, used with 885, 885H, 885G and 885N tractors

1шт.

43

K919666

KNOB

- valve, used with 885, 885H and 885G tractors

1шт.

43

NSS

NOT SOLD SEPARAT

KNOB - valve, used with 885N tractors

1шт.

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

44

135-34

PULLEY

PIN - 1/8 x 5/8 inch, used with 885, 885H and 885G tractors, no longer available (Replaces pin K623724)

1шт.

44

K11733

PIN

- 1/8 x 3/4 inch, used with 885N tractors, no longer available

1шт.

K964568

SEAL

KIT - seal, dump valve

1шт.
