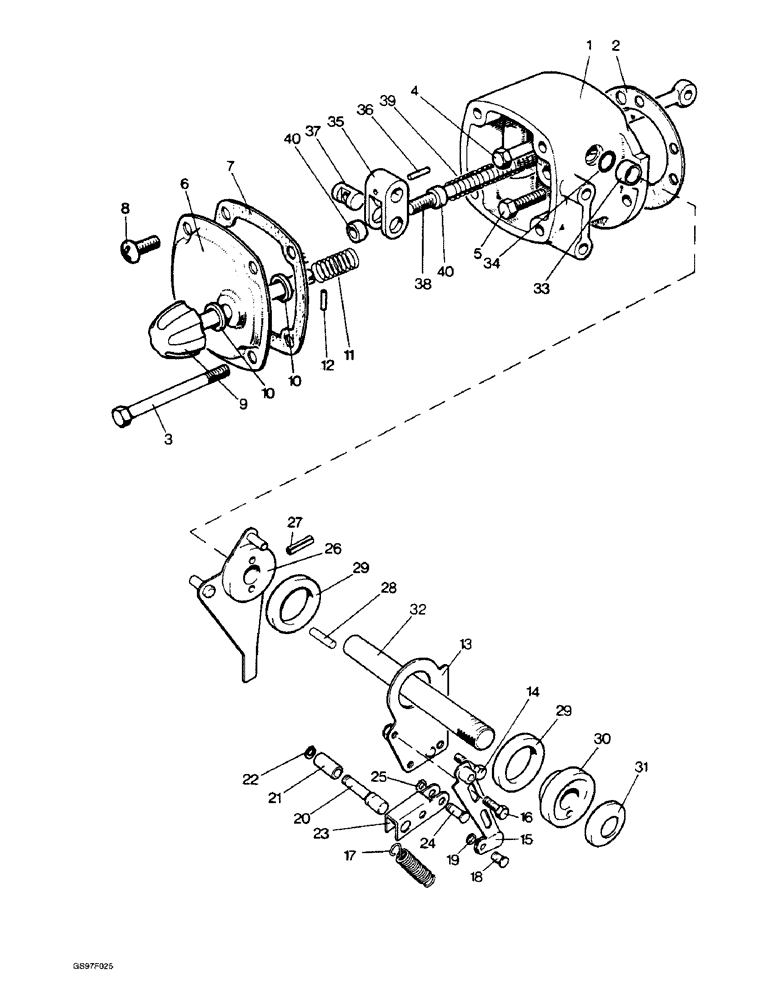

Запчасти Case IH 885 (8-08) - CONTROL HOUSING, 885Q, 885QH AND 885SK TRACTORS (08) - HYDRAULICS

1

K949656

HOUSING

- control, no longer available

1шт.

2

K903026

GASKET

- control housing to rear axle housing

1шт.

3

K600224

BOLT

- hex, 5/16 NC x 4-3/4 inch, control housing to rear axle housing, no longer available

1шт.

4

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch, control housing to rear axle housing (Replaces bolt K600205)

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch, control housing to rear axle housing (Replaces bolt K602805)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , control housing to rear axle housing (Replaces washer K19481) 5/16"

3шт.

6

K951091

COVER

- housing, no longer available

1шт.

7

K949658

GASKET

-, Serial Range: cover-housing

1шт.

8

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch, Cover to housing (Replaces bolt K602802)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , control housing to rear axle housing (Replaces washer K19481) 5/16"

3шт.

9

K950970

CASTING

KNOB - control, lowering, no longer available

1шт.

10

K909573

DISC

- friction

2шт.

11

K24887

SPRING

- housing

1шт.

K19472

WASHER

- flat, 3/8 inch

1шт.

12

38-1812

LOCK PIN,1/8" x 3/4", Slotted

Pin, (replaces pin K623930) 1/8" x 3/4", Slotted

1шт.

13

K950555

BRACKET

PLATE - friction, no longer available

1шт.

14

K602846

SCREW,5/16" - 18 x 5/8", Gr S

- hex, 5/16 NC x 5/8 inch, Serial Range: plate-housing

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , plate to housing (Replaces washer K19481) 5/16"

2шт.

15

K949541

SPRING

CARRIER - spring

1шт.

16

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, carrier to plate (Replaces bolt K602734)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Carrier to plate (Replaces washer K19480) 1/4"

2шт.

17

K950773

SPRING

- tension

1шт.

18

K949554

PIN

- clevis

1шт.

19

K621482

RING, SNAP

RING - snap, 5/16 inch OD

1шт.

20

K949543

PIN

- return lever

1шт.

21

K949544

ROLLER

- pin

1шт.

22

100-1125

SNAP RING,#25, Ext

Ring, Snap, (Replaces ring K24568) #25, Ext

1шт.

23

K949542

SPRING

LEVER - return, spring

1шт.

24

K949545

PIN

- pivot, 1/4 x 3/4 inch

2шт.

25

100-1125

SNAP RING,#25, Ext

Ring, Snap, (Replaces ring K24568) #25, Ext

2шт.

26

K950836

LEVER

- friction, no longer available

1шт.

27

38-11020

LOCK PIN,5/32" x 1 1/4", Slotted

Pin, (Replaces pin K623942) 5/32" x 1 1/4", Slotted

1шт.

28

37-1316

DOWEL,3/16" x 1"

- lever

2шт.

29

K262715

WASHER

- friction lever (Replaces washer K909582)

2шт.

30

K950864

PLATE

- friction

1шт.

31

K626740

WASHER

- Belleville, 5/8 inch

2шт.

K626686

WASHER

- flat, 1/2 inch

1шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC (Replaces nut K607084)

1шт.

K607804

NUT

- capped, 1/2 inch NC

1шт.

32

K949266

SHAFT

- housing

1шт.

33

K627068

BUSHING

SLEEVE - plastic

1шт.

34

K623424

RING

- sealing, 1/2 inch ID

1шт.

35

K909584

FORK

- housing

1шт.

36

38-31016

PIN,5/32" x 1", Coiled

(Replaces pin K623940) 5/32" x 1", Coiled

1шт.

37

K903370

PIN

- fork

1шт.

38

K909585

ROD

- connecting

1шт.

39

K625161

SPRING

- connecting rod

1шт.

40

K903367

COLLAR

- connecting rod

2шт.

K964098

NUT

- hex, self-locking, 5/16 inch NC, no longer available (Replaces nut K607326)

1шт.
