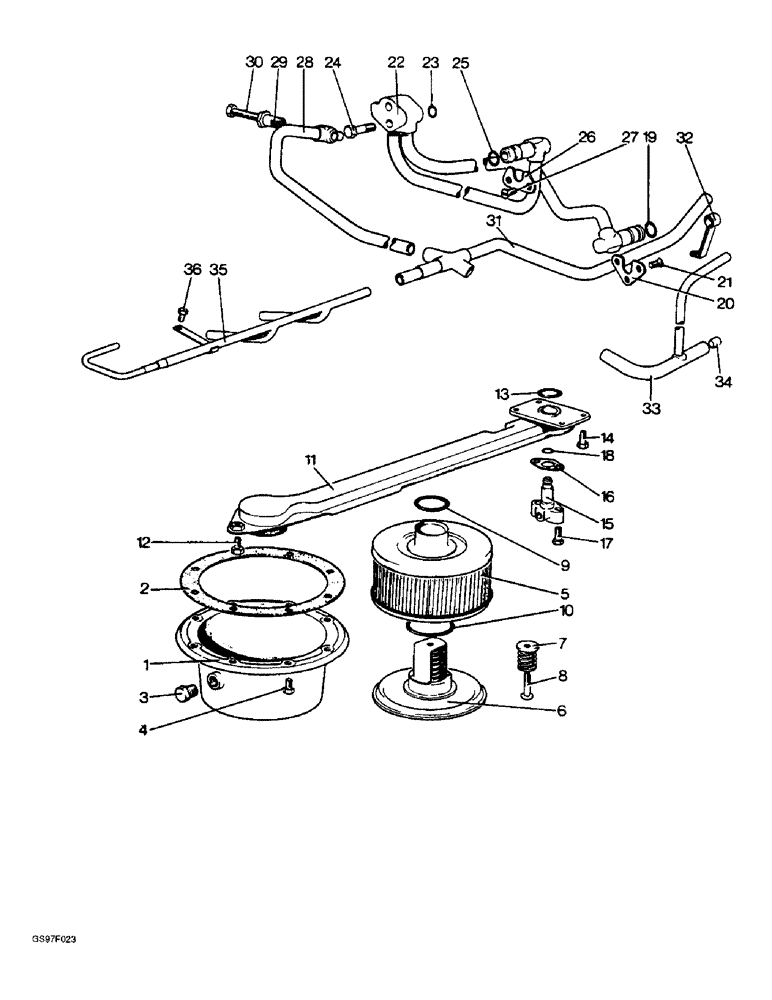

Запчасти Case IH 885 (8-04) - OIL FILTER AND PIPES, 885 NARROW TRACTORS (08) - HYDRAULICS

1

K920520

COVER

- rear sump

1шт.

2

K262768

GASKET

- rear sump cover (Replaces gasket K906764)

1шт.

3

K19581

PLUG

- drain, 1/4 inch BSP

1шт.

K626765

GASKET

WASHER - sealing, 1/2 inch

1шт.

4

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (Replaces bolt K602802)

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

8шт.

K920806

FILTER, ELEMENT

FILTER ASSEMBLY - oil, order valve assembly K920521 and element K920522, Includes: Ref. 5 - 10

1шт.

5

K920522

FILTER, ELEMENT

ELEMENT - filter

1шт.

6

K920521

VALVE

ASSEMBLY - includes screen, Includes: Ref. 8, Magnet, and Nut

1шт.

7

K904390

PLUG

MAGNET - valve, no longer available, order valve assembly K920521 (Replaces magnet K942788)

1шт.

8

K624300

SCREW

- hex, 2 BA x 1-1/2 inch, no longer available

1шт.

K623002

LOCK NUT

- Nyloc, 2 BA

1шт.

9

238-5220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

(Replaces O-ring K15279) -220, 70 Duro, 1.359" ID x .139" Thk

1шт.

10

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

(Replaces O-ring K623524) -227, 70 Duro, 2.109" ID x .139" Thk

1шт.

11

K920860

PIPE

- oil suction

1шт.

12

K602850

SCREW,Set, 5/16" - 18 x 1 1/8", Gr S

- hex, 5/16 NC x 1-1/8 inch

1шт.

K626620

SPRING WASHER

- lock, 5/16 inch, no longer available

1шт.

13

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING - 1-1/4 inch ID, Serial Range: pipe-pump

1шт.

14

K12131

BOLT

- hex, 1/4 BSF x 9/16 inch, Serial Range: pipe-pump

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Pipe to pump (Replaces washer K19480) 1/4"

4шт.

15

K921214

ADAPTER

- warning lamp switch

1шт.

16

K921220

GASKET

- adapter to PTO housing

1шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Adapter to PTO housing (Replaces bolt K602705) Hex, 1/4"-20 x 1", G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Adapter to PTO housing 1/4"

2шт.

18

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4 inch ID

1шт.

19

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

(Replaces O-ring K24676) -114, 90 Duro, .612" ID x .103" Thk

1шт.

20

K89170

SHIM

PLATE - clamping

1шт.

21

K604094

SCREW

- hex, 1/4 NC x 5/8 inch

3шт.

22

K917039

PIPE

- control valve and ram cylinder, no longer available

1шт.

23

K625408

O-RING

- 7/16 inch ID (Replaces O-ring K24779)

2шт.

24

107-1618

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/8", G8

BOLT - hex, 3/8 NC x 1-5/8 inch

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

25

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

(Replaces O-ring K24676) -114, 90 Duro, .612" ID x .103" Thk

1шт.

26

K910105

WASHER

PLATE - clamping

1шт.

27

K604094

SCREW

- hex, 1/4 NC x 5/8 inch (Replaces screw K603662)

2шт.

28

K917049

PIPE

- lubrication, valve to cross piece, no longer available

1шт.

29

K912269

BUSHING

- threaded, axle housing

1шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC (Replaces nut K607084)

1шт.

K626577

WASHER

- sealing,1/2 inch

1шт.

30

113-107

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5, Full Thd

- hex, 5/16 NC x 2-3/4 inch (Replaces bolt K602819)

1шт.

B90396

HARDWARE

NUT - lock, 5/16 inch NC, no longer available

1шт.

31

K917089

FITTING

PIPE - lubrication, PTO, no longer available

1шт.

32

K621660

CLIP

- PTO pipe, no longer available

1шт.

33

K917082

PIPE

- lubrication, ram cylinder, no longer available

1шт.

34

K925195

PLUG

- pipe, no longer available

1шт.

432-416

COTTER PIN,1/16" x 1"

pipe location 1/16" x 1"

2шт.

35

K929551

PIPE,18.937, 4" L

- lubrication, gearbox 12-speed

1шт.

36

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt K602701)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.
