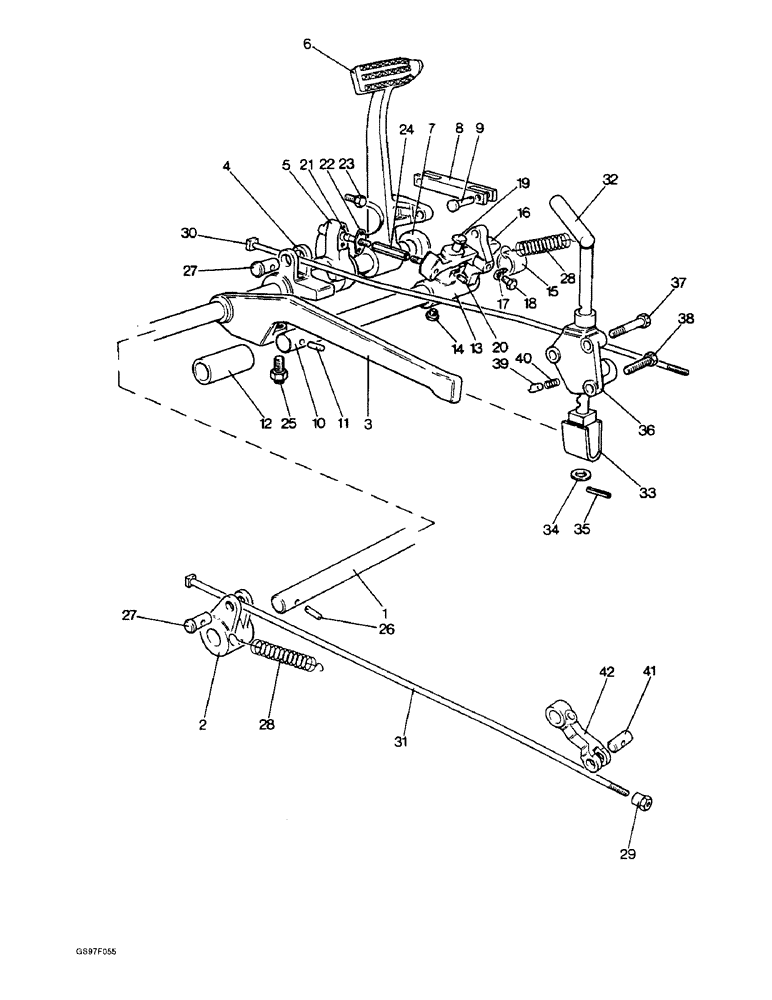

Запчасти Case IH 885 (7-16) - BRAKE MECHANISM, 885 HIGHWAY TRACTORS (07) - BRAKES

1

K972801

SHAFT

- cross, no longer available

1шт.

2

K912043

LEVER

- left-hand, no longer available

1шт.

K12302

SHIM,.010" Thk

No longer available .010" Thk

1шт.

3

K929826

LEVER

- operating, hand brake, no longer available

1шт.

4

K972800

LEVER

- right-hand, no longer available

1шт.

5

K972799

LEVER

- front brake, no longer available

1шт.

6

K925065

PEDAL

- brake, no longer available

1шт.

7

K972805

COLLAR

- brake pedal, no longer available

1шт.

8

K972806

LINK

- brake pedal, no longer available

1шт.

9

K14227

PIN

- clevis, 3/8 x 1-1/16 inch, no longer available

2шт.

K19472

WASHER

- flat, 3/8 inch

2шт.

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), (Replaces pin K19528) 3/32" x 3/4"

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

6шт.

10

K972802

SHAFT

- carrier , no longer available

1шт.

11

135-100

PULLEY

PIN - carrier shaft, 3/8 x 1-1/2 inch, no longer available

2шт.

12

K972803

BUSHING

TUBE - distance, left-hand, no longer available

1шт.

13

K972797

BEAM

CARRIER - compensator beam, no longer available

1шт.

14

K971938

PLUG

- carrier, 1/4 inch BSP, no longer available

1шт.

15

K972804

BUSHING

TUBE - distance, right-hand, no longer available

1шт.

16

K972798

BEAM

- compensator, no longer available

1шт.

17

K971939

SHIM

Spring anchor, No longer available

1шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, anchor to compensator beam (Replaces bolt K602803)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , anchor to compensator beam (Replaces washer K19481) 5/16"

1шт.

19

K971934

PIN

- compensator beam, 5/8 x 2 inch, no longer available

1шт.

20

135-55

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, (Replaces pin K19562) 3/16" x 1 1/4", Type A

1шт.

21

K971935

ROD

- push, no longer available

2шт.

22

K971936

SHIM

Retaining plate, No longer available

2шт.

23

K613982

SCREW

- hex, No. 10 NF x 3/8 inch, no longer available

4шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

4шт.

24

K972808

SLEEVE

- adjusting, long, no longer available

1шт.

86637933

JAM NUT,5/16" - 24, Gr 5

(Replaces nut K617051) Jam, 5/16"-24, G5

2шт.

25

K603044

SCREW

- set, 7/16 NC x 1-3/4 inch

1шт.

26

135-377

PIN, GROOVED

PIN - cross shaft, 3/8 x 2 inch (Replaces pin K623732)

3шт.

27

K919706

PIN

- brake rods (Replaces pin K38639)

2шт.

28

K624927

SPRING

- return (Replaces spring K14809)

2шт.

29

K607525

NUT

- hex, 3/8 inch NC (Replaces nut K607504)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607002) 3/8"-16, G5

2шт.

30

K929655

BRAKE

ROD - brake, right-hand

1шт.

31

K929563

ROD

- brake, left-hand

1шт.

32

K916989

LEVER

- hand

1шт.

33

K949260

FORK

STIRRUP - housing

1шт.

34

K626736

WASHER

- spherical, no longer available

1шт.

35

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, (replaces pin K623892) 5/16" x 1 1/2", Slotted

1шт.

36

K926328

HOUSING

- hand lever (Replaces housing K912048)

1шт.

37

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex, 7/16 NC x 2-1/4 inch, housing to frame (Replaces bolt K600608)

1шт.

38

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch, housing to frame (Replaces bolt K603005)

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Housing to frame (Replaces washer K19483) 7/16"

3шт.

39

K909588

PAWL

- spring

1шт.

40

K14651

SPRING

- housing

1шт.

41

K14744

PIN

- lever, 3/4 x 1-1/2 inch

2шт.

42

K928589

LEVER

- cam

2шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

- hex jam, 7/16 inch NC (Replaces nut K607053)

1шт.
