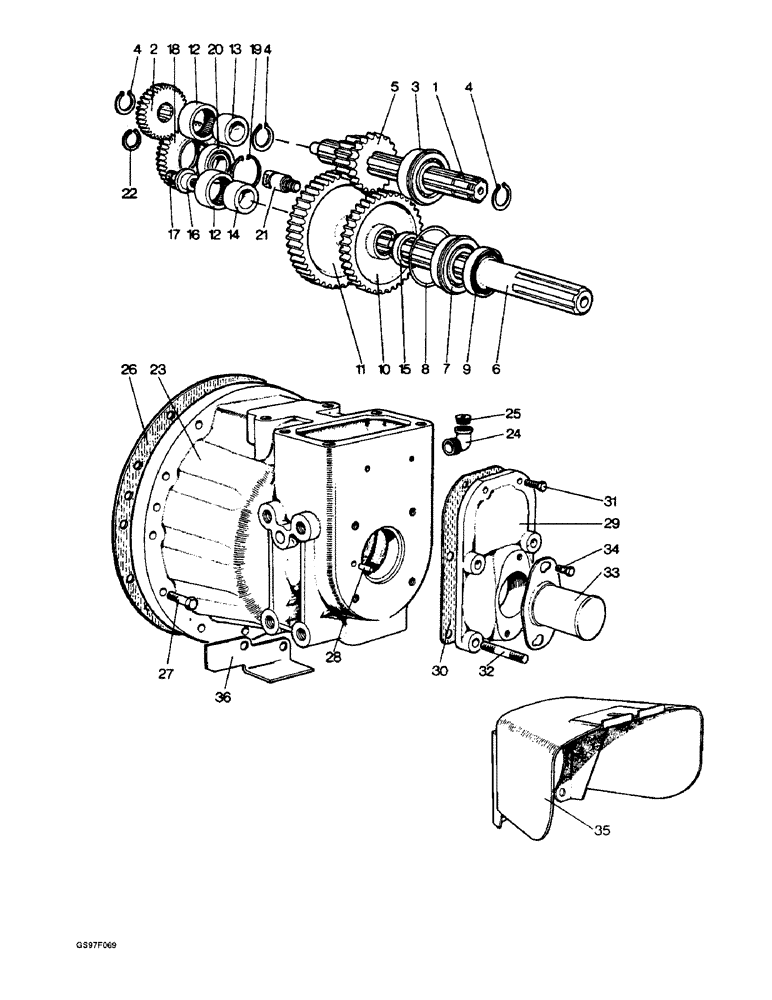

Запчасти Case IH 885 (6-06) - POWER TAKEOFF UNIT, 885 TRACTORS WITH MULTI-SPEED PTO UNITS AND TRACTOR SER. NOS. PRIOR TO 11002746 (06) - POWER TRAIN

K962921

PTO

UNIT - multi-speed PTO, complete

1шт.

K192700

PTO

UNIT - single-speed PTO, complete, no longer available, order components (Replaces unit K962920)

1шт.

1

K906735

DRIVE SHAFT

DRIVESHAFT - power takeoff

1шт.

2

K908094

GEAR

- pump drive, 29 helical teeth

1шт.

3

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

BEARING - ball, with snap ring

1шт.

4

103-11112

SNAP RING,#112, Ext

Ring, Snap, (Replaces ring K621535) #112, Ext

4шт.

5

K906688

GEAR

PINION - speed change, 13/19 tooth (Replaces pinion K921600)

1шт.

6

K906691

SHAFT

- driven

1шт.

7

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball, includes snap ring

1шт.

8

K915320

SHIM,.003" Thk

1шт.

8

K915321

SHIM,.005" Thk

1шт.

9

K11119

OIL SEAL

- oil, 1-5/8 x 2-1/2 x 5/16 inch

1шт.

10

K906689

GEAR

- multi-speed, 38 tooth

1шт.

11

K906692

GEAR

- power takeoff, 44 tooth

1шт.

12

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle roller, 1-3/4 in ID

2шт.

13

K906693

RING RACE

BEARING - inner, driveshaft

1шт.

14

K906694

BEARING

- inner, driven shaft

1шт.

15

K904431

BUSHING

SPACER - distance, multi-speed, no longer available

1шт.

15

K921602

BUSHING

SPACER - distance, single-speed, no longer available

1шт.

16

K919349

WASHER - retaining, with locking pin, no longer available

1шт.

17

K606894

SCREW

- cap, 7/16 NC x 1 inch, no longer available

1шт.

18

K923442

GEAR

- idler, pump drive, 36 tooth

1шт.

19

100-21244

SNAP RING,2.44", Int, #244

Ring, Snap, (Replaces K621436) 2.44", Int, #244

2шт.

20

P39667

BEARING

- ball (Replaces bearing K620102)

1шт.

21

K923441

PIN

- bearing, part of housing K963623

1шт.

22

K11128

CIRCLIP

RING - snap, 1 inch OD, part of housing K963623

1шт.

K626200

SHIM,.002" Thk

Part of housing K963623 .002" Thk

1шт.

K626203

SHIM,.010" Thk

Part of housing K963623 .010" Thk

1шт.

23

K951568

PTO

HOUSING - power takeoff, no longer available (Replaces housing assembly K963623)

1шт.

23

K921599

PTO

HOUSING - power takeoff

1шт.

23

K963623

PTO

HOUSING ASSEMBLY - power takeoff, no longer available, order housing K921599, pin K923441, shim K626200 and shim K626203, Includes: Ref. 24 and 25

1шт.

24

K622127

FITTING

ELBOW - housing

1шт.

25

K12362

PLUG

- taper, 1 inch BSP

1шт.

26

K205398

GASKET

- housing and support plate to rear axle (Replaces gasket K922591)

1шт.

27

13-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch, housing and support plate to rear axle (Replaces bolt K600605)

11шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Housing and support plate to rear axle (Replaces washer K19483) 7/16"

11шт.

28

K25360

PIN

- dowel, 1/4 x 9/16 inch

2шт.

29

K906686

COVER

- end

1шт.

30

K924217

GASKET

- power takeoff

1шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt K602805)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC (Replaces nut K607001)

1шт.

K15498

SEALING WASHER

WASHER - sealing, 5/16 inch

1шт.

32

K608311

STUD

- multi-speed, 7/16 NC x 2-5/16 inch

4шт.

32

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Single-speed (Replaces bolt K600604) Hex, 7/16"-14 x 1 3/4", G5

4шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K19483) 7/16"

4шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Replaces nuts K607003 and B90348)

4шт.

33

K909111

COVER

- PTO shaft

1шт.

K626682

WASHER

- flat, 5/16 inch

2шт.

34

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces bolt K602840)

2шт.

35

K906893

GUARD

- PTO

1шт.

36

K928304

SHIM

GUARD - hydraulic filter switch

1шт.
