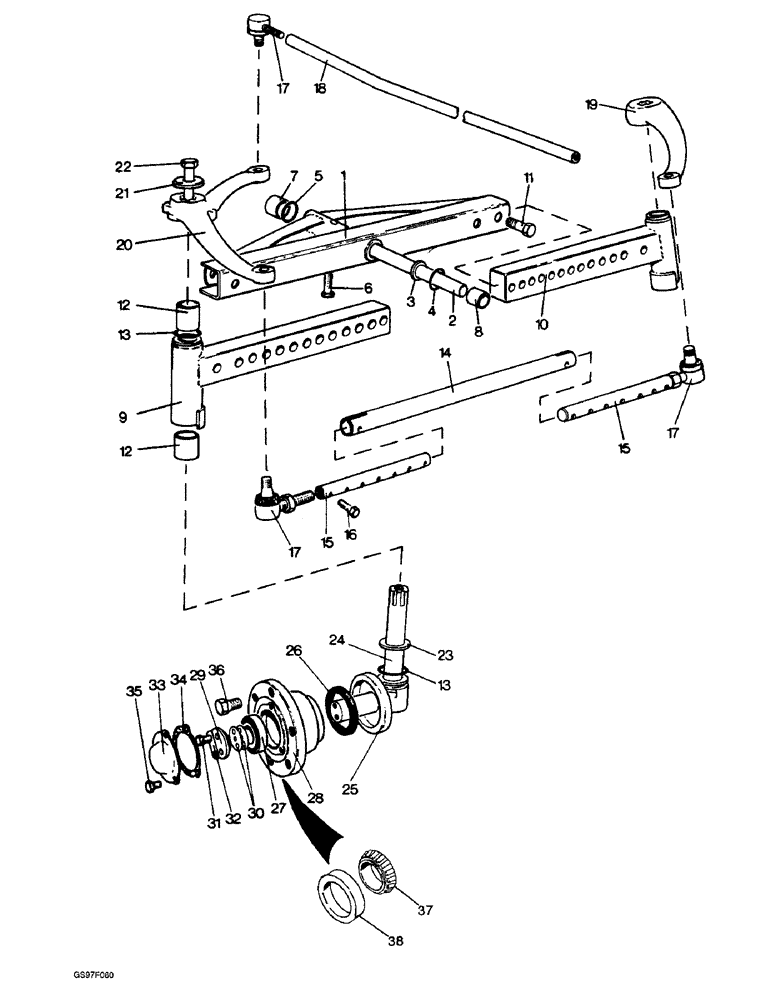

Запчасти Case IH 885 (5-16) - FRONT AXLE, 885 NARROW TRACTORS (05) - STEERING

1

K946205

BEAM

- center, no longer available

1шт.

2

K942480

TRUNNION

PIN - trunnion

1шт.

3

K917440

WASHER

- thrust

2шт.

4

238-5329

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- 2 ID x 3/16 inch wide (Replaces O-ring K14508)

2шт.

5

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

(Replaces O-ring K16351) -214, 70 Duro, .984" ID x .139" Thk

1шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Replaces bolt K600508)

1шт.

K913092

NUT

BUSHING - threaded

1шт.

7

K621427

BUSHING

- front, main frame

1шт.

8

K262791

BUSHING

- rear, main frame (Replaces bushing K621301)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

6шт.

K942479

ADAPTER

- trunnion pin, 7/16 NC x 1/4 inch NF

1шт.

9

K965869

BEAM

EXTENSION - beam, left-hand, includes bushings (Replaces extension K964981)

1шт.

10

K965868

BEAM

EXTENSION - beam, right-hand, includes bushings (Replaces extension K964980)

1шт.

11

K601210

BOLT (SPREADER)

BOLT - hex, 5/8 NC x 2-3/4 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

4шт.

12

K11598

BUSHING

- axle

4шт.

13

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

(Replaces O-ring K15594) -226, 70 Duro, 1.984" ID x .139" Thk

4шт.

14

K916454

BUSHING

TUBE - spacer, 23 inch (584 mm) long, track rods, no longer available

1шт.

15

K916455

ROD

- track, no longer available

2шт.

16

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch (Replaces bolt K600316)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607044)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

2шт.

17

K908071

BALL JOINT

SOCKET ASSEMBLY - ball, Includes: Excluder and Nut's

4шт.

K961701

BOOT

EXCLUDER - dirt, rubber

1шт.

K622500

LOCK NUT

- lock, special, 3/4 inch

1шт.

231-2448

LOCK NUT,1/2"-20, GB

NUT - light hex, self-locking, 1/2 inch NF (Replaces nut K617314)

1шт.

K956166

LINK

ASSEMBLY - drag, complete, tractor serial number 11011202 and after, no longer available, Includes: Ref. 18, Socket Assembly, Excluder, and Nut's

1шт.

K907483

LINK ASSEMBLY - drag, complete, tractor serial numbers prior to 11011202, no longer available as a unit, order components, Includes: Ref. 18, Socket Assembly, Excluder, and Nut's

1шт.

18

K907482

LINK

TUBE - drag link, no longer available

1шт.

K207721

BALL JOINT

SOCKET ASSEMBLY - ball, tractor serial number 11011202 and after (Replaces socket assembly K923766), Includes: Excluder and Nut's

1шт.

K962155

CAP

EXCLUDER - dirt

1шт.

131-377

LOCK NUT,5/8"-11, GC

NUT - Nyloc, 5/8 inch NF

1шт.

K622500

LOCK NUT

- lock, special, 3/4 inch

1шт.

19

K916456

LEVER

- steering, right-hand, no longer available

1шт.

20

K954062

LEVER

- steering, left-hand (Replaces lever K916457)

1шт.

21

K15595

WASHER

- special, 5/8 inch

2шт.

22

B90207

SPECIAL BOLT

BOLT - hex, 5/8 NC x 2-3/4 inch (Replaces bolt K601210)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

2шт.

23

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

- thrust

2шт.

24

K962593

SHAFT

AXLE ASSEMBLY - stub, no longer available

1шт.

25

K928104

SEAL

HOUSING - oil seal, no longer available

1шт.

K25360

PIN

- dowel, 1/4 x 5/8 inch

1шт.

26

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

- oil, 3-1/4 x 4-1/4 x 5/8 inch

1шт.

27

K620046

BEARING

- tapered roller, no longer available, order cup 618024R1 and bearing 618023R91, Ref. 37 and 38

4шт.

28

K907422

HUB

- front, no longer available

2шт.

29

K907395

WASHER

- special, no longer available

2шт.

30

K907398

SHIM,.005" Thk

No longer available .005" Thk

1шт.

30

K907397

SHIM,.010" Thk

No longer available .010" Thk

1шт.

30

K907396

SHIM,.030" Thk

No longer available .030" Thk

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt K602904)

4шт.

32

K907423

WASHER

- tab, no longer available

2шт.

33

K907399

HUB

CAP - hub, no longer available

2шт.

34

K907421

GASKET

- hub cap, no longer available

2шт.

35

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (Replaces bolt K602802)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

6шт.

36

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

BOLT - wheel, 1/2 NC x 1 inch

12шт.

37

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - tapered roller

4шт.

38

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller

4шт.
