Запчасти Case IH 885 (5-12) - HYDROSTATIC STEERING RAM (05) - STEERING

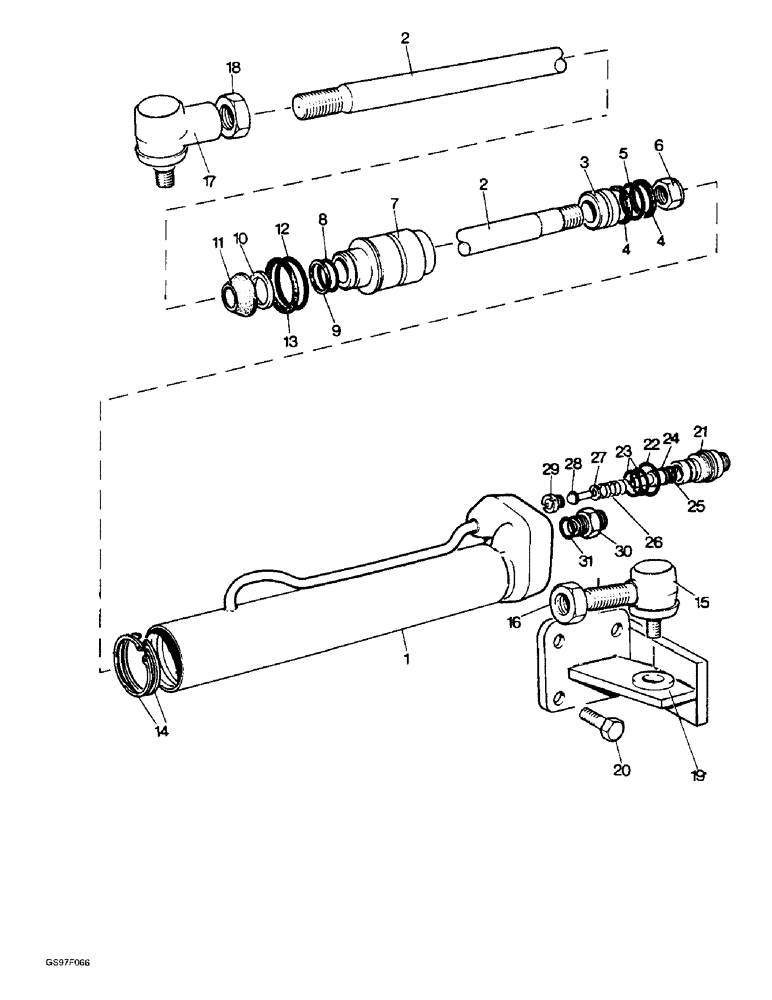

Схема запчастей Case IH 885 - (5-12) - HYDROSTATIC STEERING RAM (05) - STEERING
23
10
18
27
25
17
4
5
11
3
16
12
4
30
6
9
8
31
1
22
2
20
24
14
2
19
26
13
29
28
21
15
7

Артикул

Название

Примечание

Количество

K945702

CYLINDER

RAM ASSEMBLY - hydraulic, Includes: Ref. 1 - 18

1шт.

1

K945703

TUBE

HOUSING - ram cylinder, no longer available

1шт.

2

K929056

ROD

- ram

1шт.

3

K925321

PISTON

- ram rod, no longer available

1шт.

4

K628912

WASHER

RING - back-up, 1-1/2 inch ID

2шт.

5

238-5325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 5, 75 Duro

-325, 70 Duro, 1.475" ID x .210" Thk (Replaces O-ring K24744)

1шт.

6

K607446

NUT

- lock, 3/4 inch NC

1шт.

7

K925322

SLEEVE

- ram rod

1шт.

8

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

(Replaces O-ring K623677) -214, 70 Duro, .984" ID x .139" Thk

1шт.

9

S7176

WASHER

RING - back-up, 1 inch ID (Replaces back-up washer K628911)

1шт.

10

K623762

O-RING,0.99" ID x 0.147" Width

- sealing, 1 inch ID (Replaces sealing ring K623762)

1шт.

11

K691596

SEAL

- scraper

1шт.

12

238-6223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

- 1-5/8 ID x 1/8 inch wide (Replaces O-ring K24737)

1шт.

13

K24738

RING,41.07mm ID x 47.88mm OD x 1.83mm Thk

- anti-extrusion, 1-5/8 inch ID

1шт.

14

K11744

RING, SNAP

RING - snap, 1-7/8 inch ID, no longer available

2шт.

15

K207721

BALL JOINT

SOCKET ASSEMBLY - ball, housing (Replaces socket assembly K923766), Includes: Ref. 16, Excluder, and Nut

1шт.

K962155

CAP

EXCLUDER - dirt

1шт.

131-377

LOCK NUT,5/8"-11, GC

NUT - Nyloc, 5/8 inch NF (Replaces nut K617306)

1шт.

16

K622500

LOCK NUT

- lock, 3/4 inch, special

1шт.

17

K929057

BALL JOINT

SOCKET ASSEMBLY - ball, ram rod, Includes: Ref. 18, Excluder, and Nut

1шт.

K962155

CAP

EXCLUDER - dirt

1шт.

131-377

LOCK NUT,5/8"-11, GC

NUT - Nyloc, 5/8 inch NF (Replaces nut K617306)

1шт.

18

K617289

LOCK NUT

- lock, 7/8 inch, special

1шт.

19

K200961

BRACKET

- anchor (Replaces bracket K943341)

1шт.

20

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

- hex, 5/8 NC x 1-5/8 inch, without loader (Replaces bolt K603307)

4шт.

20

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch, with loader (Replaces bolt K603313)

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

4шт.

K945714

VALVE

ASSEMBLY - line, no longer available, Includes: Ref. 21 - 29

1шт.

21

K945758

CYLINDER

BODY - valve, no longer available (Replaces body K945571)

1шт.

22

K623663

O-RING,0.924" ID x 0.116" Width

- 15/16 inch ID

1шт.

23

K628850

O-RING,0.612" ID x 0.139" Width

- 9/16 inch ID

2шт.

24

K945567

SPRING

SUPPORT - spring

1шт.

25

K24554

O-RING

- valve body

1шт.

26

K625520

SPRING

- valve body (Replaces spring K12043)

1шт.

27

K945570

WASHER

- abutment

1шт.

28

K945569

VALVE

PLUNGER - valve, no longer available

1шт.

29

K945568

VALVE

SEAT - valve, no longer available

1шт.

30

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces adapter K626039), Incl. Ref 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces O-ring K623591)

1шт.

K962555

SEAL

KIT - seal, ram

1шт.

K963550

SEALING RING

- seal, line valve, no longer available as a kit, order components

1шт.

Выбрано товаров: 41
