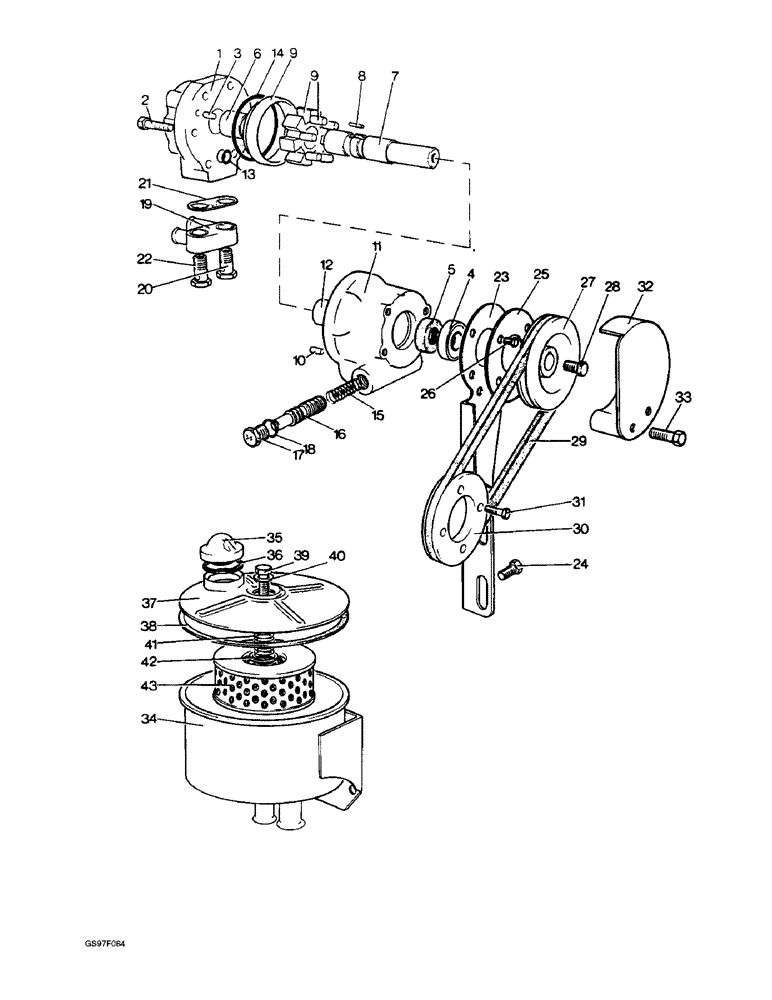

Запчасти Case IH 885 (5-10) - HYDROSTATIC STEERING PUMP AND RESERVOIR (05) - STEERING

K944379

PUMP

ASSEMBLY - hydrostatic steering, Includes: Ref. 1 - 22

1шт.

1

K962316

COVER

- with bushing, no longer available

1шт.

2

K961108

SCREW - cover to body, no longer available

1шт.

3

K961096

PIN - dowel, no longer available

1шт.

4

K960754

BEARING

- steering shaft

1шт.

5

K961093

OIL SEAL

- oil, 3/4 inch, no longer available

1шт.

6

K961092

BUSHING

- cover, no longer available

1шт.

7

K961109

SHAFT

- steering pump

1шт.

8

K960738

DRIVE

PIN - drive, carrier

1шт.

9

K961104

CAM

- carrier and rollers, no longer available

1шт.

10

K961101

CAM

PEG - locking, cam, no longer available

1шт.

11

K962317

BODY - includes bushing

1шт.

12

K961092

BUSHING

- no longer available

1шт.

13

K961102

O-RING

- 3/8 inch, internal, no longer available

1шт.

14

K261800

SEAL

O-RING - 2-3/8 inch, internal (Replaces O-ring K961103)

1шт.

15

K961098

SPRING

- flow control, no longer available

1шт.

16

K962278

VALVE

- 700 lb/inch, no longer available

1шт.

17

K961099

PLUG, DRAIN

CAP - valve, no longer available

1шт.

18

K961619

O-RING

- 5/8 inch ID, no longer available (Replaces O-ring K961100)

1шт.

19

K963595

CONNECTOR, ELEC

CONNECTOR - inlet and by-pass pipes, no longer available

1шт.

20

K961833

BANJO BOLT

- banjo, inlet port

1шт.

K261987

ADAPTER

WASHER - copper, large, 13/16 inch (Replaces washer K965088)

1шт.

K261987

ADAPTER

WASHER - copper, small (Replaces washer K965433)

1шт.

21

K261987

ADAPTER

GASKET - connector to steering pump (Replaces gasket K965089)

1шт.

22

K963597

BOLT

- banjo, by-pass port, no longer available

1шт.

23

K953926

BRACKET

- support, steering pump (Replaces bracket K944380)

1шт.

24

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch (Replaces bolt K603308)

2шт.

K19475

WASHER

- flat, 5/8 inch, Serial Range: bracket-frame

2шт.

84057

LOCK WASHER,M16

WASHER, LOCK, (5/8"), Bracket to frame (Replaces washer K19485) M16

2шт.

25

K944977

RETAINER

- bearing

1шт.

26

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

- hex, 1/4 NF x 1 inch, bracket to pump (Replaces bolt K612705)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Bracket to pump (Replaces washer K19480) 1/4"

4шт.

27

K913630

PULLEY

- pump

1шт.

28

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, pulley to pump (Replaces bolt K602803)

1шт.

K904523

WASHER

- flat, 5/16 inch, special, pulley to pump, no longer available

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 7/16", pulley to pump (Replaces washer K19481)

1шт.

K82664

KEY

- 1/8 x 1/8 x 13/16 inch, Serial Range: pulley-pump

1шт.

29

K913631

BELT

V-BELT, Driving, Pump

1шт.

30

K916812

PULLEY

RIM - pulley

1шт.

31

413-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

- hex, 1/4 NC x 1-3/8 inch, rim to crankshaft (Replaces bolt K600144)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Rim to crankshaft (Replaces washer K19480) 1/4"

4шт.

32

K944975

GUARD

- pump pulley

1шт.

33

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- hex, 1/4 NC x 2-1/2 inch, pulley guard to bracket (Replaces bolt K600148)

2шт.

K626662

WASHER

- flat, 1/4 inch, pulley guard to bracket (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Pulley guard to bracket (Replaces washer K19480) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, pulley guard to bracket (Replaces nut K607043)

2шт.

34

K943592

RESERVOIR

ASSEMBLY - steering, Includes: Ref. 34 - 43

1шт.

35

K260852

CAP

- filler (Replaces cap K962515)

1шт.

36

K260852

CAP

RING - sealing, filler cap, no longer available (Replaces sealing ring K960483)

1шт.

37

K962517

COVER

- steering reservoir, no longer available

1шт.

38

K260913

GASKET KIT

COVER - sealing ring (Replaces cover K960725)

1шт.

39

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch (Replaces bolt K602844)

1шт.

K626682

WASHER

- flat, 5/16 inch

1шт.

40

K260913

GASKET KIT

WASHER - sealing, 5/16 inch, special (Replaces sealing washer K960723)

1шт.

41

K962190

VALVE SPRING

SPRING - steering reservoir, no longer available

1шт.

42

K962191

CAP

- element

1шт.

43

A42242

FILTER, ELEMENT

ELEMENT - steering reservoir (Replaces element K902187)

1шт.

K929292

BAFFLE

- hydrostatic steering

1шт.
