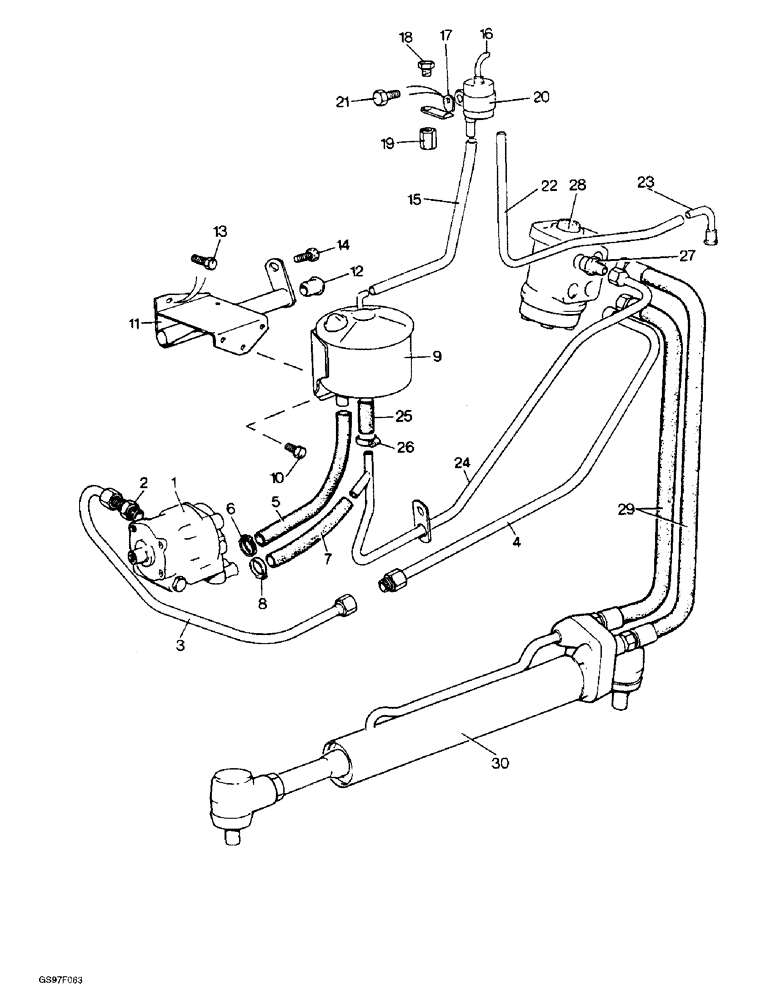

Запчасти Case IH 885 (5-08) - HYDROSTATIC STEERING SYSTEM, 885, 885H AND 885N TRACTORS (05) - STEERING

1

K944379

PUMP

ASSEMBLY - parts list Fig. 5-10

1шт.

2

K626059

ADAPTER

ADAPTOR - 3/4 - 5/8 inch NF, pump outlet

1шт.

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER - sealing, 5/8 inch (Replaces sealing washer K623518)

1шт.

3

K956056

PIPE ASSY.

PIPE - pump outlet (Replaces pipe K759670)

1шт.

4

K944972

PIPE

- pump to steering valve

1шт.

5

K913632

HOSE

- 5/8 x 12 inch (305 mm) long, pump inlet

1шт.

6

K622024

CLAMP

CLIP - hose, 7/8 inch (Replaces hose clip K13070)

2шт.

7

K944383

HOSE

- 1/2 x 8 inch (203 mm) long, pump by-pass

1шт.

Order one of the following hoses and cut to required length: S118388X, 168 inch (4267 mm) long; K949342, 9 inch (229 mm) long; L55952, 16 inch (407 mm) long; D64931, 19-1/2 inch (495 mm) long; D56379, 21 inch (533 mm) long; D64932, 21-1/2 inch (546 mm) long; D64933, 23-1/2 inch (597 mm) long; D65486, 26 inch (660 mm) long; D64269, 29 inch (737 mm) long; D63994, 32 inch (813 mm) long or H371856, 36 inch (914 mm) long.

1шт.

8

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp K622024) #10, 0.56/1.06 Type F Worm

2шт.

K19928

CLIP

- buckle, no longer available

1шт.

9

K943592

RESERVOIR

ASSEMBLY - parts list Fig. 5-10

1шт.

10

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, reservoir to bracket

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Reservoir to bracket (Replaces washer K19480) 1/4"

3шт.

11

K929980

BRACKET

- support, reservoir

1шт.

12

K627702

GROMMET

- bracket, no longer available

2шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Bracket to cylinder block Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

bracket to cylinder block 3/8"

1шт.

K19472

WASHER

- flat, 3/8 inch, bracket to cylinder block

1шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, bracket to cylinder block

1шт.

K626662

WASHER

- flat, 1/4 inch, bracket to cylinder block (Replaces washer K19470)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Bracket to cylinder block 1/4"

2шт.

15

K928174

BREATHER,0.375" OD x 28.75" L

TUBE - plastic, 5/16 x 10-1/2 inch (Replaces tube K940961)

1шт.

16

K940377

SEPARATOR

- oil

1шт.

17

K948007

BRACKET

- support, no longer available

1шт.

18

K619527

PLUG

- 1/2 inch NF

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K19484) 1/2"

1шт.

19

K947908

NUT

- special, 1/2 inch NF, no longer available

1шт.

20

K913053

WASHER

CLAMP - oil separator, no longer available

1шт.

K929320

CLIP

STRIP - rubber

1шт.

21

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (Replaces bolt K602802)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607001)

1шт.

22

K928174

BREATHER,0.375" OD x 28.75" L

TUBE - plastic, 5/16 x 30 inch (762 mm) long

1шт.

23

K928171

BREATHER

ELBOW - 1/2 inch NF

2шт.

K15735

WASHER

- 1/2 inch

4шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

(Replaces nut K617054) Jam, 1/2"-20, G5

1шт.

24

K944973

PIPE

- steering valve to reservoir, no longer available

1шт.

25

K926892

PIPE

HOSE - 1/2 x 2-1/2 inch, no longer available

1шт.

Order one of the following hoses and cut to required length: S118388X, 168 inch (4267 mm) long; K949342, 9 inch (229 mm) long; L55952, 16 inch (407 mm) long; D64931, 19-1/2 inch (495 mm) long; D56379, 21 inch (533 mm) long; D64932, 21-1/2 inch (546 mm) long; D64933, 23-1/2 inch (597 mm) long; D65486, 26 inch (660 mm) long; D63994, 32 inch (813 mm) long or H371856, 36 inch (914 mm) long.

1шт.

26

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp K622024) #10, 0.56/1.06 Type F Worm

2шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces adapter K626039)

4шт.

28

K946083

VALVE

- steering, no longer available, order valve K207419 and adapter 218-5066

1шт.

28

K207419

VALVE

- steering, Orbitrol

1шт.

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

29

K945756

HOSE

PIPE - flexible, 3/4 NF x 3/4 inch (19 mm) long

2шт.

K19928

CLIP

- buckle

3шт.

30

K945702

CYLINDER

RAM ASSEMBLY - steering, parts list Fig. 5-12

1шт.
