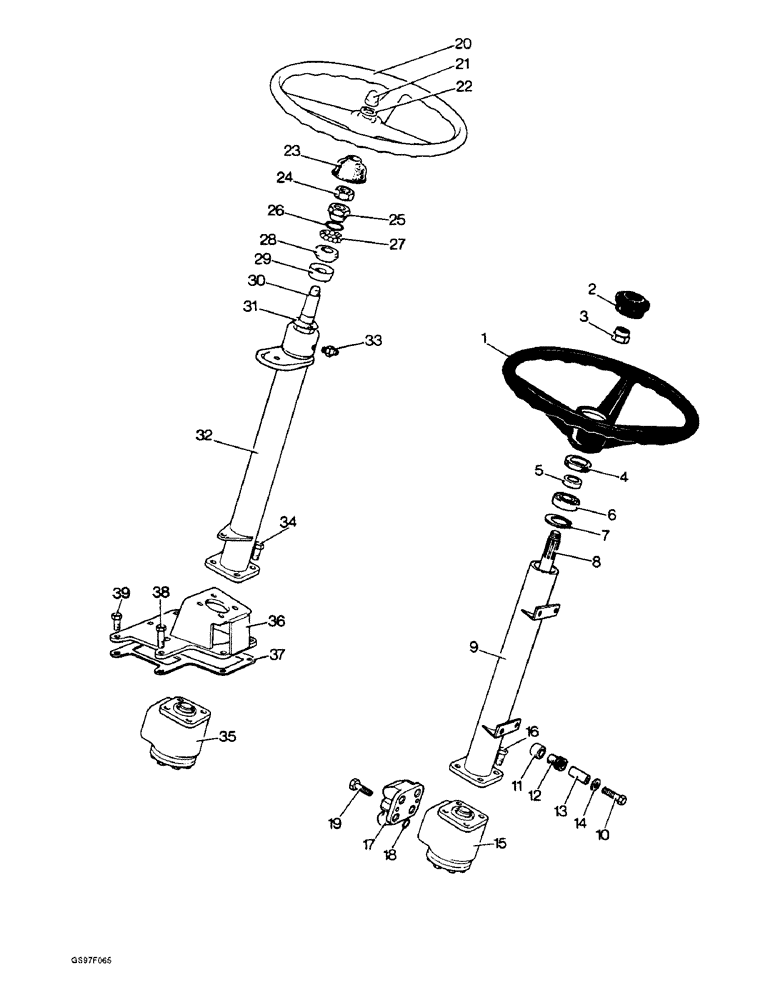

Запчасти Case IH 885 (5-04) - STEERING COLUMN AND VALVE (05) - STEERING

1

K949446

HANDWHEEL

WHEEL - steering, 15 inch, black, used with 885LP, 885Q, 885QH and 885Sk tractors

1шт.

2

K952274

CAP

- hub, used with 885LP, 885Q, 885QH and 885Sk tractors, no longer available, order cap K262737 and sealing ring K691285

1шт.

2

K262737

CAP

- hub, steering

1шт.

K691285

SEAL

RING - sealing, 1-3/4 inch ID, used with hub cap K262737

1шт.

3

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC, used with 885LP, 885Q, 885QH and 885Sk tractors (Replaces nut K607304)

1шт.

K626686

WASHER

- flat, 1/2 inch, used with 885LP, 885Q, 885QH and 885Sk tractors

1шт.

4

K623467

SEAL

WASHER - felt, used with 885LP, 885Q, 885QH and 885Sk tractors, no longer available

1шт.

5

K627103

BUSHING

PIECE - distance, used with 885LP, 885Q, 885QH and 885Sk tractors

1шт.

6

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- ball, used with 885LP, 885Q, 885QH and 885Sk tractors

1шт.

7

K11911

RING, SNAP

RING - snap, 1-5/8 inch, used with 885LP, 885Q, 885QH and 885Sk tractors

1шт.

8

K950172

SHAFT

- used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

8

K201618

SHAFT

- used with 885LP tractors, no longer available

1шт.

9

K951199

SUPPORT

COLUMN - steering, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

9

K201650

SUPPORT

COLUMN - steering, used with 885LP tractors, no longer available

1шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

Steering column to console, Used with 885LP, 885Q, 885QH and 885Sk tractors (Replaces bolt K600369) Hex, 5/16"-18 x 1 3/4", G5

4шт.

11

K627305

BUSHING

SPACER - steering column to console, used with 885LP, 885Q, 885QH and 885Sk tractors, no longer available

4шт.

12

K950214

RUBBER

MOUNTING - rubber, steering column to console, used with 885LP, 885Q, 885QH and 885Sk tractors, no longer available

4шт.

13

K627086

BUSHING

SPACER - steering column to console, used with 885LP, 885Q, 885QH and 885Sk tractors, no longer available

4шт.

14

K626884

WASHER

- special, 5/16 inch, steering column to console, used with 885LP, 885Q, 885QH and 885Sk tractors, no longer available

4шт.

15

K946083

VALVE

- steering, Orbitrol, type OSP 125, used with 885LP, 885Q, 885QH and 885Sk tractors, no longer available, order valve K207419 and adapter 218-5066

1шт.

15

K207419

VALVE

- steering, Orbitrol

1шт.

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. O-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Valve to column, used with 885LP, 885Q, 885QH and 885Sk tractors Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

valve to column, used with 885LP, 885Q, 885QH and 885Sk tractors 3/8"

4шт.

17

K951452

FITTING

BLOCK - connecting, used with 885LP, 885Q, 885QH and 885Sk tractors, no longer available

1шт.

18

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

Used with 885LP, 885Q, 885QH and 885Sk tractors (Replaces O-ring K15028) -118, 90 Duro, .862" ID x .103" Thk

4шт.

19

K624682

SCREW

- hex, M10 x 25 mm, used with 885LP, 885Q, 885QH and 885Sk tractors, no longer available

2шт.

20

K912634

HANDWHEEL

WHEEL - steering, 16 inch, black, used with 885, 885G, 885H and 885N tractors, no longer available (Replaces steering wheel K914235)

1шт.

21

129-881

NUT,Crown, 5/8"-11

- dome, 5/8 inch NC, used with 885, 885G, 885H and 885N tractors (Replaces nut K905679)

1шт.

22

K626671

WASHER

- special, 5/8 inch, used with 885, 885G, 885H and 885N tractors

1шт.

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Used with 885, 885G, 885H and 885N tractors (Replaces key K19608) #9, 3/16" x 3/4"

1шт.

23

K923681

SEAL

EXCLUDER - dirt, used with 885, 885G, 885H and 885N tractors

1шт.

24

K924967

NUT

- lock, used with 885, 885G, 885H and 885N tractors

1шт.

25

K903463

BEARING CONE

CONE - adjustable bearing, used with 885, 885G, 885H and 885N tractors

1шт.

26

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

- 1-1/4 inch, internal, used with 885, 885G, 885H and 885N tractors

1шт.

27

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch, grade 24, used with 885, 885G, 885H and 885N tractors (Replaces ball K13506)

12шт.

28

K903462

SPHERICAL BEARING

BEARING - lower, used with 885, 885G, 885H and 885N tractors

1шт.

29

K903461

SPACER

SEATING - spherical, used with 885, 885G, 885H and 885N tractors

1шт.

30

K943340

SHAFT

- 17-1/8 inch, used with 885, 885G, 885H and 885N tractors, no longer available

1шт.

31

K903469

PAD, RUBBER

BAFFLE - rubber, used with 885, 885G, 885H and 885N tractors

1шт.

32

K943336

SUPPORT ASSY.

COLUMN - steering, used with 885, 885G, 885H and 885N tractors, no longer available

1шт.

33

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, Used with 885, 885G, 885H and 885N tractors (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

34

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch, column to valve, used with 885, 885G, 885H and 885N tractors (Replaces bolt K600403)

4шт.

492-11038

LOCK WASHER,3/8"

column to valve, used with 885, 885G, 885H and 885N tractors (Replaces washer K19482) 3/8"

4шт.

35

K946083

VALVE

- steering, Orbitrol, type OSP 125, used with 885, 885G, 885H and 885N tractors, no longer available, order valve K207419 and adapter 218-5066

1шт.

35

K207419

VALVE

- steering, Orbitrol

1шт.

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. O-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

36

K943335

SUPPORT

BRACKET - support, used with 885, 885G, 885H and 885N tractors, no longer available

1шт.

37

K914138

GASKET

- bracket to gearbox cover, used with 885, 885G, 885H and 885N tractors

1шт.

38

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, bracket to gearbox cover, used with 885, 885G, 885H and 885N tractors (Replaces bolt K600404)

2шт.

39

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Cover, used with 885, 885G, 885H and 885N tractors (Replaces bolt K602903) Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

cover, used with 885, 885G, 885H and 885N tractors (Replaces washer K19482) 3/8"

6шт.

1500443C92

SEAL KIT

KIT - seal, steering valve (Replaces kit K962387)

1шт.
