Запчасти Case IH 885 (5-02) - STEERING COLUMN AND BOX, 885, 885G, 885H AND 885N TRACTORS (05) - STEERING

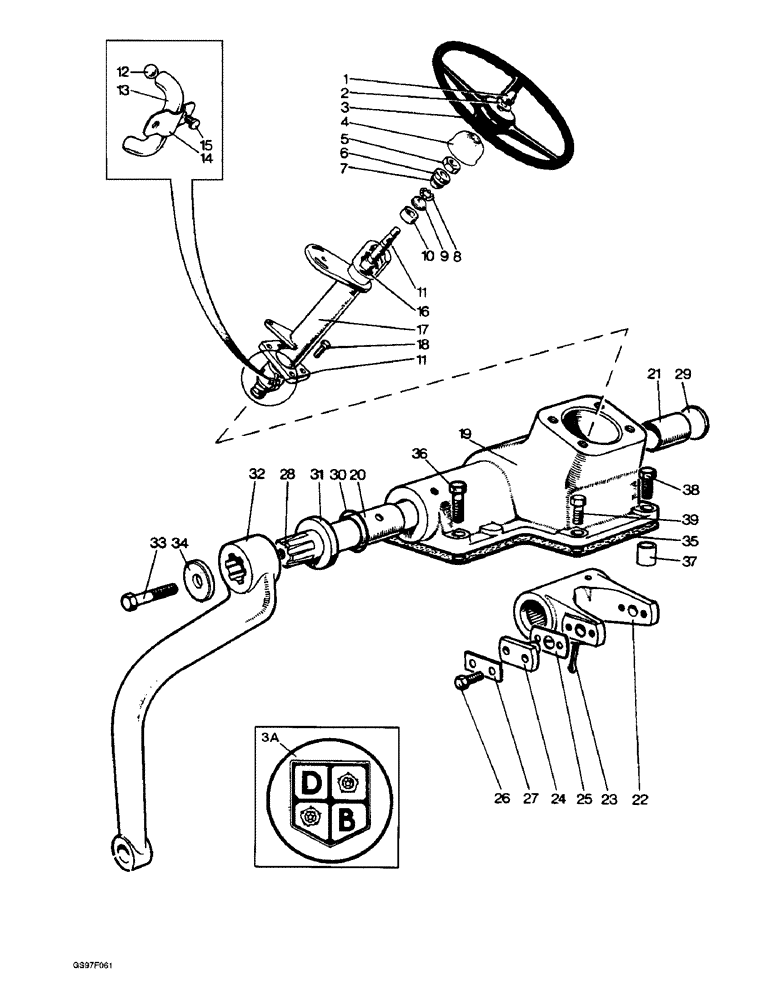

Схема запчастей Case IH 885 - (5-02) - STEERING COLUMN AND BOX, 885, 885G, 885H AND 885N TRACTORS (05) - STEERING
36
8
20
39
32
28
13
27
12
9
5
38
11
25
24
1
29
18
7
31
23
35
21
34
4
22
14
6
3a
15
16
19
33
2
26
37
10
11
17
30
3

Артикул

Название

Примечание

Количество

1

129-881

NUT,Crown, 5/8"-11

- dome, 5/8 inch NC (Replaces nut K905679)

1шт.

2

K626671

WASHER

- special, 5/8 inch

1шт.

3

K83746

WHEEL

- steering, black, used with 885, 885G and 885H tractors, no longer available, order steering wheel K956407 below, hub cap K300074 and decal K952168, Ref. 3A

1шт.

3

K912634

HANDWHEEL

WHEEL - steering, 16 inch, black, used with 885N tractors, no longer available

1шт.

3

K956407

SCREW

WHEEL - steering, three arm

1шт.

K300074

COVER

CAP - hub, steering wheel, used with wheel K956407

1шт.

3a

K952168

DECAL

- steering wheel, used with wheel K956407

1шт.

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(Replaces key K19608) #9, 3/16" x 3/4"

1шт.

4

K923681

SEAL

EXCLUDER - dirt

1шт.

K913446

STEERING COLUMN

COLUMN ASSEMBLY - steering, used with 885, 885G and 885H tractors, Includes: Ref. 5 - 17 and Fitting

1шт.

K926412

STEERING COLUMN

COLUMN ASSEMBLY - steering, used with 885N tractors, no longer available, Includes: Ref. 5 - 17 and Fitting

1шт.

5

K924967

NUT

- lock

1шт.

6

K903463

BEARING CONE

CONE - adjustable bearing

1шт.

7

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

- 1-1/4 inch, internal

1шт.

8

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch, grade 24 (Replaces ball K13506)

1шт.

9

K903462

SPHERICAL BEARING

BEARING - lower

1шт.

10

K903461

SPACER

SEATING - spherical

1шт.

11

K906765

STEERING COLUMN

NUT AND SCREW - steering, 23-1/2 inch, used with column assembly K913446, Includes: Ref. 12 - 15 and Nut

1шт.

11

K926413

SCREW

NUT AND SCREW - steering, 20-7/8 inch, used with column assembly K925412, no longer available, Includes: Ref. 12 - 15 and Nut

1шт.

K961672

NUT

- steering, order nut and screw assembly K912411

1шт.

12

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 200 (Replaces ball K11286)

28шт.

13

K960990

TUBE NUT

TUBE - transfer, two halves

1шт.

14

K960991

RETAINER

CLIP - transfer tube

1шт.

15

K960992

BOLT

- special, 1/4 inch NF

2шт.

16

K903469

PAD, RUBBER

BAFFLE - rubber

1шт.

17

K913447

SUPPORT

COLUMN - steering, used with column assembly K913446, no longer available

1шт.

17

K926415

SUPPORT

COLUMN - steering, used with column assembly K926412, no longer available

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

18

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch (Replaces setscrew K600602)

4шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K19483) 7/16"

4шт.

19

K962512

BOX

- steering, with brushes

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

2шт.

20

K262791

BUSHING

- long, drop arm shaft (Replaces bushing K621301)

1шт.

21

K621300

BUSHING

- short, drop arm shaft

1шт.

22

K944419

ROCKER

ARM - rocker , no longer available

1шт.

23

B88460

PIN - split, 3/16 x 2-1/4 inch, no longer available

1шт.

24

K912108

BALL

PEG - ball

1шт.

25

K900945

GASKET

SHIM - 0.003 inch

1шт.

25

K900946

SHIM,.005" Thk

1шт.

25

K900947

GASKET

SHIM - 0.007 inch

1шт.

25

K900948

SHIM,.010" Thk

1шт.

26

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt K602702)

4шт.

27

K912109

WASHER

- tab

2шт.

28

K913730

SHAFT

- drop arm, no longer available

1шт.

29

41-20

PLUG,Exp, 1 1/4"

- expansion, 1-1/4 inch

1шт.

30

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING - internal, 1-1/4 inch

1шт.

31

K915707

BUSHING

SPACER - drop arm shaft, no longer available

1шт.

32

K924970

ARM

- drop, used with 885, 885G and 885H tractors

1шт.

32

K924969

ARM

- drop, used with 885N tractors, no longer available

1шт.

33

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch, Drop arm shaft (Replaces bolt K600808)

1шт.

34

K910646

WASHER

- special, 1/2 inch, drop arm shaft, no longer available

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Drop arm shaft (Replaces washer K19484) 1/2"

1шт.

35

K914138

GASKET

- steering box

1шт.

36

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Steering box to gearbox cover (Replaces bolt K600414) Hex, 3/8"-16 x 2 3/4", G5

2шт.

37

K622042

RING

DOWEL - ring, steering box to gearbox cover

2шт.

38

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, Steering to gearbox cover (Replaces bolt K600410)

2шт.

39

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, steering to gearbox cover (Replaces bolt K600404)

2шт.

492-11038

LOCK WASHER,3/8"

steering to gearbox cover (Replaces washer K19482) 3/8"

6шт.

Выбрано товаров: 58
