(4-28) - WINDSCREEN WIPER, WASHER AND SWITCHES, 885LP TRACTORS

Запчасти Case IH 885 (4-28) - WINDSCREEN WIPER, WASHER AND SWITCHES, 885LP TRACTORS (04) - ELECTRICAL SYSTEMS

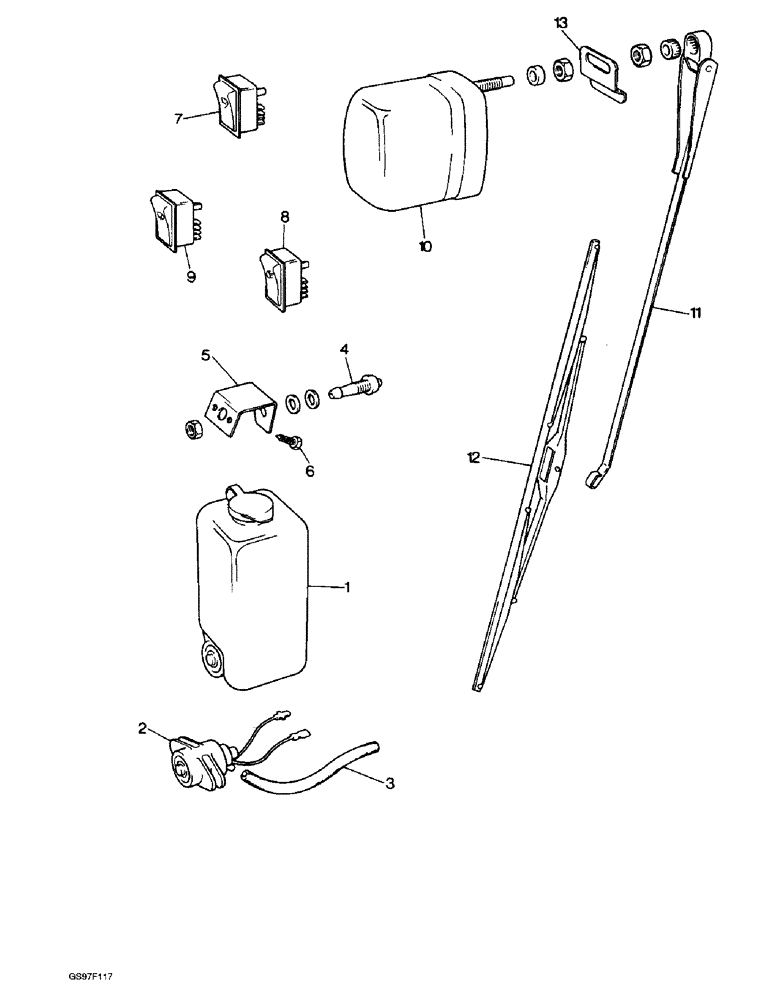

Схема запчастей Case IH 885 - (4-28) - WINDSCREEN WIPER, WASHER AND SWITCHES, 885LP TRACTORS (04) - ELECTRICAL SYSTEMS
8
4
11
3
12
5
2
1
7
6
9
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K260097

FILTER SCREEN

WASHER ASSEMBLY - windscreen, complete, Sekura 940.015, no longer available, Includes: Ref. 2 - 4

1шт.

2

K965599

MOTOR, ELECTRIC

MOTOR - Sekura 940.021, no longer available

1шт.

3

K965600

HOSE

- Sekura 940.023, no longer available

1шт.

4

K965601

NOZZLE CAP

NOZZLE - Sekura 940.026, no longer available

1шт.

5

K260098

BRACKET

- nozzle, Sekura 414.091, no longer available

1шт.

6

K965564

SCREW

- self-tapping, M5 x 12 mm, Sekura 916.213, no longer available

1шт.

7

K965616

SWITCH

- windscreen washer, Sekura 945.238, no longer available

1шт.

8

K965615

SWITCH

- rear flood lamp, Sekura 945.237, no longer available

1шт.

9

K965614

SWITCH

- windscreen washer, Sekura 945.236, no longer available

1шт.

K260008

WINDSHIELD

WIPER ASSEMBLY - windscreen, Sekura 41.583, no longer available, Includes: Ref. 11 - 12 and Motor

1шт.

K965597

WIPER

MOTOR - wiper, Sekura 940.011, no longer available

1шт.

11

K260099

WIPER

ARM - wiper, Sekura 940.002, no longer available

1шт.

12

K260100

WIPER

BLADE - wiper, Sekura 940.014, no longer available

1шт.

13

K965446

WINDOW

CLIP - front window, Sekura 20.079, no longer available

1шт.
