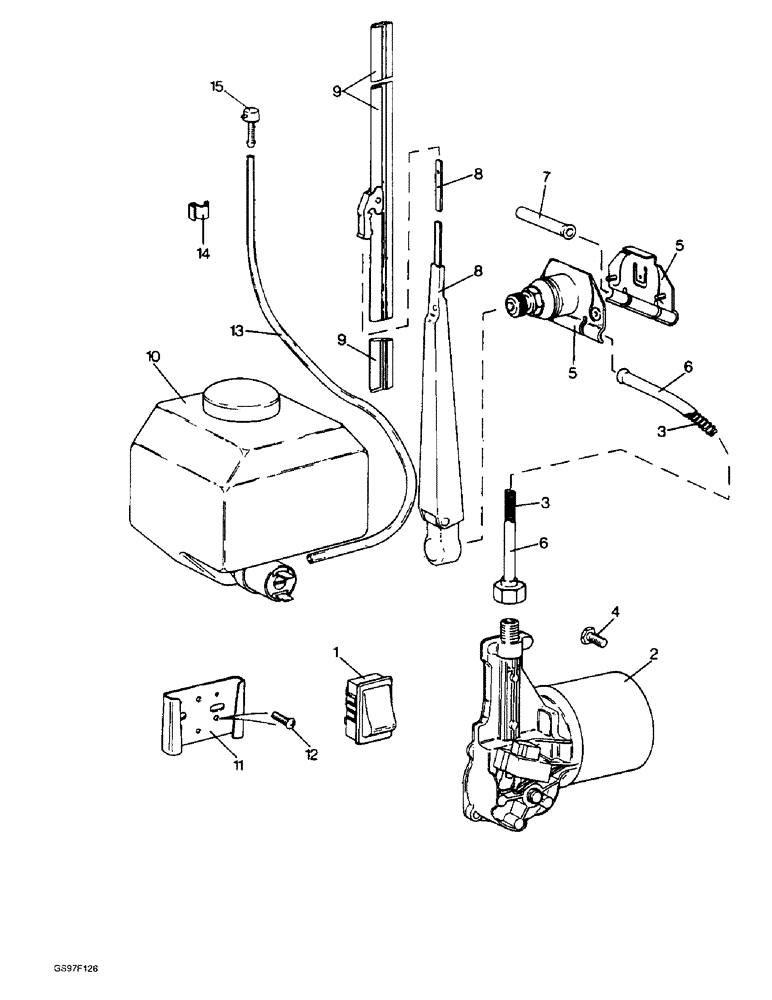

Запчасти Case IH 885 (4-26) - WINDSCREEN WIPER AND MOTOR, 885Q AND 885QH TRACTORS (04) - ELECTRICAL SYSTEMS

1

K954506

SWITCH

- windscreen wiper/washer, Lucas 54330801, tractor serial number 11010300 and after, no longer available

1шт.

1

K691923

SWITCH

- windscreen wiper, Lucas 39299, tractor serial numbers prior to 11010300, no longer available

1шт.

2

K951518

WIPER MOTOR

MOTOR ASSEMBLY - wiper, Lucas 54071929, no longer available, Includes: Ref. 3

1шт.

3

K965043

CABLE

- drive, wiper, no longer available

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch (Replaces bolt K602735)

2шт.

K626662

WASHER

- flat, 1/4 inch (Replaces washer K19470)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut K607043)

1шт.

5

K951519

WHEEL

BOX - wheel, Lucas LT28894-72925, no longer available

1шт.

6

K951516

DRIVE

TUBE - drive, no longer available

1шт.

7

K691917

TUBE

EXTENSION - drive tube, no longer available

1шт.

8

K955664

WIPER

ARM - wiper, tractor serial number 11010300 and after, no longer available

1шт.

8

K950923

ARM

- wiper, tractor serial numbers prior to 11010300, no longer available

1шт.

9

K955665

WIPER

BLADE - wiper, tractor serial number 11010300 and after, no longer available

1шт.

9

K950924

BLADE

- wiper, tractor serial numbers prior to 11010300, no longer available

1шт.

10

K954271

RESERVOIR

- windscreen washer, includes pump, tractor serial number 11010300 and after, no longer available

1шт.

11

K954272

MOUNTING PARTS

BRACKET - mounting, reservoir, tractor serial number 11010300 and after, no longer available, no longer available

1шт.

12

K614943

SCREW

- No. 10 NF x 3/8 inch, tractor serial number 11010300 and after

3шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Tractor S/N 11010300 and after (Replaces washer K626340) #10

3шт.

225-14210

NUT,#10-32

Tractor S/N 11010300 and after (Replaces nut K617080) #10-32

3шт.

13

K954274

TUBE

- plastic, 4 mm x 85 inch (2159 mm) long, tractor serial number 11010300 and after, no longer available

1шт.

14

K625020

CLIP

- pipe, tractor serial number 11010300 and after, no longer available

3шт.

15

K954273

JET

- windscreen washer, tractor serial number 11010300 and after, no longer available

1шт.
