Запчасти Case IH 885 (4-24) - ALTERNATOR, AC DELCO (04) - ELECTRICAL SYSTEMS

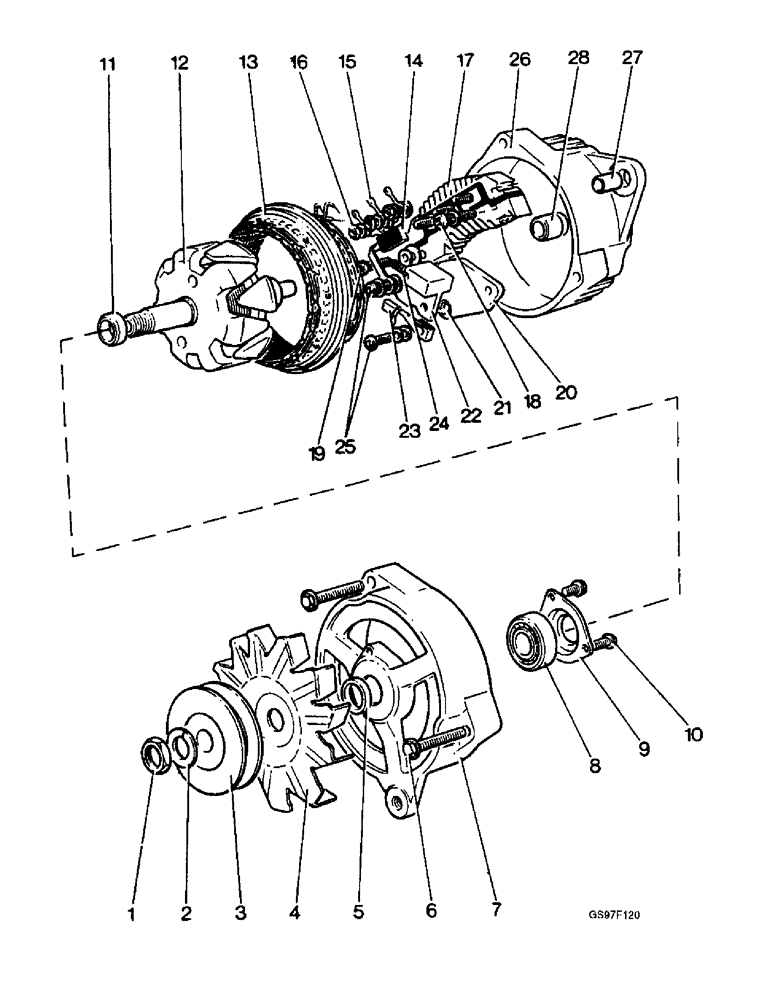

Схема запчастей Case IH 885 - (4-24) - ALTERNATOR, AC DELCO (04) - ELECTRICAL SYSTEMS
28
7
15
16
1
17
26
23
3
20
4
5
14
6
13
19
2
27
21
11
12
18
9
24
8
10
25
22

Артикул

Название

Примечание

Количество

K956425

ALTERNATOR

ALTERNATOR - AC Delco 7982952 (Replaces alternator assembly K953785)

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN K956425

1шт.

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

BOLT, , Used with alternator assembly K956425 Hex, M8 x 20, 8.8

1шт.

K953785

ALTERNATOR

ALTERNATOR ASSEMBLY - AC 7982952, no longer available, order alternator K956425 and bolt 614-8020, Includes: Ref. 1 - 28, Block, and Clip

1шт.

K956426

ALTERNATOR

Alternator

1шт.

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

104020A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 26 AMP Alternator

1шт.

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

1

K965050

NUT

NUT - pulley retaining, AC 7982561, no longer available

1шт.

2

R16171

SPRING WASHER

WASHER - spring (Replaces washer K965051)

1шт.

3

K953787

PULLEY

SPARE PART PULLEY - alternator, AC 7982775

1шт.

4

K953786

FAN

FAN - alternator, AC 7982515

1шт.

5

K965052

COLLAR

COLLAR - outer, AC 7982701, no longer available

1шт.

6

K965053

BOLT

BOLT - through, AC 7982619, no longer available

3шт.

K965054

FRAME

FRAME ASSEMBLY - drive end, AC 7982954, Includes: Ref. 7 - 9

1шт.

7

K965054

FRAME

FRAME - drive end, AC 7982668 (Replaces frame K965056)

1шт.

8

K965058

BALL BEARING

BEARING - ball, AC 7982956, no longer available

1шт.

9

K965059

RETAINER

SPARE PART PLATE - retainer, AC 1955495, no longer available

1шт.

10

177-131

BOLT (MACHINE),Sl Fil Hd, #10 - 32 x 1/2"

SCREW - retainer plate, AC 120216, no longer available (Replaces screw K965060)

3шт.

11

K965061

COLLAR

COLLAR - inner, AC 7982597, no longer available

1шт.

12

K965062

ROTOR

ROTOR ASSEMBLY - AC 7982522, no longer available

1шт.

13

K965064

STATOR

STATOR ASSEMBLY - AC 7982511, no longer available

1шт.

14

K965065

DIODE

DIODE - trio, AC 3472312, no longer available

1шт.

15

K965078

TERMINAL CONNECTOR

TERMINAL - positive, AC 7982880, no longer available

1шт.

16

K965063

NUT

NUT - hex, AC 11010122, no longer available

3шт.

17

K965070

CONTACT

INSULATOR - includes rectifier bridge, AC 7982716

1шт.

18

K965066

SCREW

SCREW - hex, AC 7982711, no longer available

1шт.

19

K965067

SCREW

SCREW - hex, AC 7982563, no longer available

1шт.

K965068

WASHER

WASHER - flat, AC 862106, no longer available

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, (Replaces washer K965069) #8

3шт.

20

K965077

REGULATOR

REGULATOR - AC 7982685

1шт.

21

K965076

SCREW

SCREW - hex, regulator mounting, AC 7982594, no longer available

1шт.

K965072

BRUSH HOLDER

HOLDER, BRUSH HOLDER ASSEMBLY - brush, AC 7982589, Includes: Ref. 22 - 24

1шт.

22

K965075

HOLDER

HOLDER - brush, AC 7982587, order brush holder assembly K965072

1шт.

23

K965073

TERMINAL CONNECTOR

BRUSH - AC 7982543, order brush holder assmbly K965072

2шт.

24

A47989

SPRING

SPRING - brush holder (Replaces spring K965074)

2шт.

25

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, AC 1876681 (Replaces screw K965071)

2шт.

K965081

FRAME

FRAME ASSEMBLY - slip ring end, AC 7982861, Includes: Ref. 26 and 27

1шт.

26

K965082

FRAME

FRAME - slip ring, AC 7982687, no longer available

1шт.

27

K965083

BUSHING

BUSHING - AC 7982534

1шт.

28

K965084

ROLLER

BEARING - roller, AC 7982870

1шт.

K965079

BLOCK

BLOCK - terminal

1шт.

K965080

CLIP

CLIP - socket, no longer available

1шт.

Выбрано товаров: 45
